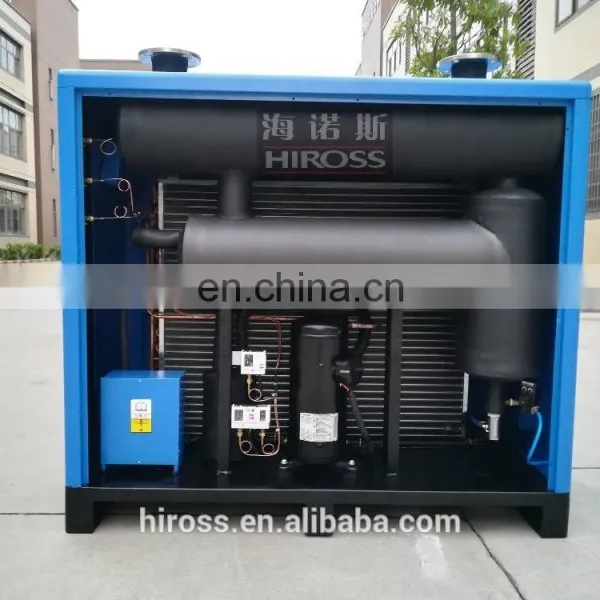

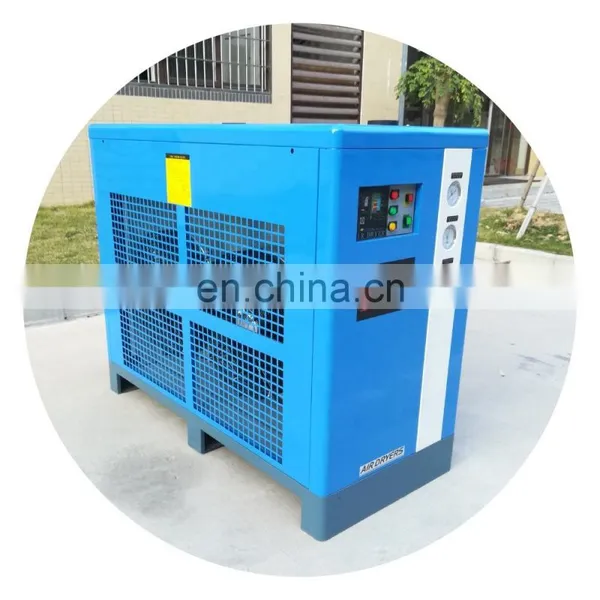

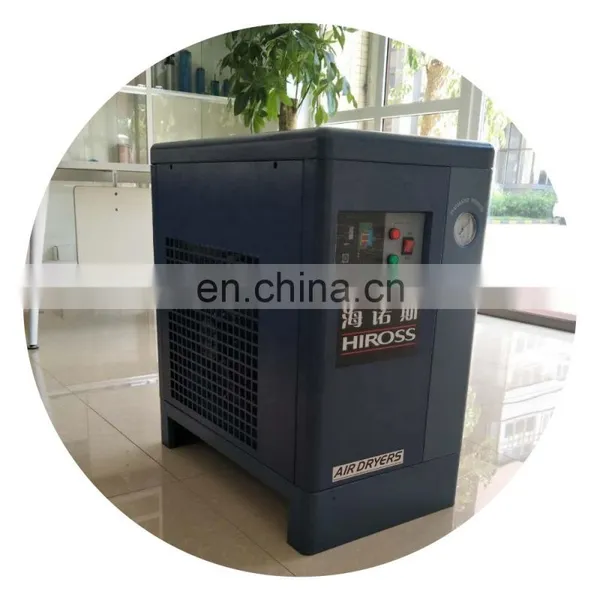

HIROSS 75HP Industrial refrigeration Air Dryer for Air Compressor
- 1000 per Month
- T/T Credit Card
You May Like
-
Air cooling refrigerant air dryer with eco-friendly refrigerant
-
29m3/min Oil Free Air Compressor Used Refrigerated Compressed Air Dryer
-
Refrigerated Air Dryer for Screw Air Compressor
-
Eco-friendly compressed refrigerated air dryer for air compressor
-
HIROSS 11Nm3/min Refrigerated Air Dryer for Air Compressor
-
35CFM Refrigerated Air Cooling Air Dryer for Compressor
Product Description
Air Cooling Refrigerated Air Dryer for Air Compressor
Inlet Air Temperature: ≤80℃ or 176 ℉
Operating Temperature: ≤40℃ or 104 ℉
Freezing Medium (Refrigerant): R-22
Pressure Dew Point: 2 ~ 10℃ or 35.6 ~ 50 ℉
Offer ISO Standard Air Quality
Type: Air Cooling
Time Proven Design:
Precise design of Copper Tube Heat Exchanger increase the heat exchange areas and efficiently drier high pressure air to standard requested low pressure dew point.
Static Condenser Design: Low Vibration, quiet operation and trouble free.
Energy Saving Design:
Recycle cold Energy from evaporator to heat exchanger, Save power consumption.
Ease of Monitoring:
Electronic(Automatic)Drain Valve.
Safety Protection Systems for frost, overheat and Systems Alarm and Stop for Errors and Overworking. Expand Machine Life.
Best Compressor Brands: Panasonic, Copeland, Taikang.
Model | Capacity (Nm^3/Min | Applicable Air Compressor (HP) | Power Consumption (KW) | Air Entrance Diameter | Unit Size (mm) (L*W*H) | Power | Weight (Kg) |
HR-10AC | 1 | 5 | 0.65 | G1'' | 650*400*600 | 220V/50Hz | 40 |
HR-15AC | 1.5 | 10 | 0.75 | G1'' | 700*400*690 | 220V/50Hz | 48 |
HR-23AC | 2.3 | 15 | 0.85 | G1'' | 700*400*690 | 220V/50Hz | 56 |
HR-28AC | 2.8 | 20 | 1 | G1'' | 780*400*780 | 220V/50Hz | 68 |
HR-38AC | 3.8 | 30 | 1.35 | G1.5'' | 930*500*850 | 220V/50Hz | 125 |
HR-55AC | 5.5 | 40 | 1.4 | G1.5'' | 930*500*850 | 220V/50Hz | 135 |
HR-69AC | 6.9 | 50 | 1.7 | G2'' | 980*540*910 | 220V/50Hz | 158 |
HR-86AC | 8.6 | 60 | 2.1 | G2'' | 980*540*910 | 220V/50Hz | 160 |
HR-110AC | 11 | 75 | 2.6 | G2.5'' | 1080*600*1000 | 220V/50Hz | 198 |
HR-150AC | 15 | 100 | 3.6 | G3'' | 1220*680*1160 | 380V/50Hz | 225 |
HR-180AC | 18 | 125 | 4 | G3'' | 1220*680*1160 | 380V/50Hz | 240 |
HR-220AC | 22 | 150 | 5 | G3'' | 1400*680*1200 | 380V/50Hz | 280 |
HR-250AC | 25 | 175 | 5.3 | G3'' | 1400*680*1240 | 380V/50Hz | 300 |
HR-290AC | 29 | 200 | 5.5 | G4'' | 1600*850*1320 | 380V/50Hz | 350 |
HR-350AC | 35 | 250 | 6 | G4'' | 1600*850*1320 | 380V/50Hz | 380 |
HR-450AC | 45 | 300 | 8.5 | DN100 | 1650*900*1500 | 380V/50Hz | 480 |
HR-550AC | 55 | 350 | 9.5 | DN100 | 1700*1000*1550 | 380V/50Hz | 610 |
HR-650AC | 65 | 400 | 10.5 | DN125 | 2200*1150*1600 | 380V/50Hz | 720 |
Hiross (Zhangzhou) Industrial Machinery Co.,Ltd, has specialized in Compressed Air Drying and Purifying Equipment for more than 15years,is a professional manufacturer engaged in the research, development, production, sale and service of refrigerated air dryer,desiccant air dryer,air filter,air filter element,dehumidifier,and other accessories.
We are located in Zhangzhou City with convenient transportation access,only 1 Hour distance to Xiamen Port. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In recent years, our company has obtained I S O 9 0 0 1,C E,G C C A certificates. Selling well in all cities and provinces around China, Our products are available in 30 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, UK, Mexico, Spain, Serbia,Italy, Finland, Australia, Philippines, Pakistan, Thailand, Indonesia, India,Africa.Our products have been widely used in kinds of industry including petroleum, chemical, electric power, food, medical, biological pharmaceutical,textile industry.We also welcome OEM and ODM orders.
