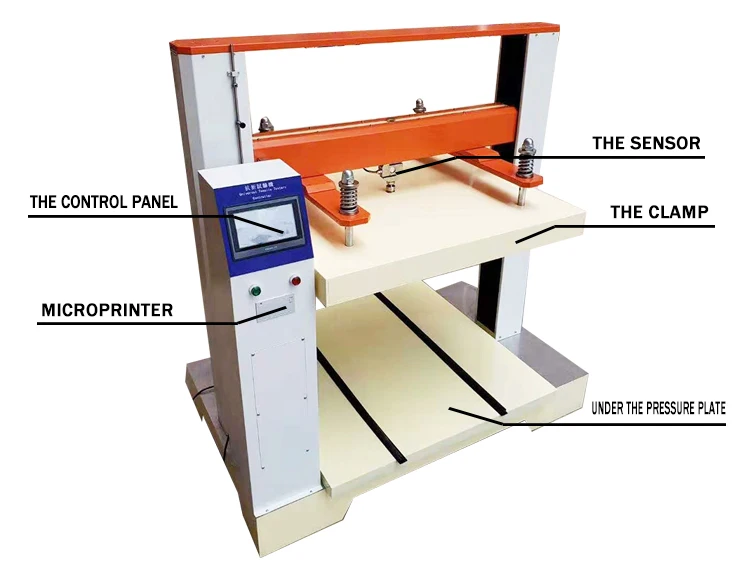

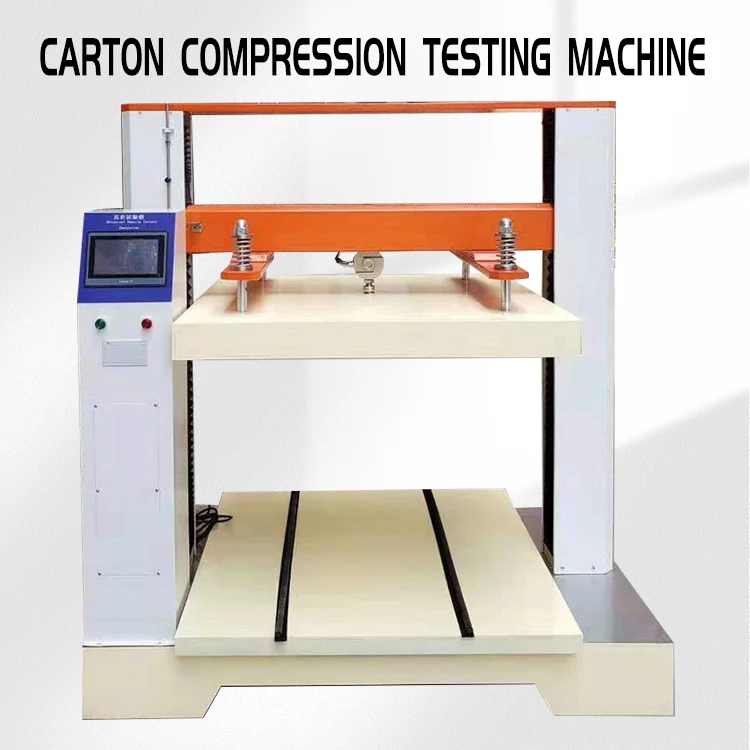

The basic equipment (packaging test equipment) for the testing of the compression strength of corrugated boxes is applicable to the compression strength test, compliance test and stacking strength test of various types of corrugated boxes.
Item | Description |
Max. Force | 2000 kg (20KN) |
Load cell | 1 load cell for highest accuracy |

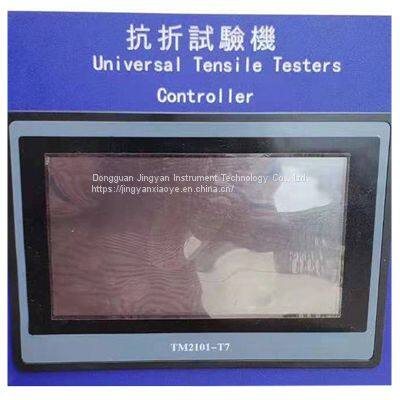

Control system | Windows 7, RS-232 interface |
Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Load cell Resolution | 1/250,000 |
Load Precision | within ±0.25% |
Parallelism of Platens | Parallel within ±2.5mm |
Effective test area | 800*800*800MM |
Test speed | 10 ±3mm/min (0.01~200mm/min adjustable) |
Software | TM 2101 |
Data display | Load, displacement, speed, loading rate and elapsed time |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
