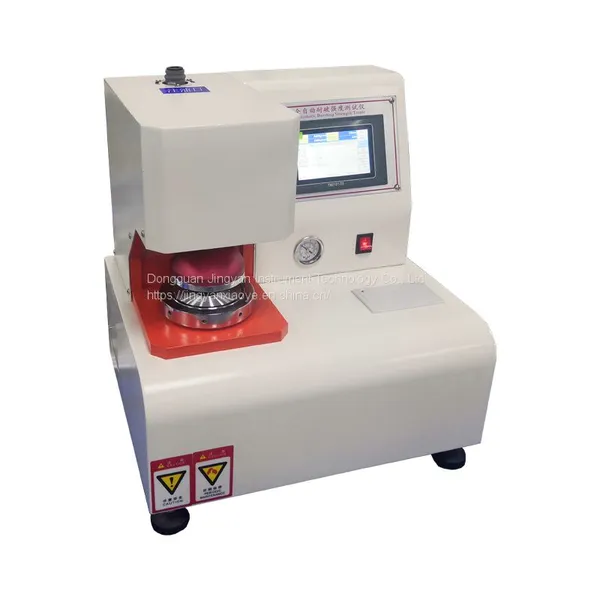

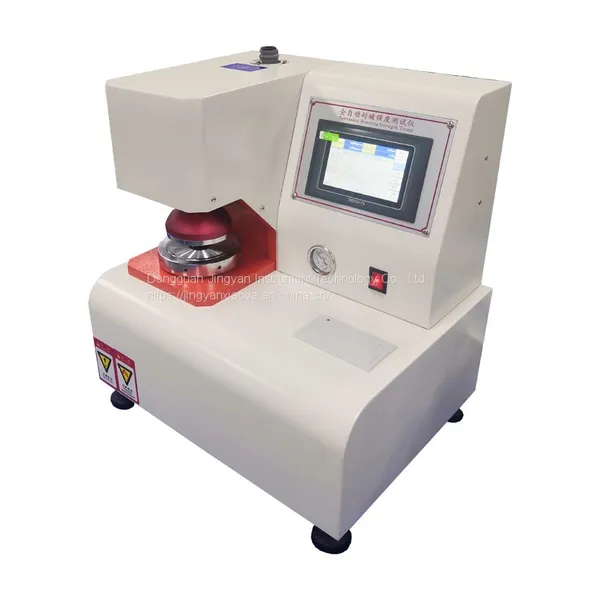

Help CenterAutomatic Carton Bursting Strength Test Machine Mullen Bursting Strength Testing Machine
Related Products
-
Wholesale Carton Bursting Strength Testing Equipment Paper Bursting Strength TesterUS$ 1500 - 2000MOQ: 1 Set -
High Quality Paper Testing Instrument Paperboard Compression Testing Machine Paperboard TesterUS$ 1300 - 2000MOQ: 1 Set
-
Most Popular Vibration Testing Machine Mechanical Box Vibration Test Machine Package Carton Vibration Testing EquipmentUS$ 800 - 1500MOQ: 1 Set
-
PLC Control Corrugated Board Burst Tester Corrugated Box Durability Testing Machine Rupture Testing MachineUS$ 1300 - 2000MOQ: 1 Set
-
Best Quality Carton Box Compression Test Machine Bursting Strength TesterUS$ 1300 - 2000MOQ: 1 Set
Application :
Meet the relevant standards, the use of pneumatic clamping samples, liquid crystal display, for cardboard, corrugated cardboard and other sheet-like plate determination of the bursting.
Standard :ISO 2759 , GB/T 1539 , QB/T 1057
Test Range |
250~2500kPa |
Pressure Speed |
170±15ml/min |
Specimen Clamping Force |
>690kPa |
Motor |
1/4HP |
Dimension |
445mm×425mm×525mm |
Net Weight |
65Kg |
Air Pressure |
0.5MPa-0.7MPa |
voltage |
120W |
Power Supply |
A220V±10%, 50Hz |
Hydraulic oil |
Silicone oil |
size |
430*530*520mm |
Clip ring material |
stainless steel |
Application :
Meet the relevant standards, the use of pneumatic clamping samples, liquid crystal display, for cardboard, corrugated cardboard and other sheet-like plate determination of the bursting.
Standard :ISO 2759 , GB/T 1539 , QB/T 1057
Test Range |
250~2500kPa |
Pressure Speed |
170±15ml/min |
Specimen Clamping Force |
>690kPa |
Motor |
1/4HP |
Dimension |
445mm×425mm×525mm |
Net Weight |
65Kg |
Air Pressure |
0.5MPa-0.7MPa |
voltage |
120W |
Power Supply |
A220V±10%, 50Hz |
Hydraulic oil |
Silicone oil |
size |
430*530*520mm |
Clip ring material |
stainless steel |
