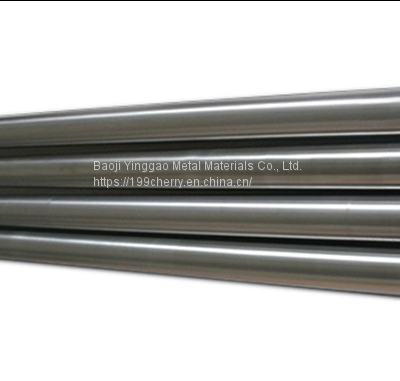

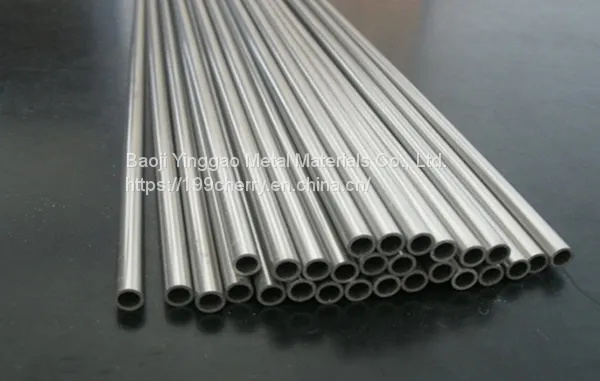

Pure Mo1 Molybdenum tube
Specifications:
Product name: Molybdenum tube
Brand: TopTiTech
Origin: Baoji, China
Material: Mo >99.95%
Density: 9.2~10.2g/cc
Grade: Mo1,Mo2,Mo3,TZM
Standard: ASTM B387
Surface Treatment: Annealed State, Electrolytic Polish
Characteristic: Certificate: ISO9001:2005
Product Feature:
1. High melting point, high strength, melting point: 2610 °C, boiling point:5560 °C;
2. Outstanding thermal conductivity;
3. Excellent resistance to oxidation at high temperatures;
4. Excellent resistance to electrochemical corrosion;
5. Long service life;
6. Dimensions and tolerance(According to clients’ requirements):
Density |
Outer Diameters |
Length |
Wall Thickness |
|
|
Forged Molybdenum Tube/Pipe |
≥9.9g/cm3 |
4-150mm |
≤800mm |
≥1.0mm |
|
Sintered Molybdenum Tube/Pipe |
≥9.7g/cm3 |
100-500mm |
≤800mm |
≥5.0mm |
Composition:
Grade |
The impurity content is not more than % |
|||||||
Fe |
Ni |
Al |
Si |
Mg |
C |
N |
O |
|
Mo-1 |
0.01 |
0.005 |
0.002 |
0.01 |
0.005 |
0.01 |
0.003 |
0.008 |
Mo-2 |
0.01 |
0.005 |
0.005 |
0.01 |
0.005 |
0.01 |
0.003 |
0.02 |
Application:
1. Molybdenum Tube is widely used as the contact materials in silicon controlled rectifier diodes, transistors and thyristors.
2. Molybdenum Tube is used as mounting material for power semiconductor devices.
3. FT—LCD monitor use of molybdenum target tube. And copper indium gallium selenide CIGS and cadmium telluride CdTe coating using two kinds of thin film solar cells of sputtering target rotating pipe. Vacuum furnace heating switches use 25.4 * 998 molybdenum tubes.
