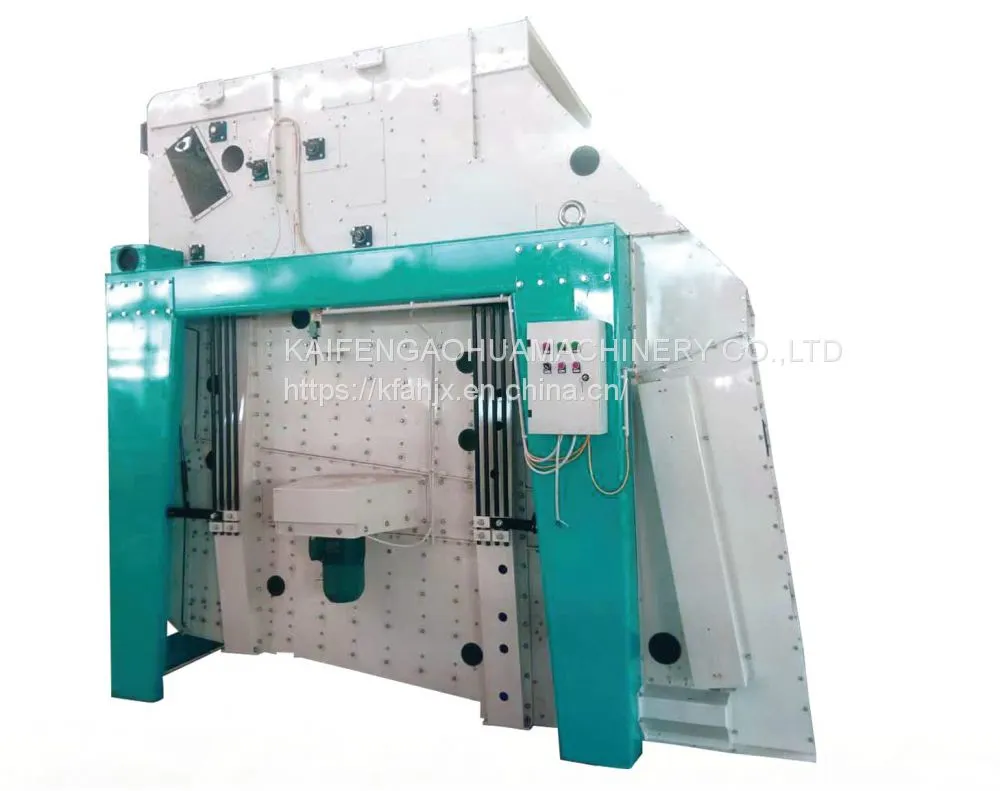

Help CenterCombination Multi-layer Screen
Related Products
Product introduction: It is suitable for cleaning and grading large-scale granular impurities [large and small impurities]. Can be widely used in grain, feed, food, chemical, wine and other industries. The machine is equipped with a powder suction separator system, and the external air net can be used to effectively separate the impurities and dust. It can also be used for the sieve part of the power suction separation system alone.
Product features: large effective sieving area, high output, good cleaning and grading effect, combined suspender suspending the sieve body, stable operation, low noise, small thickness of metal sieve grid, high strength and rigidity, smooth sieve surface, and sieve grid It is convenient and simple to take, the same aperture is interchangeable, the transmission modular structure, the overall replacement, saving maintenance time.
| Specifications |
Maximum throughput [t/h] 【sieve/wheat】 |
Speed【r/min】 | Power [KW] | External suction volume [m3/h] | Weight【KG】 | Dimensions [LxWxH] |
| HZZD150x200/8 | 120 | 300+5 | 3+0.7 | 200 | 6100 | 3462x2445x3892 |
| HZZD200x200/8 | 180 | 300+5 | 3+0.7 | 260 | 7000 | 3462x3945x3892 |
