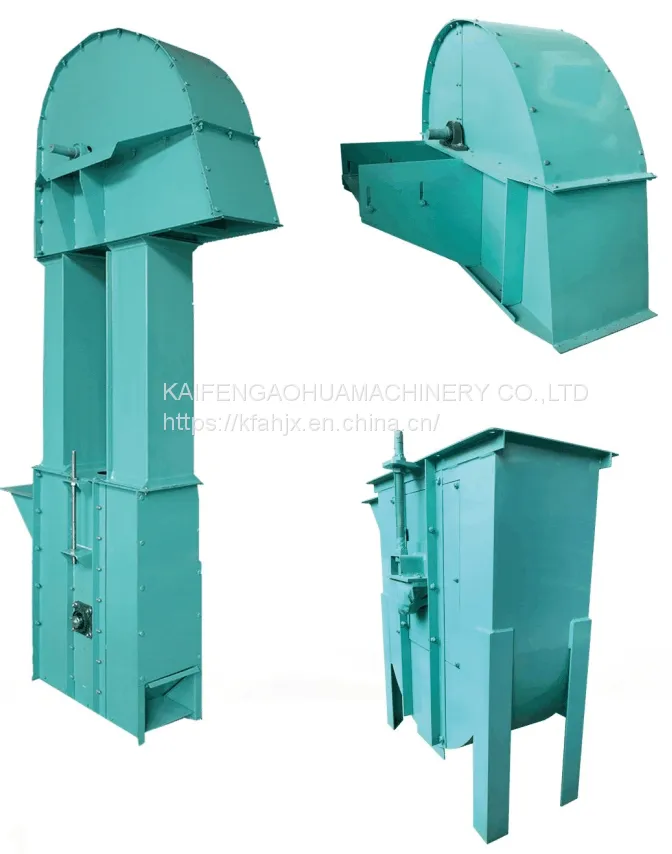

Product introduction: This equipment is a general-purpose bucket elevator that is completely suitable for bulk goods. The special mold presses the reinforced cylinder with multi-layer undercuts. It has high strength and good sealing performance. The surface of the driving head wheel is covered with glue to reduce slippage. Tensioning device, enhanced struggle belt and wear-resistant struggle, adjustable return device, anti-theft runner backstop.
Product features: The main equipment for continuous and vertical conveying of materials, the surface of the driving head wheel is covered with glue to reduce slippage, the striving belt and wear resistance are enhanced, the return device can be adjusted, advanced processing methods, high-quality material selection, electrostatic spraying surface treatment.
| Specifications | Bucket Specifications | Transmission force | Bucket belt line speed [m/s] | Bucket belt line speed [m/s] | Output【t/h】 | Output【t/h】 |
| / | / | / | powder | pellets | Powder r=0.43 | Pellets r=0.75 |
| TDTG26/13 | DQ1311 DS1311 | 9-23 | 0.8-1.2 | 1.2-2.2 | 1.2-2 | 6.5-9.5 |
| TDTG26/18 | DQ1814 DS1814 | 9-23 | 0.8-1.2 | 1.2-2.2 | 2-4.5 | 15-20 |
| TDTG26/23 | DQ2314 DS2314 | 9-23 | 0.8-1.2 | 1.2-2.2 | 5-8 | 16-25 |
| TDTG36/13 | DQ1311 DS1311 | 9-23 | 1.2-1.6 | 1.6-3 | 2-3 | 8-12 |
| TDTG36/18 | DQ1311 DS1311 | 9-23 | 1.2-1.6 | 1.6-3 | 4.5-6 | 16-17 |
| TDTG36/23 | DQ1311 DS1311 | 9-23 | 1.2-1.6 | 1.6-3 | 7-10 | 20-32 |
| TDTG36/28 | DQ2816 DSDS2816 | 9-23 | 1.2-1.6 | 1.6-3 | 8-11 | 25-40 |
| TDTG40/18 | DQ1814 DS1814 | 9-23 | 1.3-1.8 | 1.8-3.3 | 5-7 | 22-34 |
| TDTG50/23 | DQ2314 DS2314 | 11-29 | 1.3-1.8 | 1.7-3.4 | 8-12 | 30-50 |
| TDTG50/28 | DQ2816 DS2816 | 11-29 | 1.3-1.8 | 1.7-3.4 | 9-13 | 40-65 |
| TDTG60/32 | DQ2817 DS2816 | 13-29 | 1.5-2 | 1.8-3.5 | 23-35 | 45-70 |
| TDTG60/38 | DQ3823 DS3621 | 13-29 | 1.5-2 | 1.8-3.5 | 27-38 | 90-140 |
| TDTG60/46 | DQ4723 DS4621 | 13-29 | 1.5-2 | 1.8-3.5 | 32-45 | 120-200 |
| TDTG80/46 | DQ4723 DS4621 | 16-35 | 1.7-2.6 | 2.1-3.7 | 36-58 | 140-240 |
