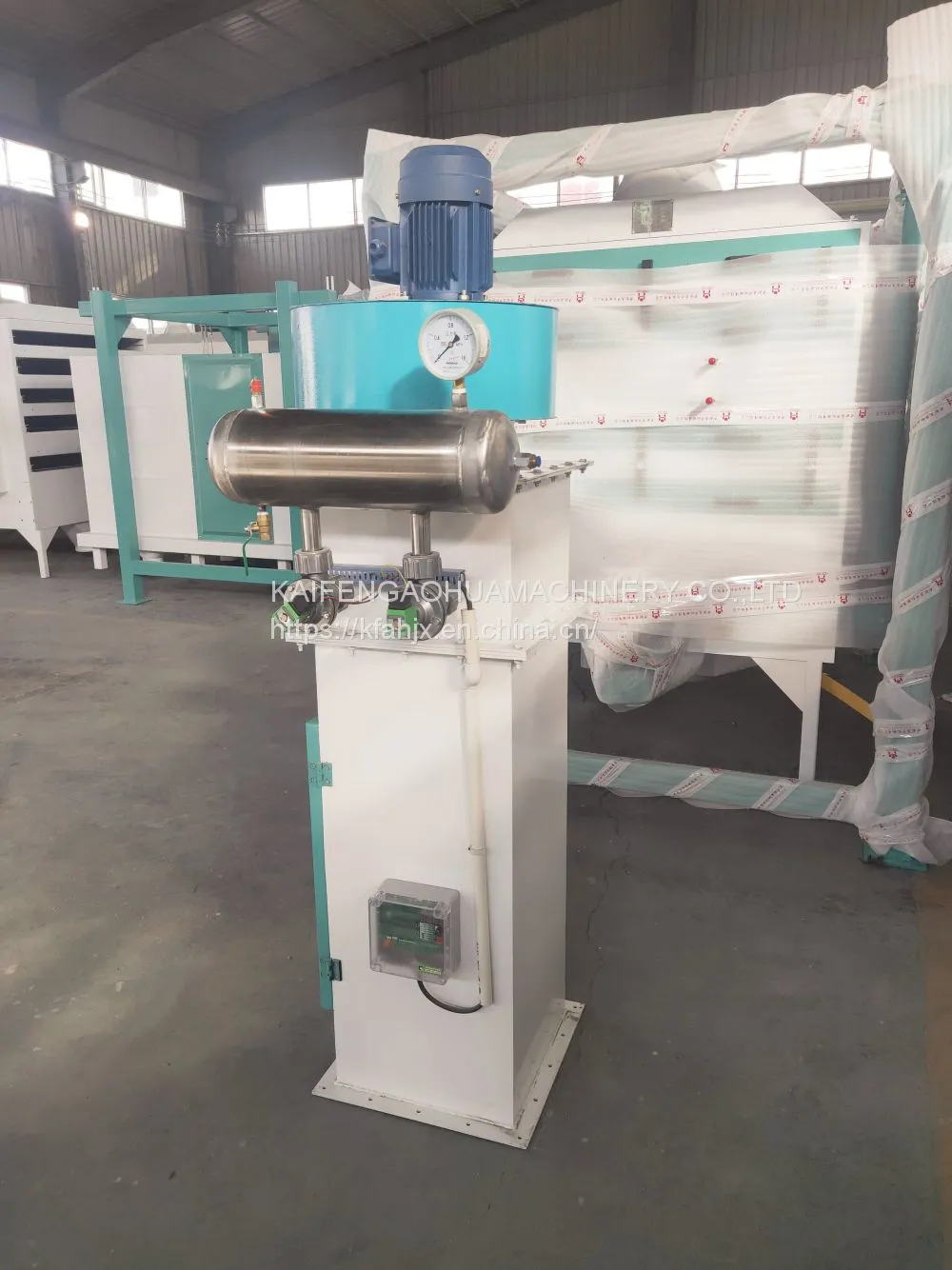

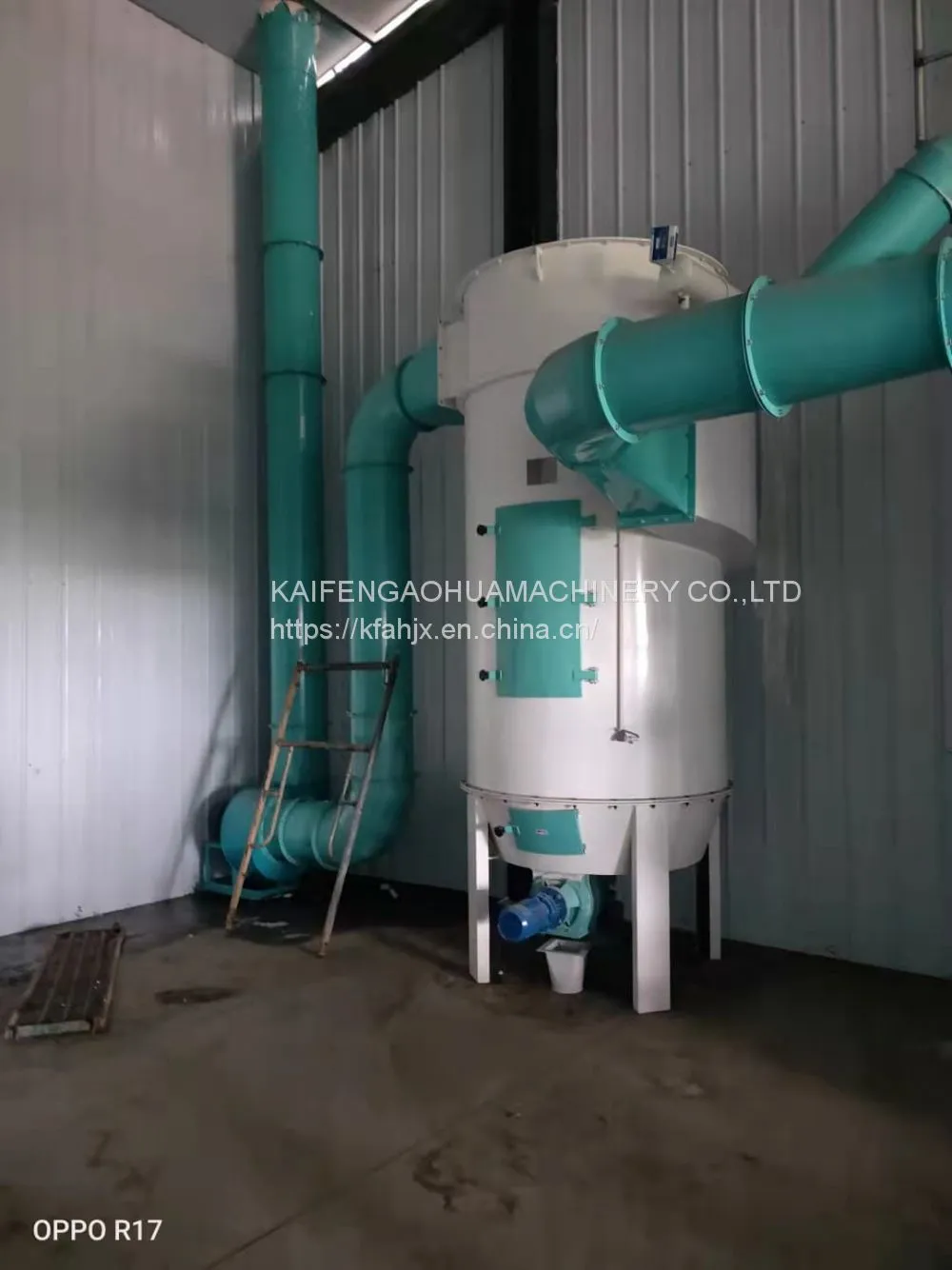

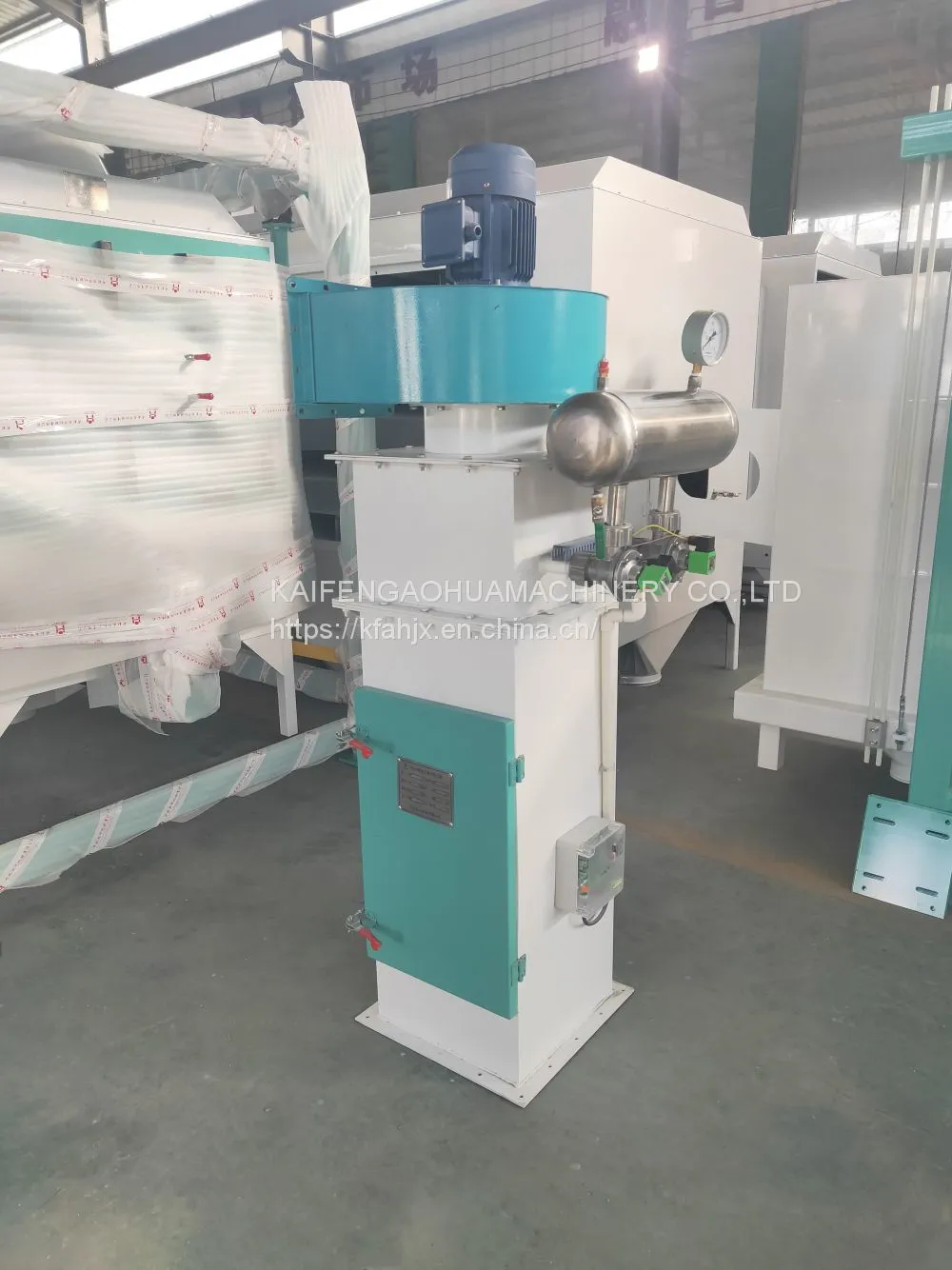

Product introduction: TBLM series low pressure pulse bag filter is a new type of high efficiency dust collector. The round box is convenient for the placement of the equipment, tangential centrifugal feeding can make the dust fall in advance, all solenoid valves are controlled by the computer, and the ash discharge scraper and the air shutoff are driven by belts, which is conducive to the stable use of the equipment. , maintenance is convenient, the use of low pressure air source to blow the filter bag, has the advantages of atmospheric pressure, high efficiency, and can reduce the wear of the filter bag, it is an ideal equipment for environmental protection.
Product features: Dust collectors with various structures and forms are available for users to choose from. The air bag structure design is improved, and the pressure resistance is stronger without air leakage. An independent air inlet box can be added and a cone dust form can be added to effectively improve the cleaning effect.
| Specifications | Filter bag length mm | Handling air volume m3 | Filter area m2 | Closer motor power KW | Scraper motor power KW | Low pressure pump model |
Weight k g A |
Weight kg B |
Weight kg C |
| TBLM-26 | 1800 | 1032-5160 | 17.2 | 0.75 | ZYMB40 | 710 | 573 | 672 | |
| 2000 | 1146-5730 | 19.1 | 0.75 | ZYMB40 | 749 | 663 | 705 | ||
| 2400 | 1380-6900 | 23 | 0.75 | ZYMB40 | 794 | 620 | 130 |
| TBLM-39 | 1800 | 1542-7710 | 25.7 | 0.75 | 1.5 | ZYMB40 | 1030 | 823 | 781 |
| 2000 | 1722-8610 | 28.7 | 0.75 | 1.5 | ZYMB40 | 1080 | 860 | 1025 | |
| 2400 | 2076-10380 | 34.6 | 0.75 | 1.5 | ZYMB40 | 1120 | 915 | 1072 |
| TBLM-52 | 1800 | 2112-10560 | 35.2 | 0.75 | 1.5 | ZYMB40 | 1230 | 998 | 1169 |
| 2000 | 2292-11460 | 38.2 | 0.75 | 1.5 | ZYMB40 | 1500 | 1030 | 1218 | |
| 2400 | 2766-10380 | 46.1 | 0.75 | 1.5 | ZYMB40 | 1700 | 1124 | 1286 |
| TBLM-78 | 1800 | 3090-15450 | 51.5 | 0.75 | 1.5 | ZYMB60 | 1720 | 1387 | 1634 |
| 2000 | 3538-17190 | 57.3 | 0.75 | 1.5 | ZYMB60 | 1800 | 1453 | 1721 | |
| 2400 | 4146-20730 | 69.1 | 0.75 | 1.5 | ZYMB60 | 2000 | 1552 | 1798 |
| TBLM-104 | 1800 | 4416-20580 | 68.6 | 0.75 | 1.5 | ZYMB80 | 2200 | 1640 | 2000 |
| 2000 | 4590-22950 | 76.5 | 0.75 | 1.5 | ZYMB80 | 2500 | 1910 | 2320 | |
| 2400 | 5526-27630 | 92.1 | 0.75 | 1.5 | ZYMB80 | 3000 | 2220 | 2650 |
