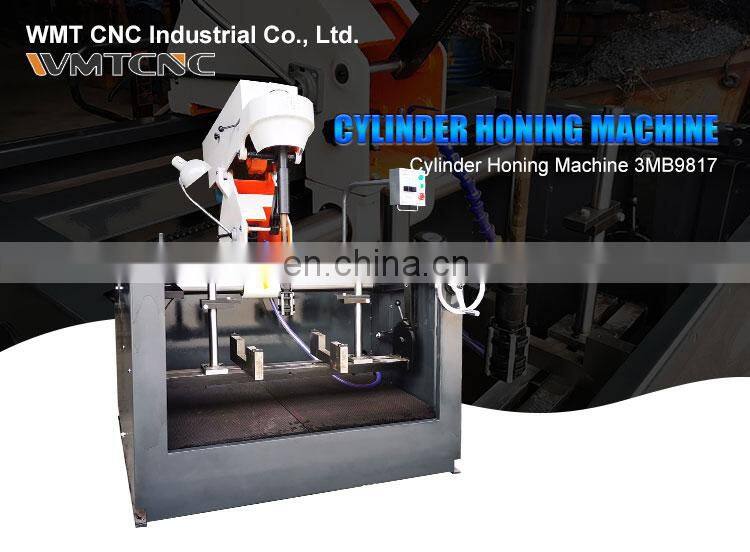

3MB9817 MAX 170mm V-bloks Fixture Hot Sale Vertical Honing Machine With CE Standard
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
T8016A Small Cylinder Boring Machine for MotorcycleNegotiableMOQ: 1 -
T8014A Vertical Type Motorcycle Cylinder Boring Machine From ChinaNegotiableMOQ: 1
-
C9335 Brake Disc Lathe Machine With CE StandardNegotiableMOQ: 1
-
T8210D Con-rod Bushing Boring Machine for Engine RebuildNegotiableMOQ: 1
-
Auto Engine Repairing Cylinder Honing Machine 3MB9817NegotiableMOQ: 1
Features

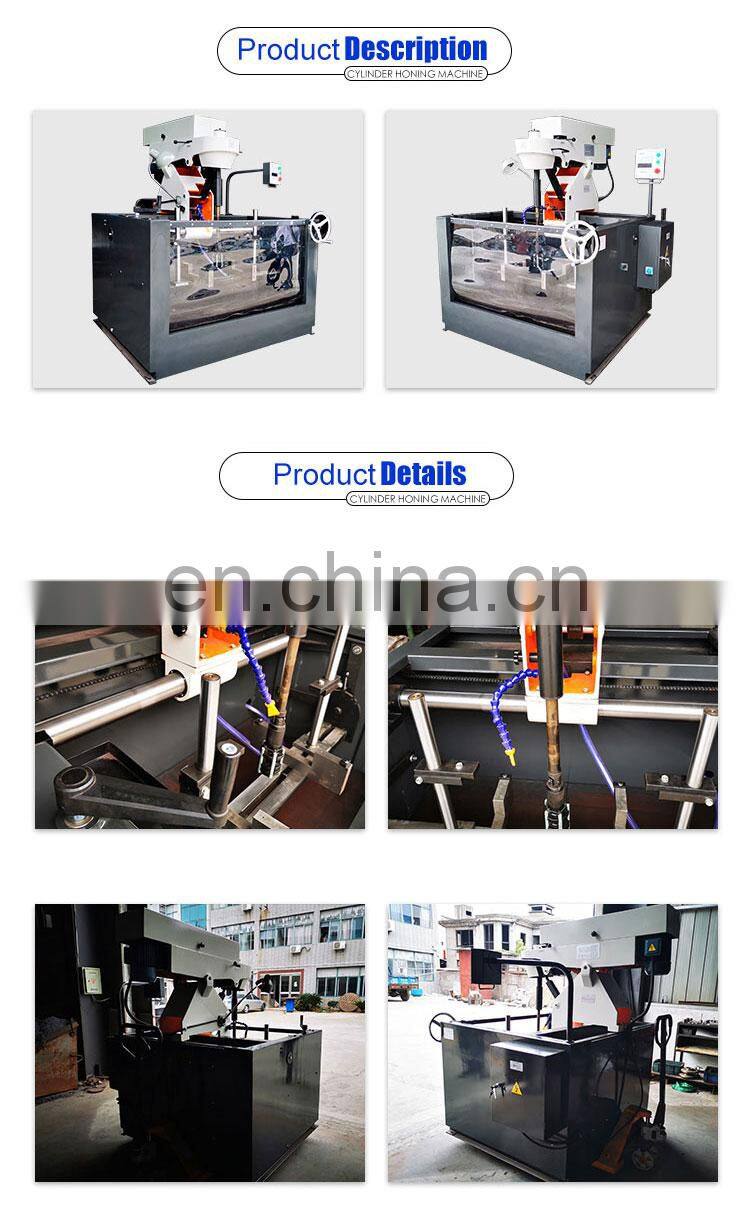

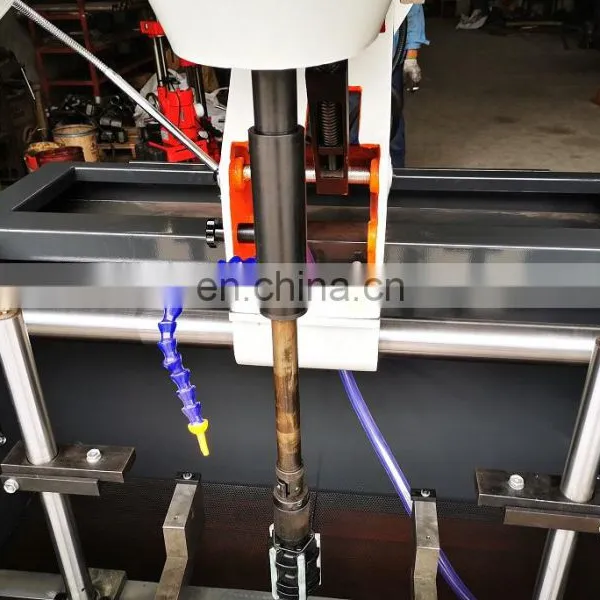

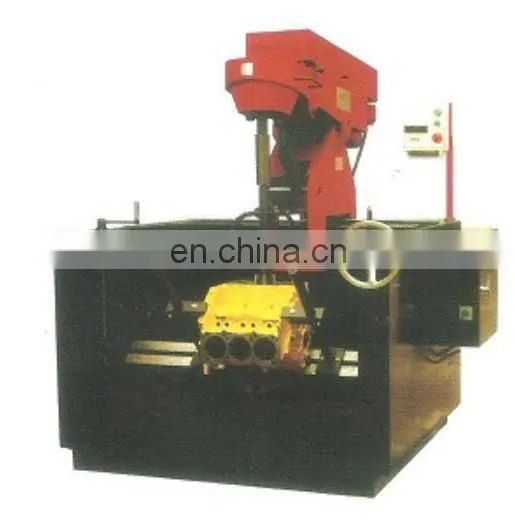

3MB9817 vertical honing machine is mainly used for honing single line engine cylinders and
V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
1.The machine table can shift of the fixture change 0°, 30°and 45°.
2.The machine table is easily up and down manually 0-180mm.
V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
1.The machine table can shift of the fixture change 0°, 30°and 45°.
2.The machine table is easily up and down manually 0-180mm.
3. Reverse precision 0-0.4mm.
4.Select mesh-wire degree 0°- 90° or non-mesh-wire.
5.Reciprocating speed of up and down 0-30m/min.
6.The machine is reliable performance widely use honing, easy operation and high productivity.
7.Good rigidity, amount of cutting.
4.Select mesh-wire degree 0°- 90° or non-mesh-wire.
5.Reciprocating speed of up and down 0-30m/min.
6.The machine is reliable performance widely use honing, easy operation and high productivity.
7.Good rigidity, amount of cutting.
Model |
3MB9817 |
Max diameter of hole honed |
Φ35-Φ170 mm |
Max depth of hole honed |
320 mm |
Spindle speed (4 steps) |
120, 160, 225, 290 mm |
Stork (3 steps) |
35, 44, 65 s/min |
Power of main motor |
1.5 Kw |
Power of cooling pump motor |
0.125 Kw |
Machine working inside cavity dimensions (L x W) |
1400 x 870 mm |
Overall dimensions (L x W x H) |
1640 x 1670 x 1920 mm |
Packing dimensions (L x W x H) |
1850 x 1850 x 2150 mm |
N.W./G.W. |
1000/1200 kg |
