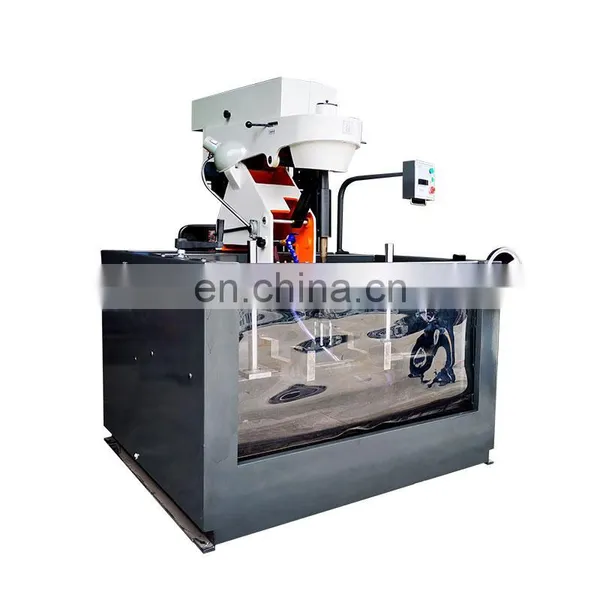

Auto Engine Repairing Cylinder Honing Machine 3MB9817
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Light Type Vertical Cylinder Honer 3MQ9814 Auto Engine Vertical Cylinder Honing Machinefrom ChinaNegotiableMOQ: 1 -
VR 90 Cylinder Head Valve Seat Grinding Machine for SaleNegotiableMOQ: 1
-
T8016A Cylinder Honing Machine Model With CENegotiableMOQ: 1
-
T8014A Cylinder Honing Machine Model With CENegotiableMOQ: 1
-
High Precision Cylinder Boring and Honing Machine T806A With Cheap PriceNegotiableMOQ: 1
Product Description
Cylinder boring machine 3MB9817:
The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motorcycles and tractors and also for other machine element holes.
·The machine table can shift of the fixture change 0°, 30°and 45°.
·The machine table is easily up and down manually 0-180mm.
·Reverse precision 0-0.4mm.
·Select mesh-wire degree 0°- 90° or non-mesh-wire.
·Reciprocating speed of up and down 0-30m/min.
·The machine is reliable performance widely use honing, easy operation and high productivity.
·Good rigidity, amount of cutting.
Item |
Technical Specification |
|
Honing hole diameter |
40-170mm |
|
Maximum depth of honing hole |
320mm |
|
Rotation of main shaft |
120,160,225,290r/min |
|
Stroke of main shaft |
35、44、60s/min |
|
Horizontal motion distance of main shaft |
900mm |
|
Lifting height of machine table |
150mm |
|
Power of main motor |
1.5kw |
|
Voltage |
3～380V |
|
Frequency |
50Hz |
|
Power of cooling pump |
0.125kw |
|
Voltage |
3～380V |
|
Frequency |
50Hz |
|
Overall dimensions (L×W×H) |
1640×1670×1920mm |
|
Weight of machine proper |
820mm |
|
Honing heads |
||
1) MFQ40 |
Φ40~Φ62 |
|
3) MFQ60 |
Φ60~Φ82 |
|
3) MFQ80 |
Φ80~Φ120 |
|
4) MFQ120 |
Φ120~Φ170 |
|
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
