High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine

High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine thumbnail-1
High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine thumbnail-2
High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine thumbnail-3
High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine thumbnail-4
High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine thumbnail-5
High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine photo-1

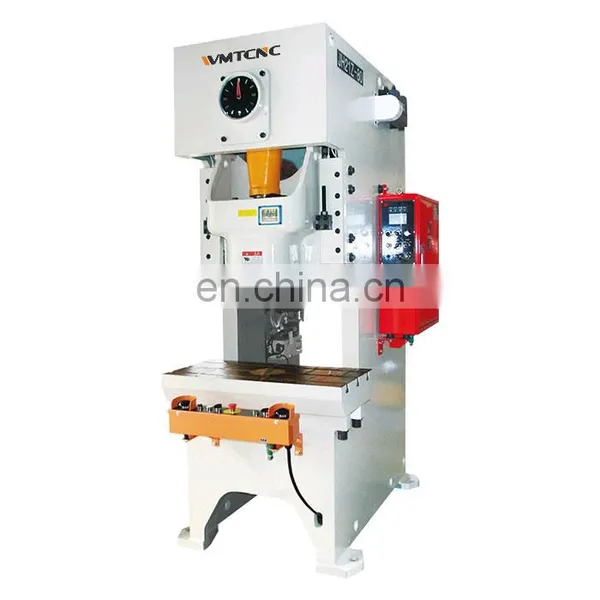

High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine photo-2

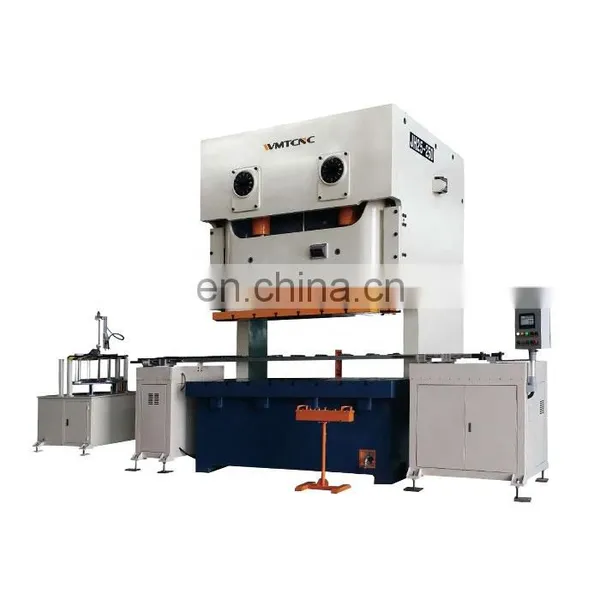

High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine photo-3

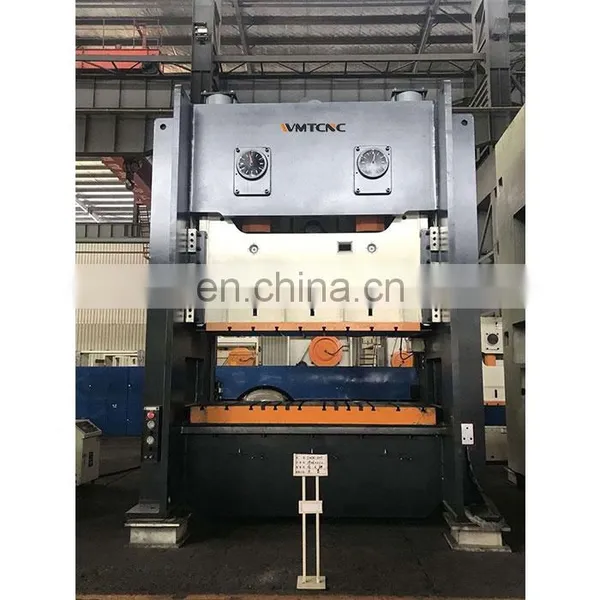

High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine photo-4

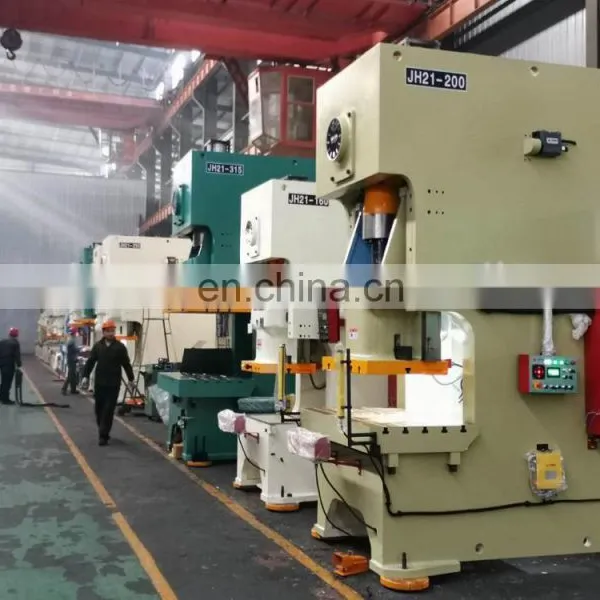

High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Features:
1. This series of press adopts rotating key positive clutch, which has a simple structure and is convenient to operate and maintain,achieving smooth operation, low impact and low noise. 2. J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing(copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing. 3. The 80T level and above press machine all adopt the structure of pneumatic dual balance cylinder, chich has small fluctuation of the balancec force and it balances the slider and the upper die, chich can cause the lathe unstable. And it can also avoide the clsah and noise caused by the converse force of gears in transmission, and avoid accidents cause by the falling of slider when the brake fails or the connecting rod ruptures.
Specification
UNIT
JB23-63
J23-80
J23-100
J23-125
Capacity
KN
630
800
1000
1250
Nominal stroke
mm
7
7
7
8
Slide stroke length
mm
110
120
140
150
Stroke times per minute
spm
40
38
38
38
Max. Die set height
mm
390
440
480
500
Die shut height adjustment
mm
80
90
100
100
Throat depth
mm
310
350
380
390
Distance between uprights
mm
420
450
560
550
Slide bottom size
L-R
mm
400
430
540
540
F-B
mm
360
360
480
480
Stemhole size
Diameter
mm
50
60
60
60
Depth
mm
70
75
75
75
Bolster size
L-R
mm
860
950
1080
1100
F-B
mm
570
650
710
720
Thickness
mm
80
100
120
130
Table hole diameter
mm
180
200
220
240
Max. inclinable angle
°
20
20
15
13
Bolster surface height
mm
850
850
850
860
Over all dimensions
L-R
mm
1500
1715
1790
1790
F-B
mm
1958
2060
2404
2504
Height
mm
2868
3290
3625
3715
Distance between foundation bolts
L-R
mm
920
1010
1130
1110
F-B
mm
1300
1360
1550
1710
Motor power
kw
7.5
7.5
11
11
Weight
kg
5500
7390
10800
12035
Detailed Images
Company profile
FAQ
Q1: How is the warranty? A1: Warranty time is 13 months after BL date. Q2:Can we visit your factory before order? A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3:Do you have a stock? A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs. Q4:What’s the MOQ? A4:One set only. Q5:How about your quality? A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. Q6:Do you have professional engineers? A6:Yes.we have professional engineers and designers. We can provide OEM services. Q7:Can you provide customized machines? A7:Yes, we can design and manufacture according to your specific requirements.
