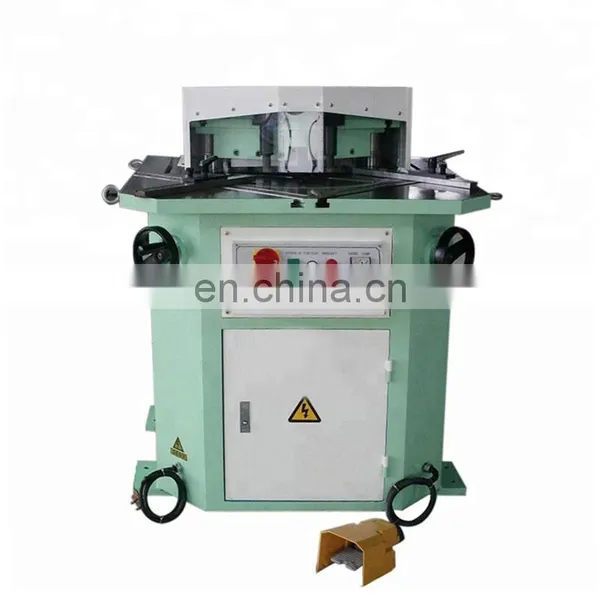

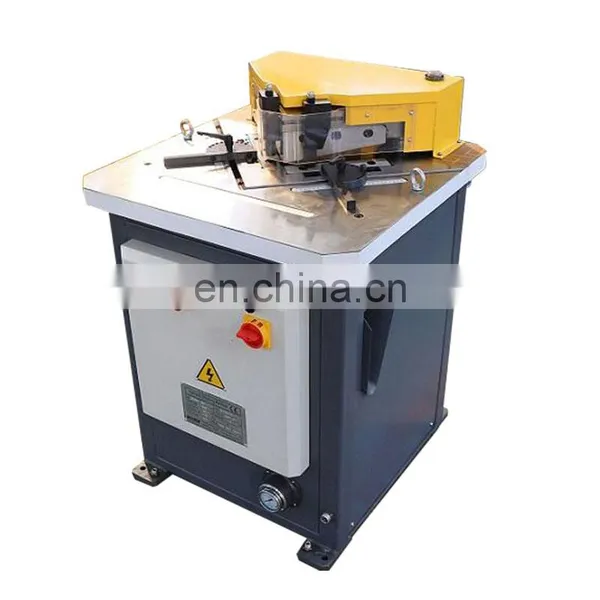

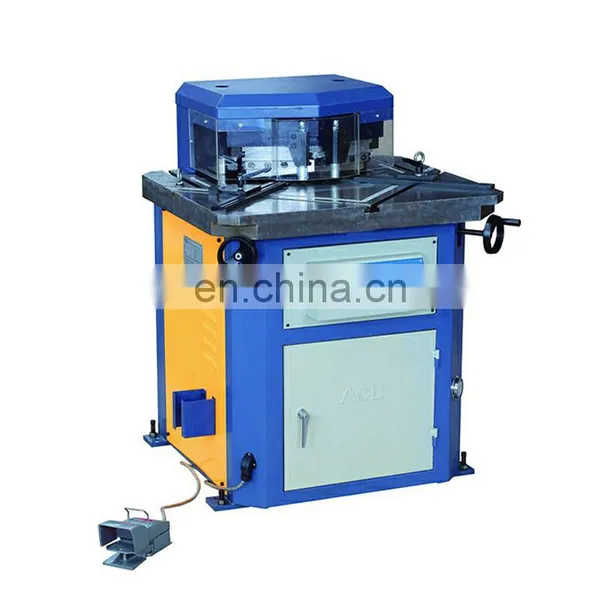

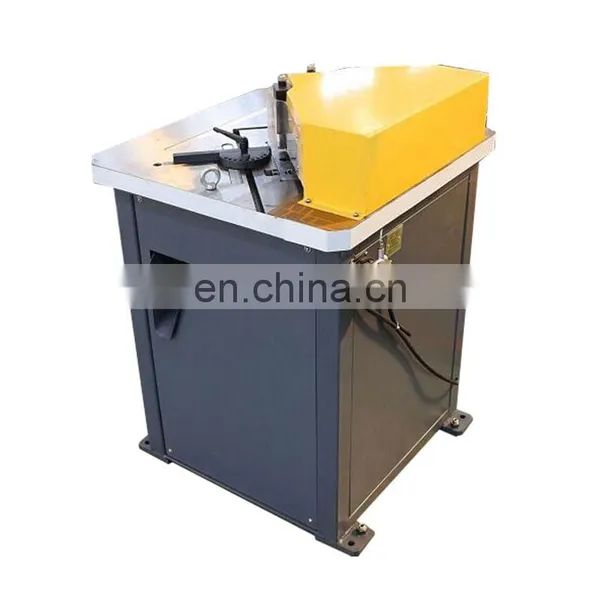

QC28Y-6X200 Hydraulic Angle Notch Cutting Machine From China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HP30 3000 kn Hydraulic Press Machine for SaleNegotiableMOQ: 1 -
Hydraulic Press Machine HP63 6300 kn China Hydraulic Oil Press MachineNegotiableMOQ: 1
-
HP100 100 Ton China Press Machine Hydraulic for SaleNegotiableMOQ: 1
-
HP-20S 20 Ton Manual Oil Press Machine PriceNegotiableMOQ: 1
-
HP-30S 300KN Manual Oil Press MachineNegotiableMOQ: 1

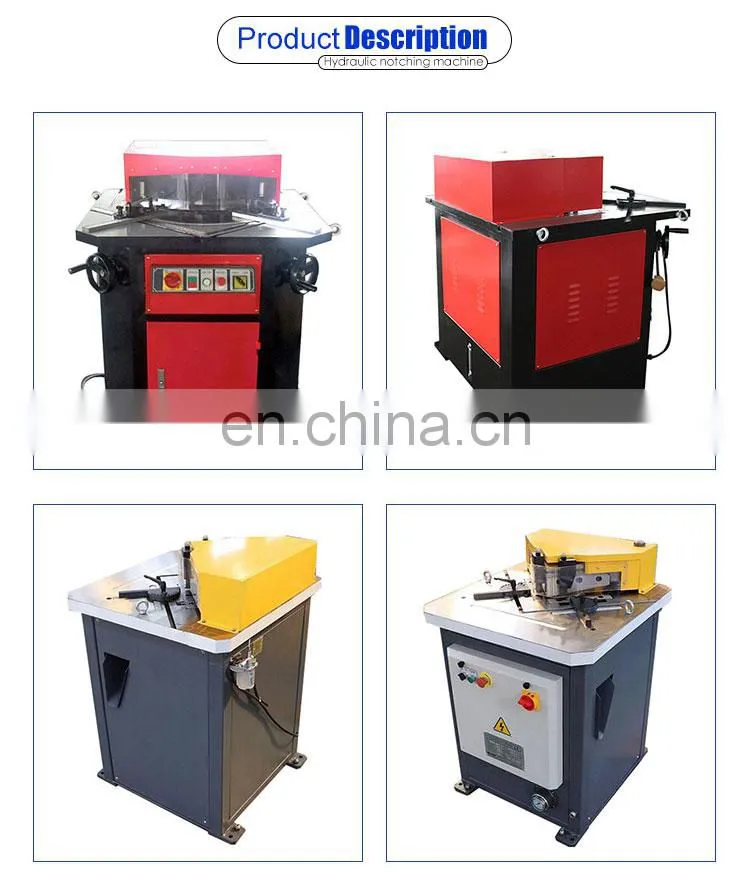

Product Description
Performance
The machine is hydraulic driven and constructed with steel welded plate.Giving a rigid working platform.The machine can be adjusted through a range of 30 to 145 degree.It is suitable for using in various notching industries.
Model |
QC28Y-3X200 |
QC28Y-4X200 |
QC28Y-6X200 |
Max. Notching thickness(mm)-Mild steel |
3 |
4 |
6 |
Max. Notching thickness(mm)-Stainless steel |
1.5 |
2 |
3 |
Min. Notching thickness(mm)-Mild steel |
0.5 |
0.5 |
0.5 |
Min. Notching thickness(mm)-Stainless steel |
0.5 |
0.5 |
0.5 |
Notching Length(mm) |
200 |
200 |
200 |
Notching angle range |
30-145 degree |
30-145 degree |
90 degree |
Main motor power(kw) |
4 |
4 |
5.5 |
Dimension(mm) |
1500x1000x1400 |
1500x1000x1400 |
1500x1000x1400 |
Net weight(kgs) |
1100 |
1350 |
1500 |

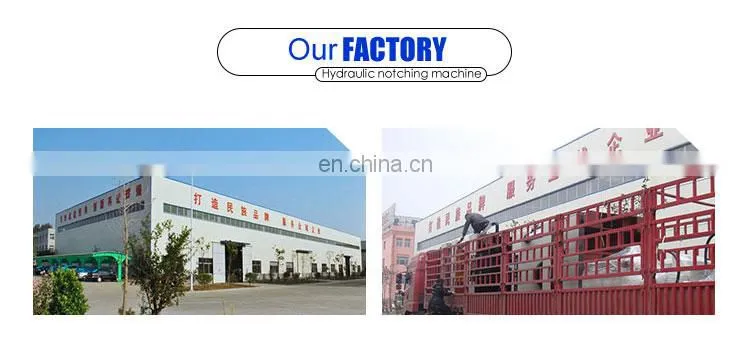

Our company
