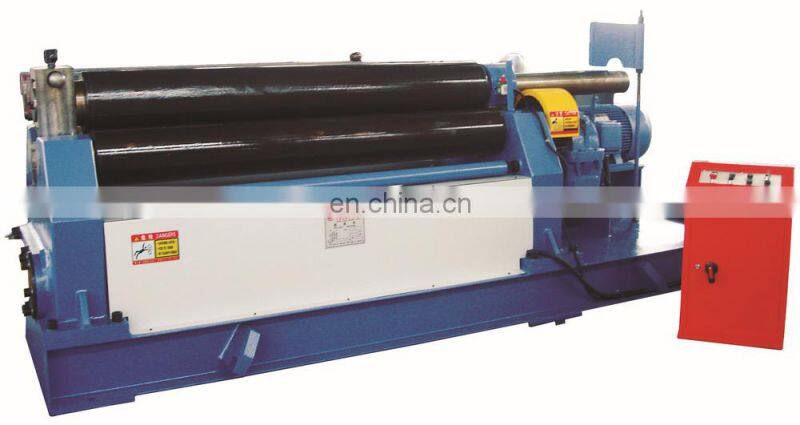

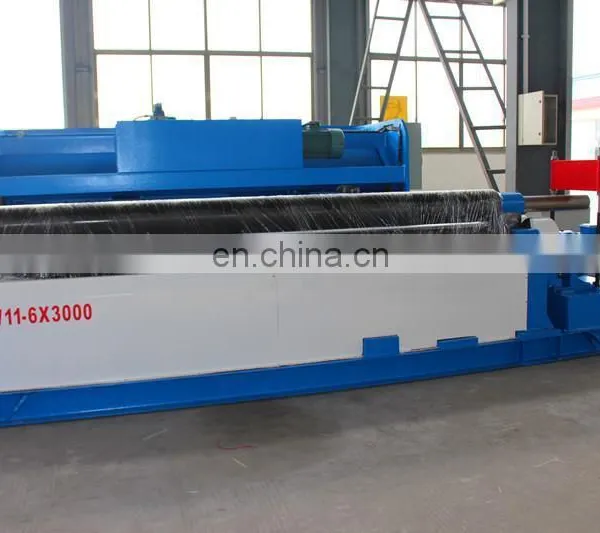

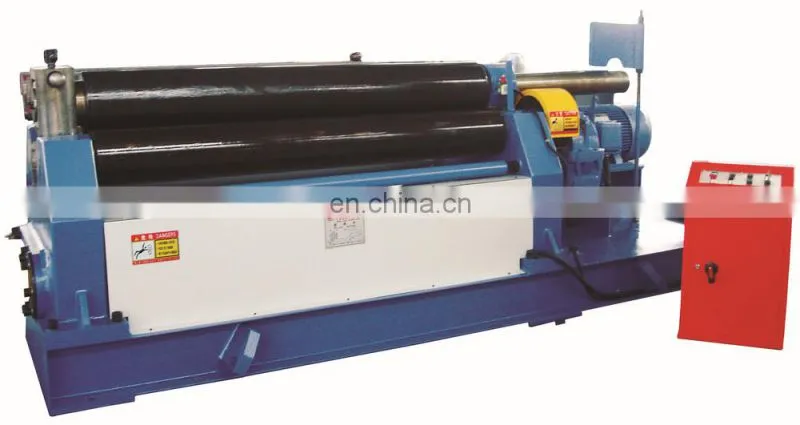

W11 Series 3-roller Mechanical Bending Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WC67Y-125/3200 China Cheap Price Hydraulic Press MachineNegotiableMOQ: 1 -
QC12Y 6X3200 QC12Y Sheet Hydraulic Shearing Machine PriceNegotiableMOQ: 1
-
Q35Y Hydraulic Punching and Shearing Machine With Competitive PriceNegotiableMOQ: 1
-
Q35Y-20 Cheap Hydraulic Punching and Shearing Machine for Metal WorkingNegotiableMOQ: 1
-
W11-4/2000 4mm Cheap Rolling Machine With CE for SaleNegotiableMOQ: 1
Product Description
Features:

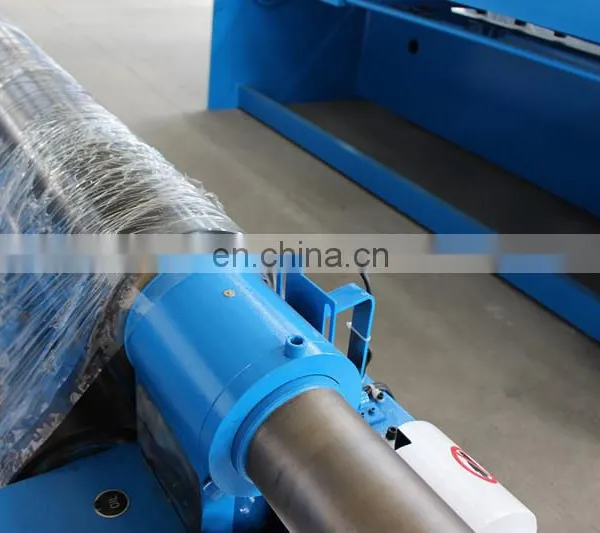

The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nut, the worm and the leadscrew. The two lower roller rotates, and provides the plate materials with torque through the engage ment of the output gear of the moderator with the gear of the lower rollers.
| Specification | Max.Thickness of Coiled Plate | Max. Width of Coiled Plate | Yielding Limit of Sheet Metal | Coiling Speed | Min Full Loading Diameter of Coiled Plate | Diameter of Top shaft | Diameter of Bottom shaft | Central Distance between Bottom Shafts | Motor Power |
| Model | mm | mm | mm | m/min | mm | mm | mm | mm | KW |
| W11-4×1500 | 4 | 1500 | 245 | 5 | 300 | 150 | 140 | 185 | 3 |
| W11-6×1500 | 6 | 1500 | 245 | 5 | 380 | 160 | 160 | 250 | 4 |
| W11-6×2000 | 6 | 2000 | 245 | 4.5 | 380 | 170 | 160 | 260 | 5.5 |
| W11-6×3200 | 6 | 3200 | 245 | 4.5 | 380 | 220 | 180 | 280 | 7.5 |
| W11-8×2000 | 8 | 2000 | 245 | 4.5 | 400 | 185 | 170 | 260 | 5.5 |
| W11-8×2500 | 8 | 2500 | 245 | 4.5 | 550 | 240 | 200 | 300 | 11 |
| W11-12×2000 | 12 | 2000 | 245 | 4.5 | 550 | 240 | 200 | 300 | 11 |
