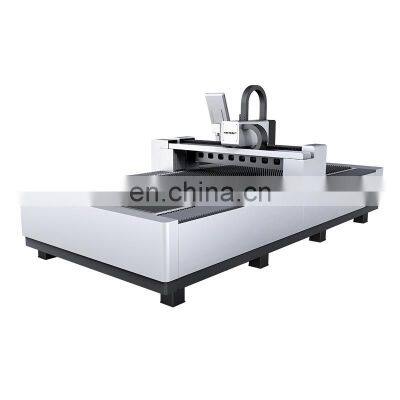

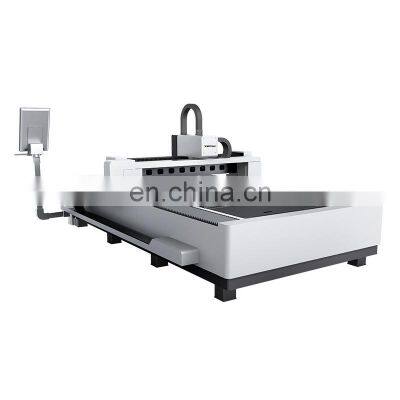

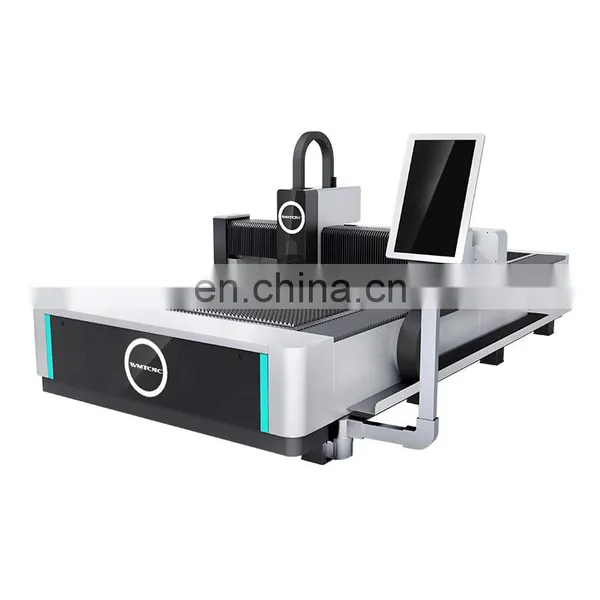

Machine Fiber Laser Cutting Machine 3015F for Sheet Metal Cutting
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Price Fiber Laser Cutting Machine for Metal 3015FR Fiber Laser Cutting Machine 1000wNegotiableMOQ: 1 -
China Hot Sale WMT3015 Single Table Fiber Laser Cutting MachineNegotiableMOQ: 1
-
Factory Direct Sale Fiber Laser Cutting Machine WMT4020 With Competitive PriceNegotiableMOQ: 1
-
Cheap Price WMT4020G CNC Steel Metal Fiber Laser Cutting MachineNegotiableMOQ: 1
-
Industrial Heavy Duty High Precision WMT3015D Fiber Laser Cutting MachineNegotiableMOQ: 1
Product Description
Fiber laser cutting machine 3015F Main Features:
1. High impact resistance performance, Good integrity, rigidity and toughness.
2. Integrated casting aluminum beam, no rivet nailing at two ends, more stable.
3. Professional sheet cutting system cypcut 2000C.
4. More user-friendly human-machine interaction.
5. Simple, economical, practical and convenient.
6. Highly integrated and highly intelligent with file reading, design, output and processing control all in one.
Specification |
3015F |
Cutting range |
3000mm*1500mm |
Max. linkage speed |
60m/min |
Max. acceleration |
0.8G |
Table load bearing |
0.8t |
Machine overall dimensions |
4500*2370*1900 |
Overall weight |
About 1900kg |
Z axis travel |
90mm |
Positioning accuracy |
±0.05mm |
Repositioning accuracy |
±0.03mm |
Φ30mm roundness |
≤0.15mm |
30mm adjacent side dimension difference |
≤0.06mm |
190mm adjacent side dimension difference |
≤0.15mm |
190mm diagonal size difference |
≤0.20mm |
Display size |
21.5 inches |
Detailed Images
*Cast aluminum crossbeam:
It adopts the low-pressure steel film casting process, so the crossbeam has the characteristics of high density, high rigidity and light weight, which can obtain higher dynamic response and improve processing efficiency.
It adopts the low-pressure steel film casting process, so the crossbeam has the characteristics of high density, high rigidity and light weight, which can obtain higher dynamic response and improve processing efficiency.
This machine body is suitable for medium and high power laser cutting machines.
It has ultra-high stability. The heavy-duty plate welded body is welded with high-quality carbon structural steel, so that the
machine body will not be deformed during long-term operation and can ensure good processing accuracy.
The hollow structure design of the machine body and the excellent dust removal and heat dissipation system can effectively reduce the impact of cutting heat, ensure the accuracy of the machine body, and increase the service life of the equipment.
It has ultra-high stability. The heavy-duty plate welded body is welded with high-quality carbon structural steel, so that the
machine body will not be deformed during long-term operation and can ensure good processing accuracy.
The hollow structure design of the machine body and the excellent dust removal and heat dissipation system can effectively reduce the impact of cutting heat, ensure the accuracy of the machine body, and increase the service life of the equipment.
Samples & Application
1. It can be used for 0.5-25mm carbon steel plate, 0.5-16mm stainless steel plate, galvanized sheet, cold-rolled sheet, electrolytic plate; 0.5-16mm aluminum alloy plate, 0.5-10mm brass and red copper and other metal materials.
2. Fiber laser cutting machine has a wide range of applications. It is usually used in automobile manufacturing, hardware products, kitchenware, sheet metal processing, advertising industry, lighting processing, fitness equipment and other popular industries.
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
