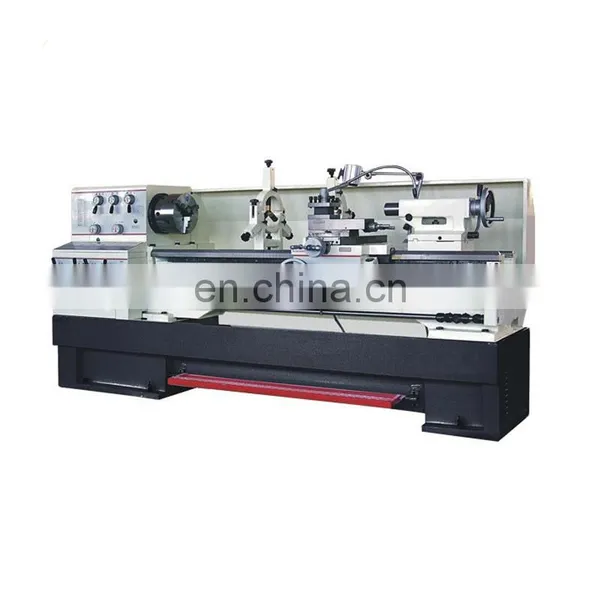

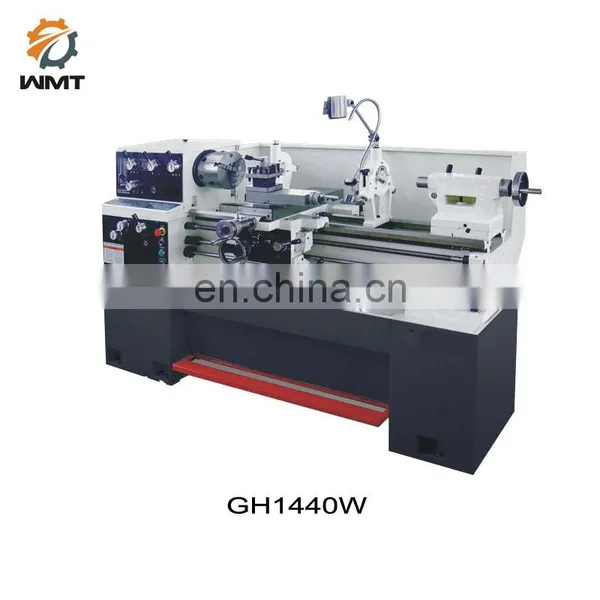

Cheap Machine Tool GH1440W Cheap Heavy Duty Engine Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Small Size CQ6128 DIY Hobby Lathe Machine With CENegotiableMOQ: 1 -
MPV280 Multi-purpose Mini Hobby Lathe Machine With CENegotiableMOQ: 1
-
MP500 500mm 3 in 1 Drill Mill Combo Multi-purpose Lathe Machine With CENegotiableMOQ: 1
-
AT750 Turno 3 in 1 Lathe Combo Drill Mill Multi Purpose MachineNegotiableMOQ: 1
-
C6241 410mm Diameter Metal Lathe Machine With Rigid StandNegotiableMOQ: 1
Features:
Long bed engine lathe machine is with supersonic frequency hardened and accurate grinded bed way.
12 steps of spindle speed.
52mm spindle bore
2.4kw(3HP)main motor power
Foot brake giving rapid braking
Lathe has scream button
Inching turning spindle is facilitate to shift gears ,load or unload workpieces
Special designed chip pan easily to remove chips
The lathe has safety switch to break power automatically when changing gears or belts
Model |
GH1440W |
||||
General capacity |
Max.Swing.over bed |
356mm(14") |
|||
Max.Swing.over cross slide |
210mm(8-5/8") |
||||
Max.Swing.over gap |
506mm(20") |
||||
Bed width |
260mm(10") |
||||
Max.Swing.over |
1000mm(40") |
||||
Spindle |
Taper of spindle bore |
MT6 |
|||
spindle bore |
52mm(2") |
||||
Steps of spindle speeds |
12steps |
||||
Range of spindle speeds |
40-1800rpm |
||||
Spindle nose |
D-6 |
||||
Threading and feeding |
Metric thread range |
0.45-7.5mm(22kinds) |
|||
Inch screw thread range |
4-112TPI (40kinds) |
||||
Range of longitudinal feeds |
0.03-0.688mm(0.0011-0.0271"in/rev) |
||||
Range of cross feeds |
0.015-0.220mm(0.0003"-0.01"in/rev) |
||||
Leadscrew |
Diameter of leadscrew |
22mm(7/8) |
|||
Pitch thread of leadscrew |
4mm(8T.P.I) |
||||
Tailstock |
Travel of tailstock quill |
100mm(3-23/25") |
|||
Diameter of tailstock quill |
50mm(1-24/25") |
||||
Taper of tailstock quill |
MT3 |
||||
Power |
Main motor power |
2.4Kw |
|||
Coolant pump motor power |
0.04Kw |
||||
Overall dimensions of lathe(L×W×H) |
1900×740×1150mm |
||||
Packing size of lathe(L×W×H) |
1970×760×1460mm |
||||
Net Weight/Gross Weight |
985kgs/1105kgs |
||||
