Home > Products > Pillow block bearings > Selling Uc204 Gye20krrb Long Life Pillow Block Bearings With The Size 20x47x17/31

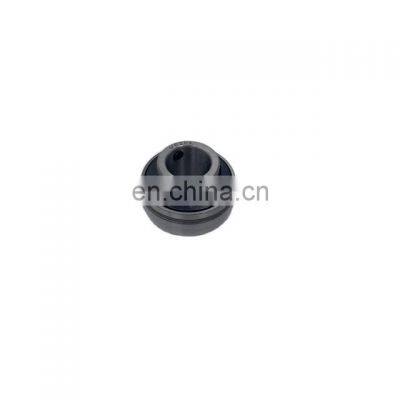

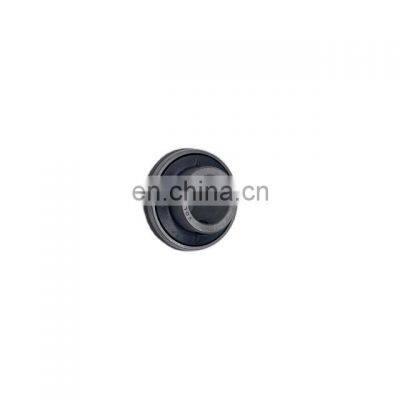

Selling Uc204 Gye20krrb Long Life Pillow Block Bearings With The Size 20x47x17/31
- T/T Credit Card
You May Like
-
7303 7204 7304 7205 7305 7206 Angular contact ball bearing
-
7905 7906 7907 7908 7909 7910 Angular contact ball bearing
-
big stock angular contact ball bearing for Megane Clio Mod 713630840 VKBA3991 6001550915 with ABS
-
Angular contact ball bearing 3056205 2RS 3205 2RS size 25*52*20.6
-
156704 2107-1701068 Size 20*50*20.6 Angular Contact Ball Bearing For Russia Vaz Car
-
Preferential Price Single Row 7917 7918 7919 7920 7921 7922 Angular Contact Ball Bearing
Product Description
Description:
Ball bearing, case, closed on 2 sides. Fastened to the shaft with the tensioning bolts on the inner ring. Bearing type UC is an insert bearing that is used for installation in all types of insert bearing units. The bearing has a spherical outer race and the housing has a spherical bore. This design allows the bearing to move slightly in the housing, thereby compensating for shaft misalignment or inaccurate mounting. The bearing is fastened to the shaft using locking screws. In addition, such a bearing has special holes for relubrication. Bearings of the UC design are mainly used as support for stub shafts, and also for installations where only slight linear thermal expansion is possible. The axial bearing clearances compensate for small shaft extensions. Bearings of the UC design are used for normal loads, low to medium rotational speeds.
Bearings of the UC type are also called radial bearings. They are used in various bearing assemblies.
The design of the bearing assembly is directly the housing itself, the bearing, the sealing system and the lubrication system. Most often, the body is made of cast iron, less often - from stainless steel or high-strength polymers. Also, the body can be one-piece or multi-piece. The device for lubrication in housing bearings is in the form of a special oiler. The seal protects the bearing from the ingress of various contaminants or moisture, and also prevents grease from leaking out.
Insert bearing UC204 - ball, sealed, self-aligning, with an extended inner ring. The lubricant has been added in advance, but it is possible to add it additionally through a special oil can (located on the housing where it is mounted). The shaft is secured with two set screws. Installed in cast iron housings P204 (on feet), F204 (flanged) and some others (including stainless steel and aluminum), forming UCP204, UCF204 and others
Parameter:
Inner diameter - d (mm) 20
Outer diameter - D (mm) 47
Width - B (mm) 27.4
Static load, kN 4.72
Rotational speed (grease), min-1 1200
High temperature true
Working range C ° from -40 to 280
Recommended range C ° 200 to 280
Item type Case without case
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
