Home > Products > Angular contact ball bearings > hot sale angular contact ball bearing 3056207 2RS 3207 2RS size 35*72*27 for UAZ car

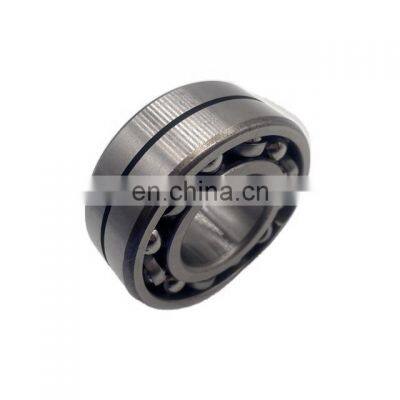

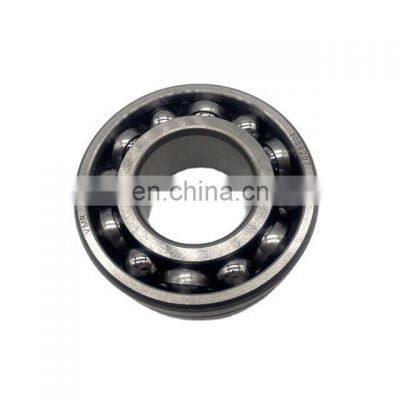

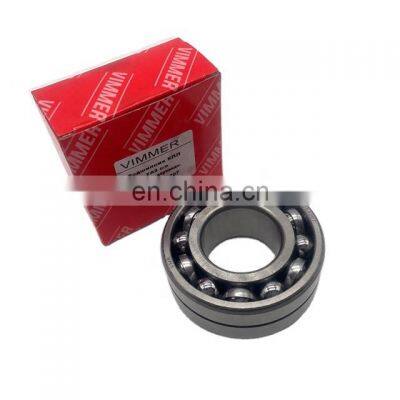

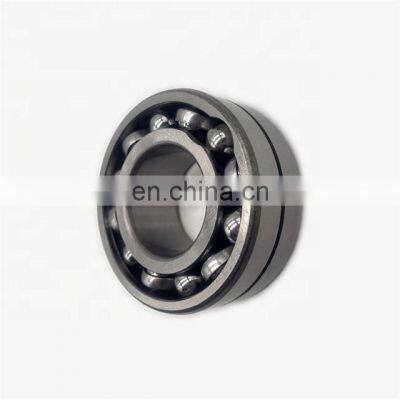

hot sale angular contact ball bearing 3056207 2RS 3207 2RS size 35*72*27 for UAZ car
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
7911 7912 7913 7914 7915 7916 Angular contact ball bearing
-
consume less Nk 08/12 Tn Nk10/12 Tn Profession Price Needle Bearing Roller For Needle Bearings
-
New Hot Items Low Friction High Quality Steel Food Beverage Factory Dimensions Roller Pin Bearing Needle
-
Various Good Quality Single Row Wide Applications Construction Works Stick Thrust Needle Roller Bearing
-
Wholesale High Quality Easy Use High Precision Garment Shops Thrust Combined Needle Roller Bearing
-
Sell Well New Type Nk 20/16 Tn Nk 20/20 Construction works Single Row China Thrust Needle Bearings
Product Description
Specification
Product name | Angular contact ball bearing 3056207 2RS 3207 2RS |
Place of Origin | China |
Brand Name | VLBG |
Warranty | 12 Months |
Certificate | ISO9001/TS16949 |
Roller body material | SHX15 |
Row | double row |
Tolerance code | P0 P6 P5 P4 P2 |
Application | Auto, tractor, machine too, electric machine, water pump, agricultural |
Radial play | C0, C2, C3, C4,C5 |
What is an Angular Contact Ball Bearing
Angular contact ball bearings have raceways on the inner and outer rings. The inner and outer rings can be relatively displaced along the bearing axis. This type of bearing is particularly suitable for bearing compound loads, that is, loads acting both radially and axially. The axial load-bearing capacity of angular contact ball bearings increases with the contact angle α. The contact angle is the angle between the line of contact points between the ball and the raceway in the radial plane and the vertical line of the bearing axis.
Double row deep groove ball bearing 3207 2RS with two sealing rings.
Light series. These are universal, non-separable bearings with strong outer and inner rings, a set of balls, two steel cages and sealing rings. The outer and inner rings have two rolling tracks each. Sealed bearings use low noise thickened grease. Operating temperature range from -20°С to +120°С. Due to their low friction, they are suitable for high and ultra-high speeds, are durable in operation and easy to maintain. Double-row cap bearings of this type are wider than single-row ones, but have a significantly higher load capacity. In addition, thanks to the "O" - figurative arrangement of the raceways, the bearing is able to perceive a small axial load.
Light series. These are universal, non-separable bearings with strong outer and inner rings, a set of balls, two steel cages and sealing rings. The outer and inner rings have two rolling tracks each. Sealed bearings use low noise thickened grease. Operating temperature range from -20°С to +120°С. Due to their low friction, they are suitable for high and ultra-high speeds, are durable in operation and easy to maintain. Double-row cap bearings of this type are wider than single-row ones, but have a significantly higher load capacity. In addition, thanks to the "O" - figurative arrangement of the raceways, the bearing is able to perceive a small axial load.
Angular contact Ball bearings
Inner Diameter (d): 35mm;
Outer Diameter (D): 72mm;
Width (H): 27mm;
Weight: 0.445 kg;
Ball Diameter: 11.906mm;
Number of balls: 24pcs;
Load capacity dynamic: 47 kN;
Load capacity static: 27.5 kN;
Open bearing speed limit: 8000 rpm.
Sealed bearing speed limit: 6000 rpm.
Outer Diameter (D): 72mm;
Width (H): 27mm;
Weight: 0.445 kg;
Ball Diameter: 11.906mm;
Number of balls: 24pcs;
Load capacity dynamic: 47 kN;
Load capacity static: 27.5 kN;
Open bearing speed limit: 8000 rpm.
Sealed bearing speed limit: 6000 rpm.
