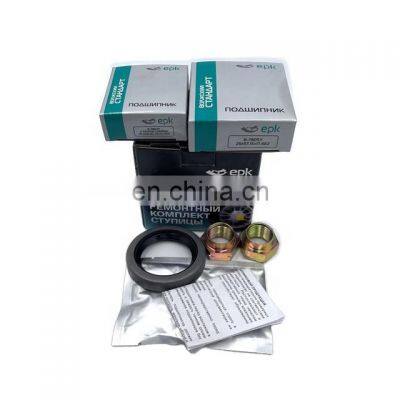

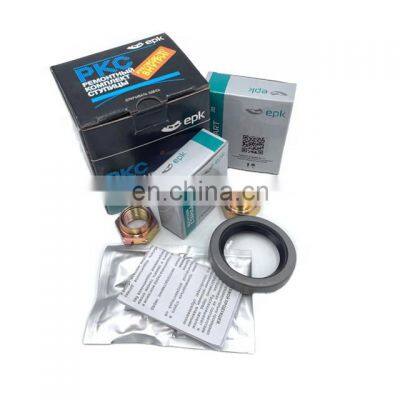

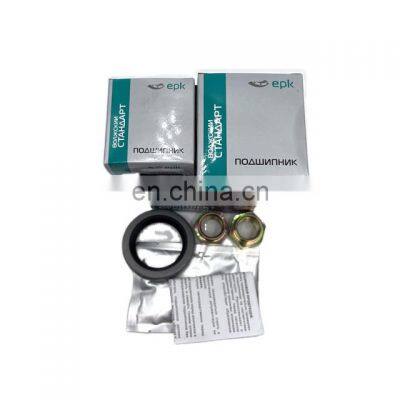

LADA Epk Packing 21010310180086 Front Wheel Bearing Kit 7804 7805 Roller Bearing for Lada 2101 2102 2103 2104 2105 2106 2107
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LANOS/NEXIA Use 07466975 94535210 R153.07 Rear Wheel Bearing Kit LM68111 Tapered Roller Bearing With Big StockNegotiableMOQ: 1 -
30311 7311 55*120*23mm Guide Wheel Bearing Tapered Roller Bearing for DT-75 TractorsNegotiableMOQ: 1
-
65*120*32/75mm Guide Wheel Bearing 32213 7513 Tapered Roller Bearing for DT-75 TractorsNegotiableMOQ: 1
-
47*100*43mm 7909 Suspension Track Roller Axle Bearing Tapered Roller Bearing for DT-75 TractorsNegotiableMOQ: 1
-
7204 46204 20*47*14mm Tapered Roller Bearing for the Camshaft of the UTN-5 Fuel Pump/ Front and Rear BearingsNegotiableMOQ: 1
Product Description
The bearing is a roller, angular contact, tapered (or this type is also called "with tapered rollers"), single-row, basic design, wide series. This design allows it to be used as hub bearings (VAZ front bearings). It is made according to the sixth degree of accuracy. contact angle? this type is from 10 to 18 °. With an increase in the taper of the outer ring, the axial load capacity increases and the radial load capacity decreases. During operation, very small and vice versa, excessively large gaps should be avoided, which can lead to an unacceptable increase in operating temperature and even destruction of bearing parts.
Bearing Specifications 7804, 7805:
Inner diameter - 19.05 mm;
Outer diameter - 45.25 mm;
Width - 15.494 mm;
Weight - 0.129 kg;
The number of rollers in the bearing - 14 pcs.;
Roller dimensions - 5.82 / 6.5x15.494 mm;
Load capacity dynamic - 27.5 kN;
Static load capacity - 27.5 kN;
The maximum rated speed is 11000 rpm.7805 bearing:
Inner diameter - 26 mm;
Outer diameter - 57.15 mm;
Width - 17.462 mm;
Weight - 0.226 kg;
The number of rollers in the bearing - 14 pcs.;
Roller dimensions - 6.3 / 7.06x12.4 mm;
Load capacity dynamic - 37.8 kN;
Static load capacity - 42.8 kN;
The maximum rated speed is 8000 rpm.
OE number:
21010-3101800-86 2101-3103020 2101-3103025 2101-3103034 2101-3103038 2101-3103079 00001004044171
Applicability:
VAZ 2101-2107
Designation GOST 520-2011 (27365-87): | 7804 7805 |
ISO 355, DIN 720 designation: | 6-7804 У, 6-7805 У |
Size: | 40x68x19 |
Packing: | VLBG single box packing, lada image famous brand original packing, customer packing |
Application: | VAZ-2121 (Niva), VAZ-2123 (Niva) |
OEM, ODM: | all available |
Packing & Delivery
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
