Home > Industrial Equipment & Components > Bearing > Taper Roller Bearing > 2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars

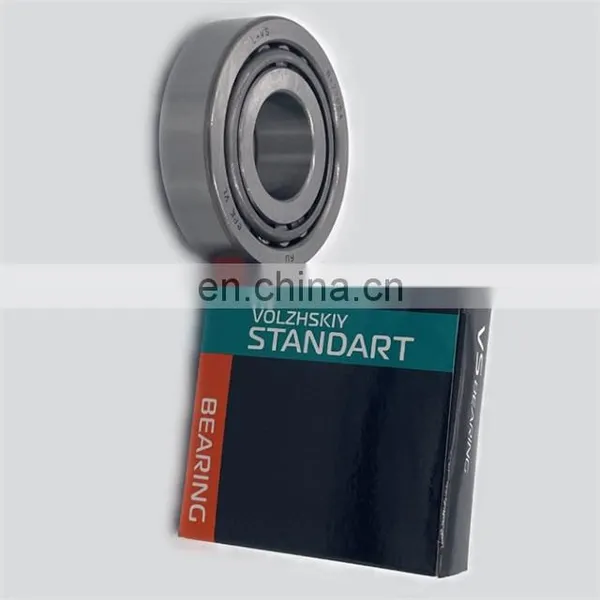

2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars

2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars thumbnail-3

2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars thumbnail-4

2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars thumbnail-5

2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars photo-1

2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars photo-2

2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars photo-3

2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars photo-4

2101-2402025 Rear Axle Gearbox Bearing for VAZ-2101-07 Front (7705) Russia Cars photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Specification

Product name	2101-2402025 Rear axle gearbox bearing for VAZ-2101-07 front (7705) Russia cars
Usage	Rear axle gearbox bearing
Size	286720mm
Car Make	VAZ-2101-07 front (7705) Russia car
Place of Origin	China
Brand Name	VLBG
Model Number	2101-2402025
Warranty	24Months
Inner diameter	28MM
Outside diameter	67MM
Height	20MM
Bearing type	Friction bearings
Certificate	ISO9001/TS16949
Roller body material	SHX15
Weight	0.379
Number of rolling bodies	15
Standard	TU 37.006.170-90
Roller length	14.96
Type of perceived loads	Radial thrust
Roller Body diameter	7.5

bearing diagram 7705

Number of rollers - 15 pcs.; Roller dimensions - 7.5 / 8.6x14.96 mm; Dynamic lifting capacity - 60 kN; Static lifting capacity - 72 kN;

Inner diameter - 28 mm; Outside diameter - 67 mm; Width - 20.5 mm; Weight - 0.379 kg; The maximum rated speed is 8000 rpm. Bearing 7705 is intended for use only in VAZ cars - "classic" (models 2101, 2102, 2103, 2104, 2105, 2106, 2107) (rear axle) and Niva 2121 4x4 (front and rear axles), where it is installed along with the bearing 7707 . It has practically no other scope.

BEARING 7705A-6 GEARS OF THE DRIVING FRONT AND REAR AXLES (FRONT SUPPORT) VPZ

Applicability: VAZ-2101, 21011, 21012, 21013, 21014, VAZ-2102, 21022, 21023, 21024, VAZ-2103, 21031, 21032, 21033, 21034, 21035, VAZ-2104, 21043, 21047, VAZ-2105, 21051 , 21053, VAZ-2106, 21061, 21063, 21065, VAZ-2107, VAZ-2120 NADEZHDA, VAZ-2121 NIVA, VAZ-21213 NIVA, VAZ-21213i NIVA (injector), VAZ-21214 LADA 4x4, VAZ-2123 NIVA CHEVROLET, VAZ-2131 NIVA The bearing is roller, angular contact, tapered (or this type is also called "with tapered rollers"), single-row, basic design, wide series. The degree of accuracy is usually zero, which does not play a special role. A modification is made with a steel cage (letter U or A to the right of the number) or polyamide (the letter E is additionally indicated). Also, bearings can be produced with increased requirements for the level of emitted noise (the presence of the letter Ш in the number). Contact angle? in this type it is from 10 to 18 °. With an increase in the taper of the outer ring, the axial load capacity increases and the radial load decreases. For double-sided shaft fixation, these rolling bearings must be installed in pairs. In Russia, this type is produced at the Samara Bearing Plant - 9 GPPs, as well as at the Volzhsky Bearing Plant (formerly 15 GPPs, the products are now labeled VPZ). In terms of price, the second is preferable, and in terms of quality it is not inferior. In auto parts stores, very often only Chinese Craft are on sale, which are cheap, but do not differ in reliability. Bearing 7705 is intended for use only in VAZ cars - "classic" (models 2101, 2102, 2103, 2104, 2105, 2106, 2107) (rear axle) and Niva 2121 4x4 (front and rear axles), where it is installed along with the bearing 7707. He practically has no other sphere of application. This standard size does not have an exact foreign analogue.
