Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Auto Bearing > Tapered Roller Bearing 7705 of the Front Axle Gearbox VAZ 2121 Niva, RZM VAZ-2101 2101-2402025

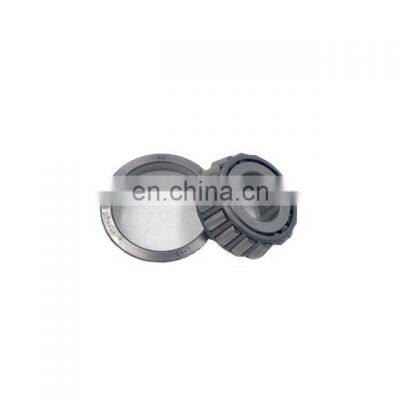

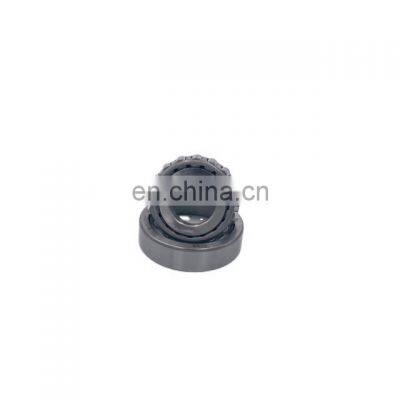

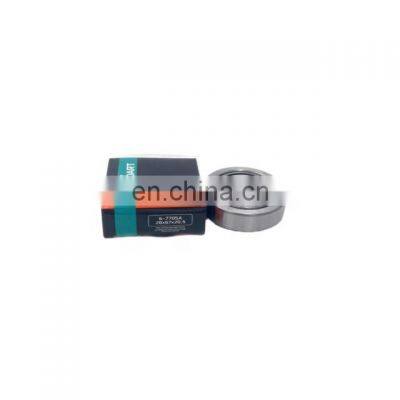

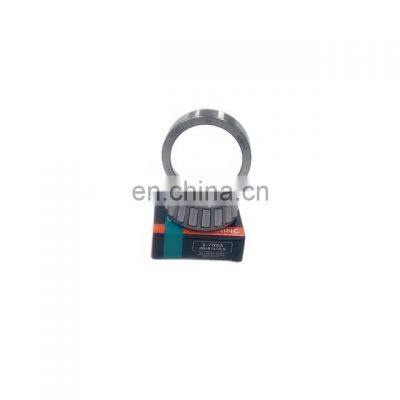

Tapered Roller Bearing 7705 of the Front Axle Gearbox VAZ 2121 Niva, RZM VAZ-2101 2101-2402025
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2121-3103020 6-2007108A 32008 Tapered Roller Bearing Size 40x68x19 mm for Off-road Passenger VAZ-2121 Front Wheel HubsNegotiableMOQ: 1 -
Factory Price 32008 2007108 Taper Roller Bearing for EcuadorNegotiableMOQ: 1
-
Russian Car Lada VAZ 2101 2102 2103 2104 Rear Axle Use Tapered Roller Bearing 2101-2402041 7807 34.938x73.03x26.987 for SellingNegotiableMOQ: 1
-
Russian Market Hot Selling VAZ 2103 2104 2105 2106 2107 Rear Axle Wheel Bearing Tapered Roller Bearing 2101-2402041 7807NegotiableMOQ: 1
-
Russian Car VAZ 2121 Niva 4x4 1977 Rear Axle Wheel Tapered Roller Bearing 2101-2402041 7807 34.938x73.03x26.987 for SellingNegotiableMOQ: 1
Product Description
6-7705 A Description:
Tapered roller bearing 6-7705 A is a type of rolling bearing that uses tapered rollers. Depending on the type, it can have a
different design: inch or metric; with several rows (one, two, or four) of rolling elements; a different number of rings of
various configurations (single-row, double-row, distance).
The constructively implemented variable contact angles ensure the simultaneous perception of external loads with multidirectional
application vectors (axial, axial) and exclude the rollers from sliding along the surface of the raceways.
In the design of what mechanisms and devices is used a tapered roller bearing 6-7705 A
Tapered roller bearing 6-7705 A is a type of rolling bearing that uses tapered rollers. Depending on the type, it can have a
different design: inch or metric; with several rows (one, two, or four) of rolling elements; a different number of rings of
various configurations (single-row, double-row, distance).
The constructively implemented variable contact angles ensure the simultaneous perception of external loads with multidirectional
application vectors (axial, axial) and exclude the rollers from sliding along the surface of the raceways.
In the design of what mechanisms and devices is used a tapered roller bearing 6-7705 A
Depending on the type, the roller bearing is installed in:
reducer;
wheel bushings;
transmissions;
machine spindles;
the neck of the shafts of rolling mills.
reducer;
wheel bushings;
transmissions;
machine spindles;
the neck of the shafts of rolling mills.
7705 bearing specifications
Inner diameter - 28 mm;
Outside diameter - 67 mm;
Width - 20.5 mm;
Weight - 0.379 kg;
Number of rollers - 15 pcs.;
Roller dimensions - 7.5 / 8.6x14.96 mm;
Dynamic lifting capacity - 60 kN;
Static lifting capacity - 72 kN;
The maximum rated speed is 8000 rpm.
Inner diameter - 28 mm;
Outside diameter - 67 mm;
Width - 20.5 mm;
Weight - 0.379 kg;
Number of rollers - 15 pcs.;
Roller dimensions - 7.5 / 8.6x14.96 mm;
Dynamic lifting capacity - 60 kN;
Static lifting capacity - 72 kN;
The maximum rated speed is 8000 rpm.
Oe number: | 2101-2402025 |
Bearing number: | 6-7705 А, 6-7705У,7705А, 7705А1,7705, |
Size: | 28x67x20,5 |
Packing: | VLBG single box packing, famous brand original packing, customer packing |
Application: | Russian Vaz car |
OEM, ODM: | all available |
Analog number:
6-7705 А, 6-7705У,7705А, 7705А1,7705, 2101-2402025
Bearing applicability table 6-7705 A:
VAZ 2101 1970-1988 Rear axle driving gear. front support
VAZ 2102 1971-1985 Rear axle drive gear. front support
VAZ 2103 1972-1984 Rear axle drive gear. front support
VAZ 2104 1984-2012 Rear axle drive gear. front support
VAZ 2105 1979-2010 Rear axle drive gear. front support
VAZ 2106 1975-2005 Rear axle driving gear. front support
VAZ 2107 1982-2012 Rear axle drive gear. front support
VAZ 2102 1971-1985 Rear axle drive gear. front support
VAZ 2103 1972-1984 Rear axle drive gear. front support
VAZ 2104 1984-2012 Rear axle drive gear. front support
VAZ 2105 1979-2010 Rear axle drive gear. front support
VAZ 2106 1975-2005 Rear axle driving gear. front support
VAZ 2107 1982-2012 Rear axle drive gear. front support
Packing & Delivery
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
Company Profile
Established in 2009,Shandong Vanlin bearing Co., Ltd is located in jinan western industrial area, jinancity, shandong province.
Our company is an enterprise integrating R&D, production, sales and service. The company specializes in the production of
industrial bearing, agriculture bearing, Automotive bearings, Petroleum Drilling Bearing and so on. We can provide hub units,
wheel bearing and kits, tensioner pulley, clutch assembly bearing, gearbox bearing and other bearings
Our company is an enterprise integrating R&D, production, sales and service. The company specializes in the production of
industrial bearing, agriculture bearing, Automotive bearings, Petroleum Drilling Bearing and so on. We can provide hub units,
wheel bearing and kits, tensioner pulley, clutch assembly bearing, gearbox bearing and other bearings
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and doing exporting by ourself.
Q:What’s your after-sales service and warranty?
A:1.12 months warranty or 30000km;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q: Do you provide samples ? is it free or extra ?
A: Samples and trial order are both available, the sample can be free if it's not a big value, customer is supposed to take the
courier charge.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, can also customize packaging box as per your
A: We are factory and doing exporting by ourself.
Q:What’s your after-sales service and warranty?
A:1.12 months warranty or 30000km;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q: Do you provide samples ? is it free or extra ?
A: Samples and trial order are both available, the sample can be free if it's not a big value, customer is supposed to take the
courier charge.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, can also customize packaging box as per your
