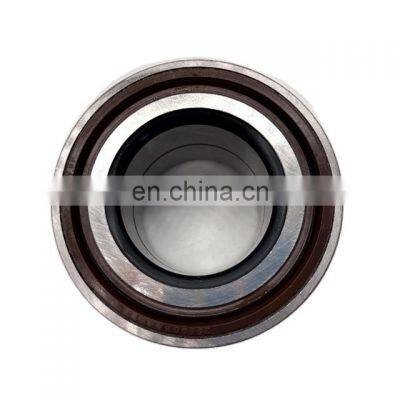

34BWD04BCA70 309726DA 256907 VBF Front Auto Wheel Bearing Size 34x64x37 2RS for VAZ 2108 2109 2110 2111 2112
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Russian Market Use Factory Provide Front Wheel Hub Bearing 2108-3103020 532066DB AU0701-4LL/L588 34x64x37 2RSNegotiableMOQ: 1 -
40210-95F0A 40210-4M400 3885A001 MR403500 Wheel Hub BearingsNegotiableMOQ: 1
-
2101-3103020 6-7805 U Front Wheel Hubs Bearings for Car VAZ-2101-2108 VAZ-2121 NivaNegotiableMOQ: 1
-
BTH-1222B FC41722.S01 Rear Axle Auto Wheel Bearing Size 30x62x48 zz for KANGOO/DUSTER/LAGUNA 01-NegotiableMOQ: 1
-
KANGOO/DUSTER/LAGUNA 01- Rear Axle Auto Wheel Bearing 432100552R FC41722.S01 With the Bearing Size 30x62x48 zzNegotiableMOQ: 1
Product Description
Description:
Its main area of application is the front hub bearing of VAZ 2108, 2109, 2110, 2111, 2112. It has the following design characteristics - ball, angular contact, double row, closed type (seals on both sides). The double row ball bearing is bi-directional. Bearing 256707 is installed in the front hub of more modern VAZ models (Kalina, Grant).
Its main area of application is the front hub bearing of VAZ 2108, 2109, 2110, 2111, 2112. It has the following design characteristics - ball, angular contact, double row, closed type (seals on both sides). The double row ball bearing is bi-directional. Bearing 256707 is installed in the front hub of more modern VAZ models (Kalina, Grant).
These bearings carry double-sided axial loads. They are manufactured in the 6th class of accuracy with a contact angle of 36 °. They consist of an outer ring, two inner rings, two polyamide cages, two sets of balls, two combined rubber-reinforced seals and are filled with grease. During operation, the bearings do not require additional lubrication and adjustment. The gap between the inner rings during installation is selected by tightening with a torque of 18-25 kgf.m, which ensures the rigidity of the support and the ease of rotation of the wheel. The bearings have a redesigned double-sided two-stage seal with a centrifugal effect, which improves the dust protection of the bearing during operation.
Analog 532066DA, 2108-3103020 Specifications: Inner diameter (d): 34 mm; Outside diameter (D): 64 mm; Width (H): 37mm; Weight: 0.445 kg; Ball diameter: 9.525mm; Number of balls: 28 pcs; Dynamic loading capacity: 31.5 kN; Static lifting capacity: 27.9 kN; Rated speed: 6000 rpm
Analog 532066DA, 2108-3103020 Specifications: Inner diameter (d): 34 mm; Outside diameter (D): 64 mm; Width (H): 37mm; Weight: 0.445 kg; Ball diameter: 9.525mm; Number of balls: 28 pcs; Dynamic loading capacity: 31.5 kN; Static lifting capacity: 27.9 kN; Rated speed: 6000 rpm
Specification
d - inner diameter: | 34 |
D - outer diameter: | 64 |
B - width: | 37 |
GOST designation: | 256907 |
Rolling body: | Ball |
Load direction: | Angular contact |
Row: | Double row |
Sealing: | 2RS |
Application:
VAZ 2108, 2109, 2110, 2111, 2112
Nexia 1995-2005 1,5L 8kl.
Other oe number:
34BWD04BCA70, 309726DA, 532066DB, AU0701-4LL/L588, IJ111009, DAC3464W-52RSCS44, 713644660
We can also provide the kit one, with circrip and split pin
Packing & Delivery
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
