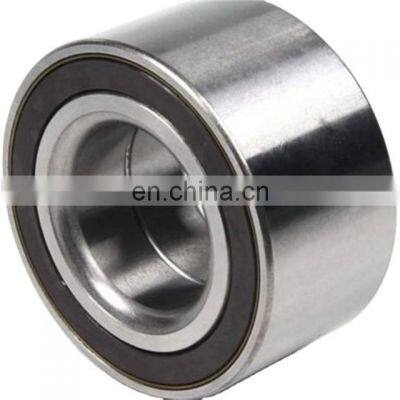

Rear Hub Bearing 256706 the Number of This Bearing is BA2B633313C
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Promotional High Quality 30bwd07 30*60*37 Size Ba2b633667 Products Auto Wheel Bearing For AutoNegotiableMOQ: 1 -
2022 New Promotion 30*60*37 Size Vkbc 2009 Ba2b246033 Auto Car Wheel Bearing Hub For Vaz 2108 2109NegotiableMOQ: 1
-
VKBA 3637 7701207677 R155.75 Wheel Bearing Kit for France Car PartsNegotiableMOQ: 1
-
XGB.41140.R00 6001550915 713630840 Wheel Bearing Kit for France Car PartsNegotiableMOQ: 1
-
1118-2902840 1118-2902840-01 VKD35032 Upper BearingNegotiableMOQ: 1
Specification
Product name | 256706 the rear hub bearing for VAZ 2108, 2109, 2110, 2111, 2112 cars. |
Usage | wheel hub bearings |
Rotational Speed ingrease | 6500 |
Car Make | LADA CARLOTA, LADA CEVARO, LADA DIVA, LADA SABLE, LADA SAGONA, LADA SAMARA, LADA SAMARA FORMA |
OE NO. | 2108-3104020 |
Place of Origin | China |
Brand Name | VLBG |
Model Number | 537906 |
Warranty | 1 year |
Inner diameter | 30MM |
Outside diameter | 60MM |
Height | 37MM |
Outer cage width | 37mm |
Certificate | ISO9001/TS16949 |
Number of balls pcs | 28 |
Weight | 0.4kg |
Ball diameter | 9.52 |
Steel grade | shkh-15 |
Dynamic Load Capacity.H | 31500 |
Static Lifting capacity.H | 27900 |
256706 | Double-row angular contact ball bearing GOST 6-256706 |
Double-row angular contact ball bearing GOST 6-256706
Its main area of application is the rear hub bearing of VAZ 2108,
2109, 2110, 2111, 2112 cars. It has the following design characteristics - ball, angular contact, double-row, closed type (seals
on both sides). Since it has two rows of rolling elements, it is able to fix the shaft under axial load in both directions. There
is a roller analogue of this bearing - 537906, it has an increased load capacity, but also a lower rotation speed. Since VAZ cars are widely used bearing 256706: Inner Diameter (d): 30mm; Outer Diameter (D): 60mm; Width (H): 37mm; Weight: 0.4 kg; Ball Diameter: 9.525mm;
Number of balls: 28pcs; Load capacity dynamic: 30.1 kN; Load capacity static: 25.9 kN; Rated speed: 6500 rpm
2109, 2110, 2111, 2112 cars. It has the following design characteristics - ball, angular contact, double-row, closed type (seals
on both sides). Since it has two rows of rolling elements, it is able to fix the shaft under axial load in both directions. There
is a roller analogue of this bearing - 537906, it has an increased load capacity, but also a lower rotation speed. Since VAZ cars are widely used bearing 256706: Inner Diameter (d): 30mm; Outer Diameter (D): 60mm; Width (H): 37mm; Weight: 0.4 kg; Ball Diameter: 9.525mm;
Number of balls: 28pcs; Load capacity dynamic: 30.1 kN; Load capacity static: 25.9 kN; Rated speed: 6500 rpm
Diameter and number of balls
The marking of this spare part and its decoding comply with the standards in force in the post-Soviet space. Factory designation
256706 C17 can be decomposed as follows: 25 – execution (two-row with contact seals); 6 - angular contact ball bearing; 7 - a
series of outer diameters; 06 - encoding of the internal size (d / 5); C17 - grease (Litol-24).
256706 C17 can be decomposed as follows: 25 – execution (two-row with contact seals); 6 - angular contact ball bearing; 7 - a
series of outer diameters; 06 - encoding of the internal size (d / 5); C17 - grease (Litol-24).
Analogs and modifications
Another analogue can be considered a double-row roller bearing with the same dimensional characteristics 537906. Due to the peculiarities of its design, it has a significantly higher load capacity, but a lower operating frequency.
Among the modifications of the ball bearing 256706 are products with different types of cages and different materials used for the manufacture of plugs.
Applicability
Bearings 256907 are used in the front wheel hubs of passenger cars VAZ 2101-2109 (2112, 2121). Installed in wheels M-2141 produced by AZLK and ZAZ-1102 (1102).
If necessary, they can also be installed in the hub units of modern VAZ models instead of a roller bearing.
