Home > Products > Auto bearings > 2101-3103020 6-7805 U front wheel hubs bearings for Car VAZ-2101-2108 VAZ-2121 Niva

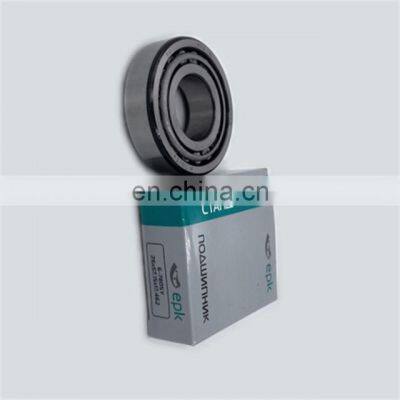

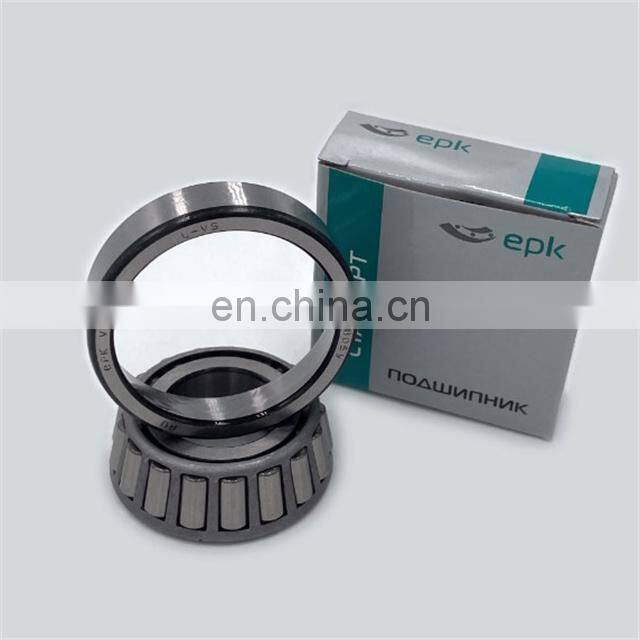

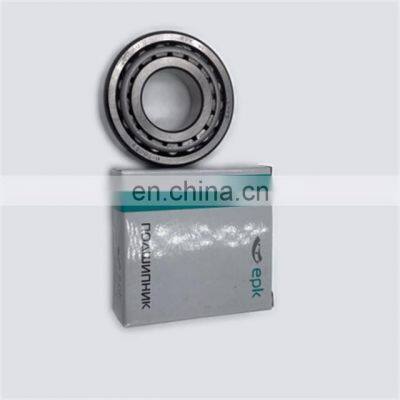

2101-3103020 6-7805 U front wheel hubs bearings for Car VAZ-2101-2108 VAZ-2121 Niva
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
BTH-1222B FC41722.S01 rear axle auto wheel bearing size 30x62x48 zz for KANGOO/DUSTER/LAGUNA 01-
-
KANGOO/DUSTER/LAGUNA 01- rear axle auto wheel bearing 432100552R FC41722.S01 with the bearing size 30x62x48 zz
-
2108-3104020 256706 DAC30600037 rear axle wheel bearing size 30x60x37 2RS for lada VAZ 2108 2109 2110 2111 2112
-
1118-3103020 front axle wheel bearing 6-256707EK12 256707 size 35x68x37 2RS for vaz 1118 car
-
Russian market famous GAZelle NEXT Front hub unit auto bearing A21R23-3103145 F-582873
-
Factory Supplier R153.14 2108-3103020 256907 34x64x37 2rs For Vaz 2108 2109 2110 211 2112 Front Wheel Bearing Kit
Product Description
Specification
Product name | 2101-3103020 6-7805 U front wheel hubs bearings for Car VAZ-2101-2108 VAZ-2121 Niva |
Usage | Single-row Taper Roller Bearing |
Size | 26x57,15x17,462 |
Car Make | VAZ-2101 VAZ-2102 VAZ-2103 VAZ-2105 VAZ-2106 VAZ-2107 VAZ-21213 VAZ-2123 |
Place of Origin | China |
Brand Name | VLBG |
Model Number | 7805 2101-3103020 6-7805 U |
Warranty | 24Months |
Inner diameter | 26MM |
Outside diameter | 57.15MM |
Height | 17.462MM |
Bearing type | Friction bearings |
Certificate | ISO9001/TS16949 |
Roller body material | SHX15 |
Weight | 0.225 |
Number of rolling bodies | 14 |
Standard | TU 37.006.170-90 |
Roller length | 12.4 |
Type of perceived loads | Radial thrust |
Roller Body diameter | 6.3 |
Bearing 7805 size 26x57,15x17,462
Tapered roller bearings 7805designed for the simultaneous perception of axial and axial loads, which allows you to expand the scope of its application and significantly simplify the design of the supporting units of mechanisms and equipment. In application Angular contact tapered roller bearing 7805 reduces the requirements for alignment, which is very important in the manufacture of products, especially large-sized ones. Mounting a single bearing provides the ability to take a radial load together with an axial load acting in one direction (paired installation, with axial bidirectional). Angular contact tapered roller bearing 7805 has a wide range of applications: in general machine building equipment, in transmissions of tractor and automotive equipment, in wheel hubs, in metalworking machines.
Bearing specifications 7805
Inner diameter - 26 mm;
Outside diameter - 57.15 mm;
Width - 17.462 mm;
Weight - 0.226 kg;
The number of rollers in the bearing - 14 pcs .;
Roller dimensions - 6.3 / 7.06x12.4 mm;
Dynamic lifting capacity - 37.8 kN;
Static lifting capacity - 42.8 kN;
The maximum rated speed is 8000 rpm.
Bearing 7805
The bearing is roller, angular contact, tapered (or this type is also called "with tapered rollers"), single-row, basic design, wide series. This design allows it to be used as hub bearings ( front VAZ bearings ). Manufactured according to the sixth degree of accuracy. Contact angle? in this type it is from 10 to 18 °. With an increase in the taper of the outer ring, the axial load capacity increases and the radial load decreases. During operation, one should avoid very small and vice versa, excessively large clearances, which can lead to an unacceptable increase in the operating temperature and even destruction of bearing parts.
The production of this product is carried out at 15 GPPs (Volzhsky, VPZ marking) and 9 GPPs (Samara, SPZ-GROUP marking). Since the front hub bearings experience high loads, it is not recommended to buy this type with a different marking, since in this case there is a high probability of their premature failure, which can also entail more serious consequences if the car is on the move. This is especially true of low-quality Chinese bearings, which attract buyers with their cheapness (Craft, KG, AMS).
Bearing 7805, along with bearing 7804, is the front hub bearing of VAZ models from 2101 to 2107 (unlike it, it is installed in an internal support).
The imported analogue of this type of roller bearing is designated according to the international nomenclature - 639154
7805

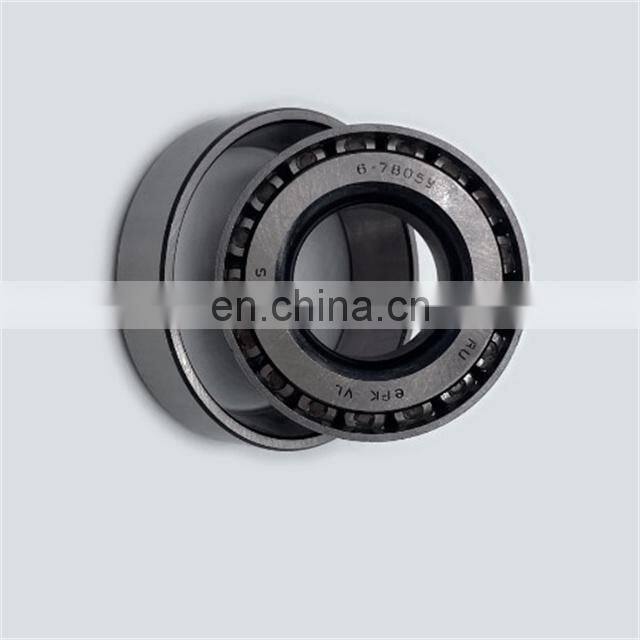

Russian roller bearing 7805 (2101-3103020) VAZ 2101 front hub bearing

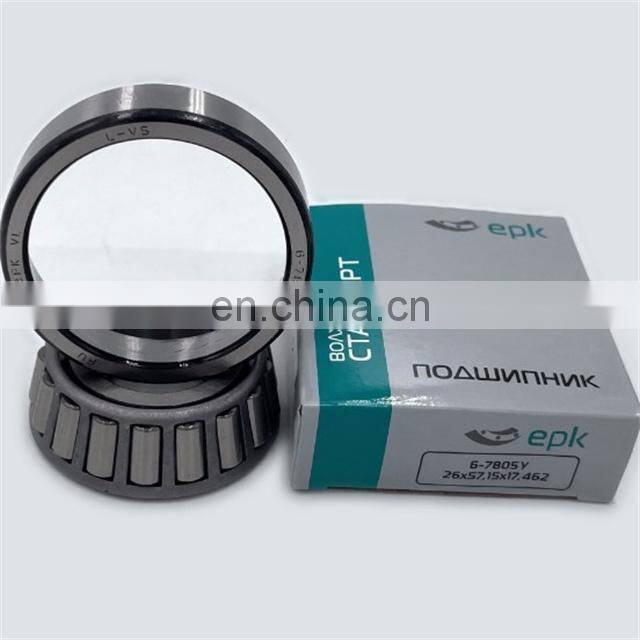

Bearing 7805 size 26x57,15x17,462
6-7805 U front wheel hub bearings for Car VAZ-2101 Car VAZ-2102 VAZ-2103
6-7805 U 2101-3103020 front wheel hub bearings for Passenger car VAZ-2105 VAZ-2106 VAZ-2107
6-7805U Car VAZ-2101-2107 front wheel hubs (internal support)
6-7805 U Car VAZ-2101-2108 Front wheel hub (78047805) / Rear hub (78047205)
6-7805 U Car VAZ-2121 Niva Front wheel hub (78047805) / Rear hub (78047205)
4T-15579X / 15520 PLC64-11 15579X / 15520
