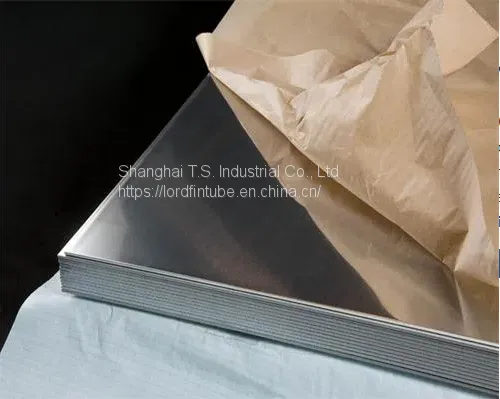

7075 Aluminium Hot Rolled Plate for Aircraft
7075 is very strong compared to most aluminum alloys and has average machinability, but the copper component makes it susceptible to corrosion.
Thickness can reach 280mm (11")
Low porosity
Excellent anti-fatigue characteristics, Lightweight, semi-smooth surface
Low residual stress
Won't change shape after the process
High strength, tenacity, and ductibility
Application 7075 alloy is widely used in aerospace structural parts, mechanical parts, cabinet shells, molding, building, and transportation vehicles. Commonly machined to end-user specifications. Use where high strength is required.
Production Line for 7075 Aluminium Hot Rolled Plate for Aircraft
Through the years, we have built many modern production lines, including one 1+2 hot rolling production line, six 2,450, 2,050, 1,650, and 1,450mm cold rolling lines, two 1,650mm foil rolling production lines, two 1,850mm continuous rolling production lines and one roll coating production line. Besides, we also bring in 8 x 20 annealing furnaces, tension leveled machines, tension pre-stretch machines, cutting machines, cleaning equipment, testing machines, and packing equipment from at home and abroad to be able to complete various clients' requirements
Super Strength Aluminum Plate 7075 for Aerospace Application
A) Chemical Composition:
Al |
Si, max |
Fe, max |
Cu |
Mn, max |
Mg |
Cr |
Zn |
Ti, max |
Balance |
0.40 |
0.50 |
1.20-2.00 |
0.30 |
2.10-2.90 |
0.18-0.28 |
5.10-6.10 |
0.20 |
B) Mechanical Properties:
Tensile Strength σB (MPa), min |
Yield Strength σ0.2 (MPa), min |
Elongation δ5 (%), min |
180 |
110 |
14 |
C) Temper: HO, H111, H112, H114, H116, H321, H24, H32 etc.
D) Other alloy: 5A02, 5005, 5052, 5056, 5082, 5083, 5086, 5154, 5182, 5454, 5754.
E) Size:
- Thickness: 0.1-350mm
- Width Max: 2400mm
- Length Max: 11800mm
F) Packing: Standard Export Package: Wooden Pallets with waterproof paper.
G) Payment Terms: We have the following two payment methods.
- 30% T/T as deposit, the balance is against B/L Copy.
- 100% Irrevocable L/C at sight
H) Application:
7075 alloy aluminum mainly used for high plasticity and good weldability, working in a liquid or gaseous medium low load parts, such as fuel tanks, gasoline or oil conduit, and a variety of other liquid containers produced by deep drawing a small load parts: Wire used to make the rivets.
Aluminium Alloy 7075
Chemical Composition Limits | |||||||||||
Weight% |
Al |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Other Each |
Others Total |
7075 min |
Rem |
- |
- |
1.2 |
- |
2.1 |
0.18 |
5.1 |
- |
- |
- |
7075 max |
Rem |
0.40 |
0.50 |
2.0 |
0.30 |
2.9 |
0.28 |
6.1 |
0.20 |
0.05 |
0.15 |
