12 m Large Box Trailer Led Mobile Stage Sales

FOB Price

US$ 1 - 58000 / Set

1 Set(Min. Order)

Port QINGDAO/SHANGHAI/NINGBO
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HUAYUAN	Place of Origin	China
Model Number	ZHC9160XWT	Condition	New
Transmission Type	Manual	Gross Vehicle Weight	19250
Fuel Type	Diesel	Emission Standard	Euro 4
Dimensions (L x W x H) (mm)	1219024803985mm

Product Description

12 m large box trailer led mobile stage sales

1. Mobile LED advertising trucks is also named as mobile LED screen trucks, LED advertising vehicles, LED mobile advertising vehicles, LED media cars, LED propaganda vehicles, LED stage trucks, digital led screen display trucks, etc.

2. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.

3. One side waterproof P6/P8/P10 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.

4. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.

Main details parameters

Name	Mobile stage semi-trailer
Vehicle announcement parameters	Overall dimensions (length × width × height)			12190×2480×3985mm
	Total mass (kg)			19250
	Curing quality (kg)			13800
	Loading mass (kg)			5450
	Tire specifications			10.00R20
	Number of tires			8
Vehicle specific configuration

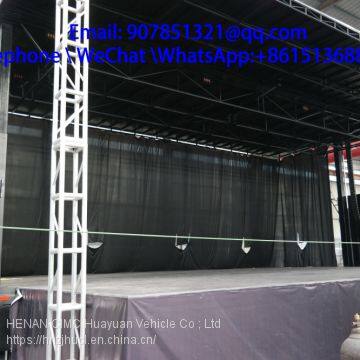

Stage part		Stage opening width	11000mm
		Stage depth	8600mm
		Stage height from the ceiling	4400mm
		Stage height from the ground	1500mm

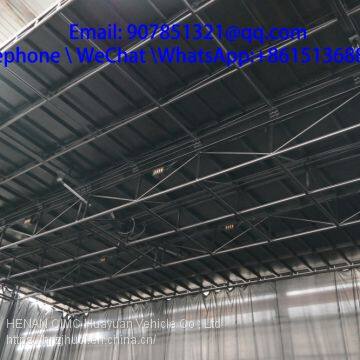

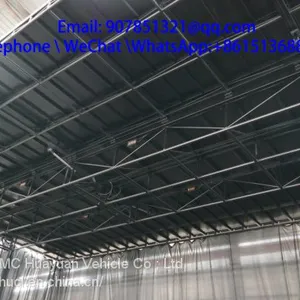

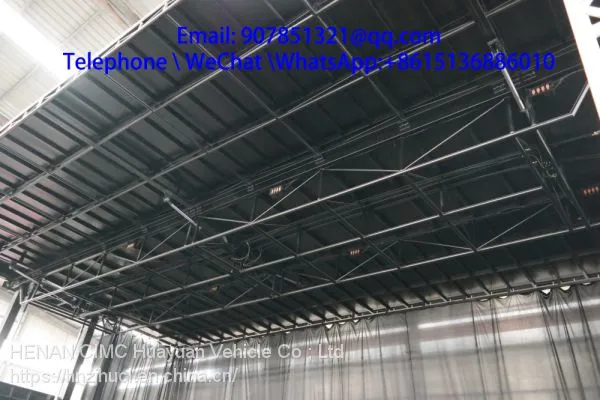

		Stage truss	2 (all aluminum)
		Hydraulic power system	Hydraulic system operation is controlled by cordless remote control (with fixed button fixed operation). Realize top lifting, wing flapping, stage turning, hydraulic leg lifting
		Stage step ladder	2, aluminum pattern pedal + steel armrest
Other optional parts			Lighting, led screen, generator

2 bridge semi-hanging bottom plate: the axle adopts 13 tons Fuhua Bridge, with ebs, 10.00r20 steel wire tire, 90# traction pin (assembled type, another 50# pin), and 2 mechanical hand-cranked legs at the front. There are also 4 hydraulic legs (with automatic mechanical locking mechanism) in front and rear.

External power supply
The 220v external power supply is used to realize various lighting power supply in the cabin.The electrical circuit is reserved in the car, and the specific location is provided by the purchaser.

Packaging & Shipping

1,Shipping term:whole vehicle or in parts,by container or by bulk,standard seaworthy wooden boxes are available.
2,Delivery time:10-15 days after deposit.
3,Delivery term:EXW,FOB,CFR,CIF etc.

FAQ Q1:What's the MOQ?

A:1 set for quality checking is workable.

Q2:What's the process of an order?
A:Firstly,buyer and seller confirm all the requirements and quotation.

Secondly,buyer pay 30% deposit by T/T,seller start production,

Thirdly,seller send photos of the finished vehicle to buyer,buyer pay the 70% balance.

Fourthly,seller arrange land transportation and shipment to buyer's destination port.

Q3:Is it ok to print buyer's logo on the vehicle?
A:Yes.

Our Services

1. Guarantee the whole car for one year.
2. The professional technical team will provide you and your end users with the services of various product problems.
3. Strong r&d team to meet customer needs.: style, color, steering wheel position, etc.
4. Show your order flow from time to time via photos, video, what-app, or email.
5. Tailor solutions and marketing plans to your local market to expand it.
