Hot Air Circulating Industrial Freeze Dried Fruit Cassava Vacuum Drying Oven Milk Catfish Fish Drying Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Cheap Dried Lemon Prunes Fruit Drier Flower Drying Machine Dehydrator Machine to Dehydrate Garlic
-
Vegetable Dryer Freeze Dried Food Potato Drying Big Dehydrator Machine That Can Dry Up to 300kg
-
Heat Pump Dryer Turmeric Food Meat Drying Machine 12 Trays Milk Tomatoes Drier 20 Tray Dehydrator
-
Electric Food Garlic Dehydrator Onion Dehydration Fruit Freeze Dryer Drying Machine Equipment
-
Bay Leaf Fruit Dried Mango Processing 80 Tray Dehydrator Machine Food Potato Washing and Drying Machine
-
Pepper Drying Machine Commercial Fruit Dehydrator Professional Gas Food Fruit Dryer Dehydrator
Product Description
Product Description
Introduction:
Hot air circulating drying oven applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditional oven to 35-45% of the present one, the highest heat efficiency can reach 50%. GD series special drying oven adopts the axial flow fan, with automatic constant temperature control system. Its thermal efficiency is more than 95%, which uses electricity as heating source and adopts convective heat transfer method to heat the air by axial flow fan and heat exchanger . Fresh air from the air inlet supplement, waste damp is out from the dehumidification system. Constantly add fresh air and discharge damp to keep the correct relative humidity in the oven. The biggest characteristic of this series of drying oven is that most hot air is cycling in the cabinet, the entire cycle is closed, so as to enhance the heat transfer, saving the energy.
Specification
Model | GD-C-0 | GD-C-I | GD-C-II | GD-C-III | GD-C-IV | ||||
production capacity (kg/time) | 60 | 120 | 240 | 360 | 480 | ||||
evaporation area (㎡) | 7 | 14 | 27 | 41 | 54 | ||||
trays (pcs) | 24 | 48 | 96 | 144 | 192 | ||||
Collo-cate pushcart | 1 | 2 | 4 | 6 | 8 | ||||
temperature range | room temperature-150℃ | ||||||||
overall dimensions（mm） | 1470*1160*1980 | 2390*1160*1980 | 2390*2160*1980 | 3350*2160*1980 | 4380*2160*1980 | ||||
power (Kw) | 9 | 15 | 27 | 42 | 54 | ||||
heat radiating area (㎡ | 15 | 23 | 48 | 72 | 96 | ||||
steam consumption (kg/h) | 15 | 23 | 48 | 72 | 96 | ||||
Steam pressure | 0.2-0.8Mpa | ||||||||
circulating fans quantity(pcs) | 1 | 1 | 2 | 3 | 4 | ||||
circulating fans performance | 3600㎡/h; 0.45KW; | ||||||||
Dehumidifying fan | 0.25kw/380V | 0.25kw/380V | 0.37kw/380V | 0.55kw/380V | 0.55kw/380V | ||||
Features:
1. Hot air is circled inside the oven, so ensure a high drying efficiency and energy-saving.
2. It used enhanced ventilation, and euipped with adjustable air distributor, lead to a uniform drying.
3. It’s batch operation, so can adjust process condition anytime. Thus can change product from time to time, so very suitable for
4. drying high-value product or small-batch product.
5. Feed and dry material in tray, easy for load and unload, without any damage for the raw material, clean conveniently.
6. With low noise and steady operation, and the temperature can be controlled automatically. Total conform with GMP requirement.
7. With a widely applied field, can be suitable for all kinds of raw material.It’s a comprehensive dryer.
Product Detail
Application:
The drying machine is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy,chemical, foodstuff industry etc.
FAQ
1: What are your advantages compared with your competitors?
With rich industry experience and strict Product Quality Control systems, we provide:
(1) High-quality and stable machine
(2) High-quality customer service and after-sales service with prompt response
(3) Fast and timely delivery
2: Are you manufacturer?
Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
3: Do you have English Manual for each machinery?
Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
4.Can I print my Logo on the machine?
Yes, sure. We can provide professional customized logo services for customers.
5: How does your factory do regarding quality control ?
Quality is priority.We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
6.Do you provide any recipes for the product?
Yes, we will provide a basic recipe. And clients can add different color and flavor on that base.
With rich industry experience and strict Product Quality Control systems, we provide:
(1) High-quality and stable machine
(2) High-quality customer service and after-sales service with prompt response
(3) Fast and timely delivery
2: Are you manufacturer?
Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
3: Do you have English Manual for each machinery?
Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
4.Can I print my Logo on the machine?
Yes, sure. We can provide professional customized logo services for customers.
5: How does your factory do regarding quality control ?
Quality is priority.We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
6.Do you provide any recipes for the product?
Yes, we will provide a basic recipe. And clients can add different color and flavor on that base.
Packaging & Shipping
1.Install waterproof membrane to reduce dust and water pollution.
2.Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Delivery Time
For stock type, we can send within 48hrs after confirming order.For customized type, delivery date need to be negotiated before taking order.
Company Profile

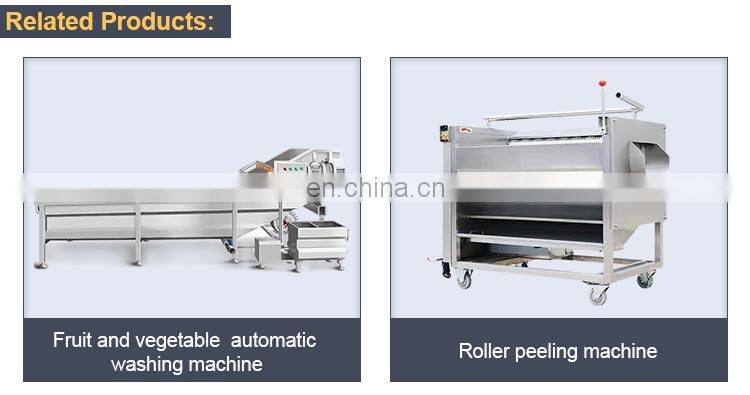

Related Product
