Stainless 400l 5000 Vodka Beer Grape Fermenter 3 Gallon Fermenters 10l Small Fermentation Tank Tub Homebrew

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Introduction:

The fermentation tank is made of austenitic stainless steel, and the cooling jacket is in the form of a honeycomb jacket. There are jackets on both the tank body and the cone bottom, which can effectively improve the cooling rate. Different proportions of jacket heat exchange can be set according to the customer's process requirements, the bottom is a small cone bottom of 60°, which is designed for fermentation and improvement of beer and reproduction of yeast; PU insulation is adopted for insulation, which can work outdoors and save plant costs. The outer skin is made of fully welded stainless steel, manhole, CIP system, thermometer interface, sampling port and other components.

Specification

Model	Material	Heating area	Diameter (m)	Height(m)	Production capacity	Volume in US Gallon
GD-100	304	0.5㎡	0.65	1.5	100L/Day	26US Gallon
GD-200	304	0.8㎡	0.85	1.6	200L/Day	53US Gallon
GD-300	304	1.2㎡	0.96	1.7	300L/Day	79US Gallon
GD-500	304	1.8㎡	1.16	2.3	500L/Day	132US Gallon
GD-1000	304	2.6㎡	1.36	2.5	1000L/Day	264US Gallon
GD-2000	304	3.6㎡	1.56	2.85	2000L/Day	528US Gallon
GD-3000	304	4.5㎡	1.76	3.8	3000L/Day	792US Gallon
GD-5000	304	7.2㎡	1.96	4.4	5000L/Day	1320US Gallon

Features:

1、The bottom is conical to facilitate the discharge of yeast at any time during the production process, and cohesive yeast is required.
2、The tank itself has a cooling device, which is convenient to control the fermentation temperature, easy to control the production, shorten the fermentation period, less chance of contamination, and stable wine quality.
3、There is a thermal insulation device outside the tank, which can be placed outdoors, reducing construction investment, saving floor space, and facilitating expansion.
4、A sealed tank is used to facilitate CO2 washing and CO2 recovery, and fermentation can also be carried out under a certain pressure. It can be used as a fermentation tank or a wine storage tank, which can combine fermentation and wine storage into one.
5、The fermentation tank can be controlled by instrument or microcomputer, which is easy to operate and manage.
6、Conical tanks are suitable for both bottom fermentation and top fermentation.
7、CIP automatic cleaning device can be used, easy to clean

Product Detail

Application:

Fermentation tanks are widely used in dairy products, beverages, bioengineering, pharmaceuticals, fine chemicals and other industries. The tank body is provided with an interlayer insulation layer, which can be heated, cooled and insulated. The tank body and the upper and lower filling heads (or cones) are processed by spinning R angle, the inner wall of the tank is mirror polished, there is no sanitary dead angle, and the fully enclosed design ensures that the materials are always mixed and fermented in a pollution-free state, and the equipment is equipped with air Breathing holes, CIP cleaning nozzles, manholes and other
devices.

FAQ

1: What are your advantages compared with your competitors?
With rich industry experience and strict Product Quality Control systems, we provide:
(1) High-quality and stable machine
(2) High-quality customer service and after-sales service with prompt response
(3) Fast and timely delivery
2: Are you manufacturer?
Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
3: Do you have English Manual for each machinery?
Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
4.Can I print my Logo on the machine?
Yes, sure. We can provide professional customized logo services for customers.
5: How does your factory do regarding quality control ?
Quality is priority.We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
6.Do you provide any recipes for the product?
Yes, we will provide a basic recipe. And clients can add different color and flavor on that base.

Packaging & Shipping

1.Install waterproof membrane to reduce dust and water pollution.

2.Standard wooden boxes are used as outer packaging to reduce bumps in international transportation

Delivery Time

For stock type, we can send within 48hrs after confirming order.
For customized type, delivery date need to be negotiated before taking order.

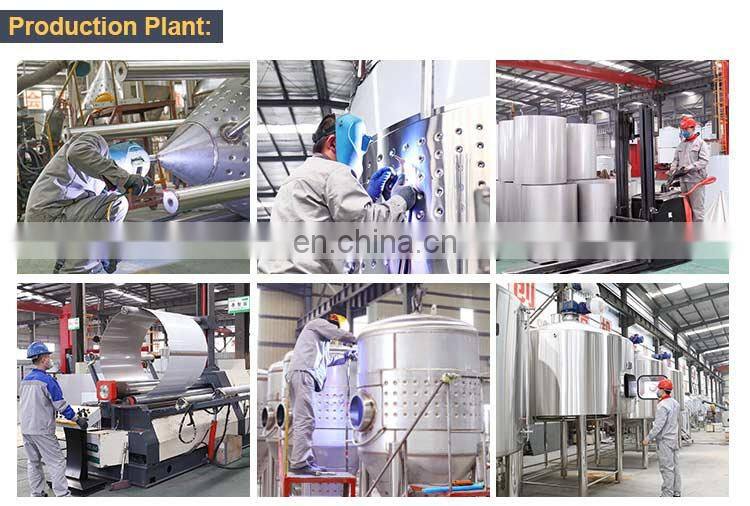

Company Profile
