handheld pvc floor hot air welding machine

handheld pvc floor hot air welding machine

Our company have two model hot air gun , Model H-XA and Model H-A .

The hand gun to weld all different types of thermoplastic materials , for roofing , flooring , tarps, plastic . fabrication , etc

Feature

1.Optimal performance/best price

2.High speed welding enables high production

3.stepless adjustment of temperature

4.Easy welding with ergonomic handle

5.Mainenance friendly

6.Large accessories range

Technical Parameter

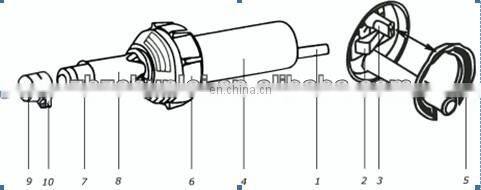

Structure chart

1. Power thread                    4. The outer cover             7. Generating heat machine

2. The switch                        5. Filter the network          8. Protect and cover
3. Temperature control          6. The rubber is enclosed    9. Jet-propelled mouth
10. Regular screw

Maintenance

1. Clean dirty air filter network or changed the filter screen with little brushes.
2. brushes and cleans and weld the spray nozzle with the steel.
3. When the carbon brush is consumed to the minimum length, electrical machinery switches will be closed automatically. This machines must be checked by your service centre. The service life of the carbon brush welded on the electrical machinery of the tool is 1600 job hours probably

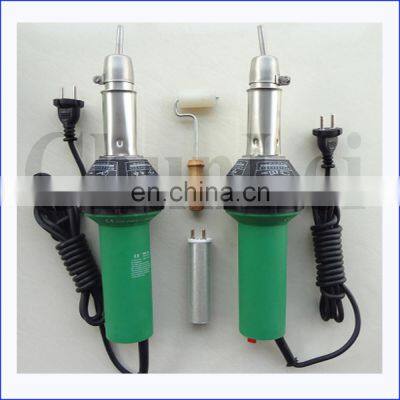

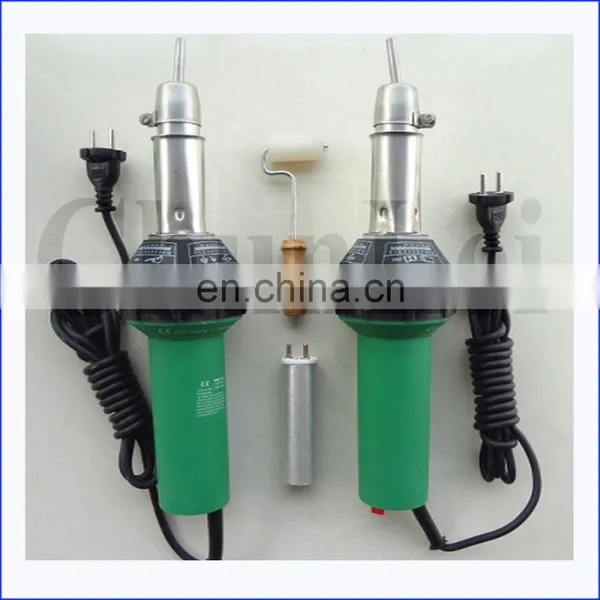

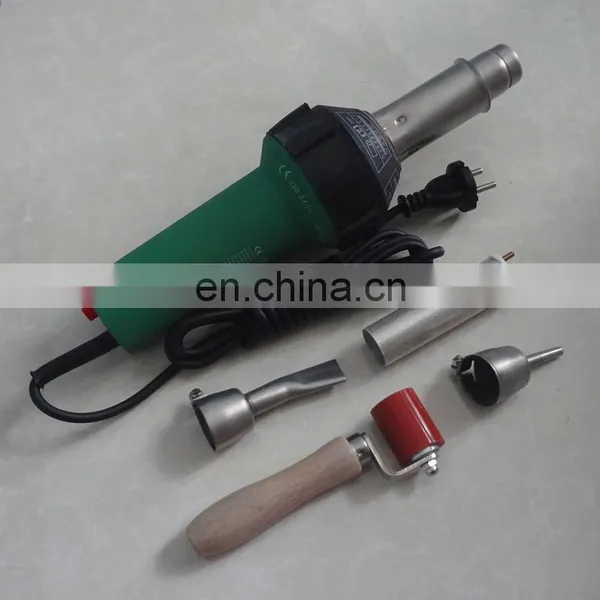

Our hot air gun machine include one extra heater part , one Pencil Tip Nozzle ,one Pressure Silicon Roller ,  one Flat tip Nozzle . Also regarding the Flat nozzle , the machine meet 20mm and 40mm width nozzle .
