Home > Tools & Hardware > Power Tools > Heat Gun > 1000W Hot Air Welding Gun Heat Gun

1000W Hot Air Welding Gun Heat Gun

1000W Hot Air Welding Gun Heat Gun photo-1

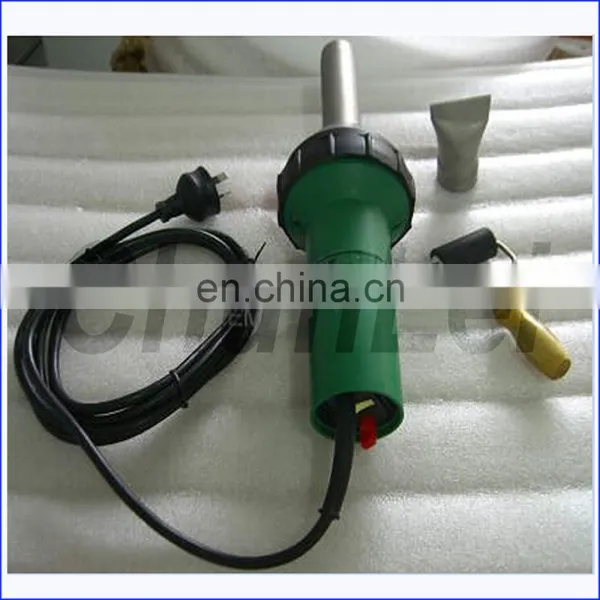

1000W Hot Air Welding Gun Heat Gun photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2005
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

1000W hot air welding gun heat gun

The machine can be extensively used in advertisement industry. It apply to joint heat melted material such as PVC, PP, PE, etc

Technical data

Model H-A
Voltage110V/220V
Power1000W
Frequency50/60Hz
Max temperature30-580 degree centigrade
Air flow180L/min
Pressure stat2500Pa(25mbar)
Gross weight2KG

Maintenance

1. Clean dirty air filter network or changed the filter screen with little brushes
2. brushes and cleans and weld the spray nozzle with the steel.
3. When the carbon brush is consumed to the minimum length, electrical machinery switches will be closed automatically. This machines must be checked by your service centre. The service life of the carbon brush welded on the electrical machinery of the tool is 1600 job hours probably

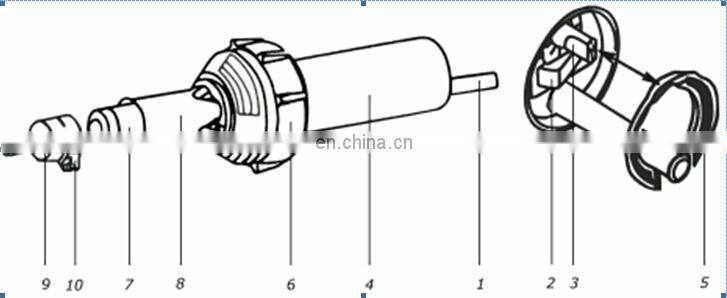

Structure chart

1000W hot air welding gun heat gun



1. Power thread        4. The outer cover           7. Generating heat machine

2. The switch           5. Filter the network         8. Protect and cover

3. Temperature control   6. The rubber is enclosed     9. Jet-propelled mouth

10. Regular screw



Regarding our machine , if you need more information , please contact us , we will do our best for customer .
