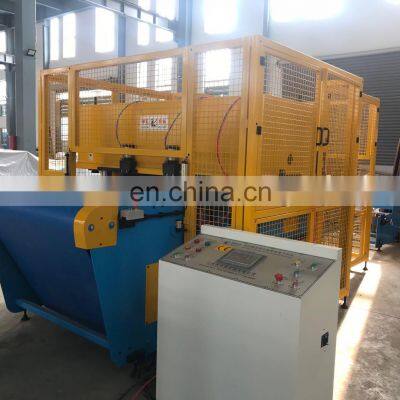

Camouflage Fabric Cutting Machine photo-2

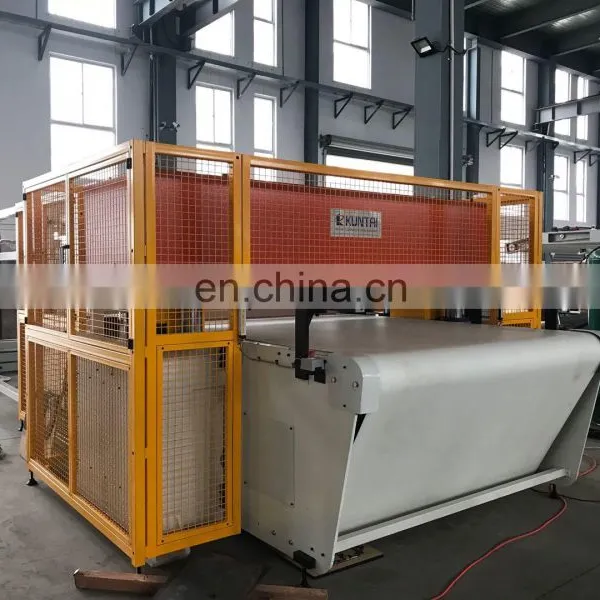

Camouflage Fabric Cutting Machine photo-3
Camouflage Fabric Cutting Machine photo-4

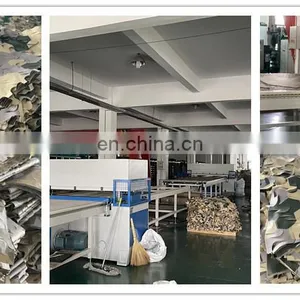

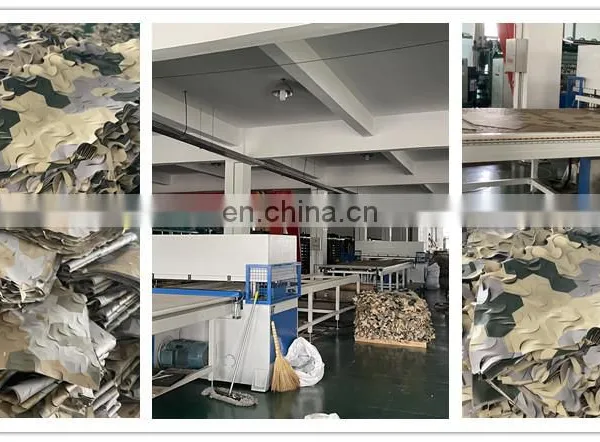

Camouflage Fabric Cutting Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Medical Supplies Die Cutting Machine

Football Panel Die Cut Press

Packaging Materials Hydraulic Cutting Press

Automatic Hydraulic Conveyor Belt Four-Column Die Cutting Press Machine

Hydraulic Die Cutting Machine

Camouflage Fabric Cutting Machine



Product Description

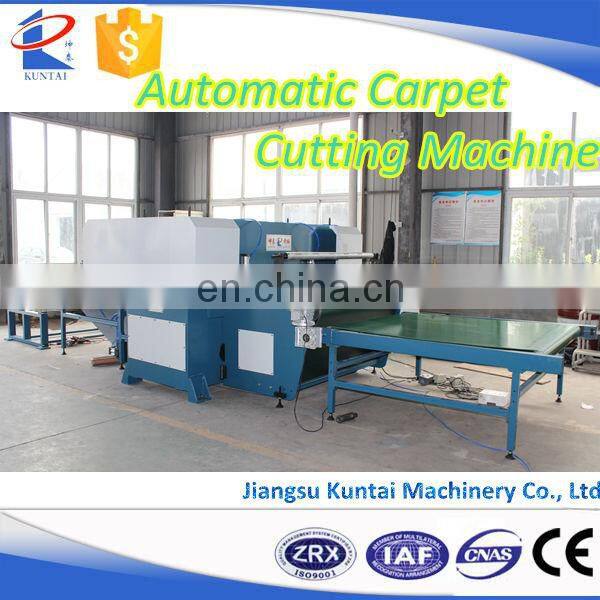

  Camouflage Fabric Cutting Machine

Camouflage fabric cutting machine

1. This type of die cutting machine with conveyor belt is used for continuous and large-batch cutting of nonmetal materials in rolls, such as carpet and car interior materials, ball panel materials, leather, rubber, film, fabric and other materials.
2. The materials conveying part adopts PLC control. The materials are driven by servo motor and feed in from one side of the machine and finished products come out from the other side. The feeding is precise and automatic. The feeding length can be adjusted conveniently through touch screen.
3. The machine can be installed with four-column guiding, double-crank balancing, four-column blocking fine-adjustment mechanism and specially designed hydraulic control system, providing high speed and precise cutting operation. Central oil supply automatic lubricating device reduces the abrasion of all movable connecting parts to the minimum.
4. The die cutter or cutting mould can be fastened by pneumatic clamp device so as to make its replacement convenient and prompt.
5. Machines with special specifications can be available on request.


Key Points:

Conveyor Belt: Germany or Switzerland Made or Customizable

Oil Pump: Germany Made or Customizable

Special Hydraulic System lowers the operation noise

Sealing Ring: Made in Italy, Customizable
Press Switch: Made in Italy, Customizable
Cutting Switch: Made in Germany, Customizable

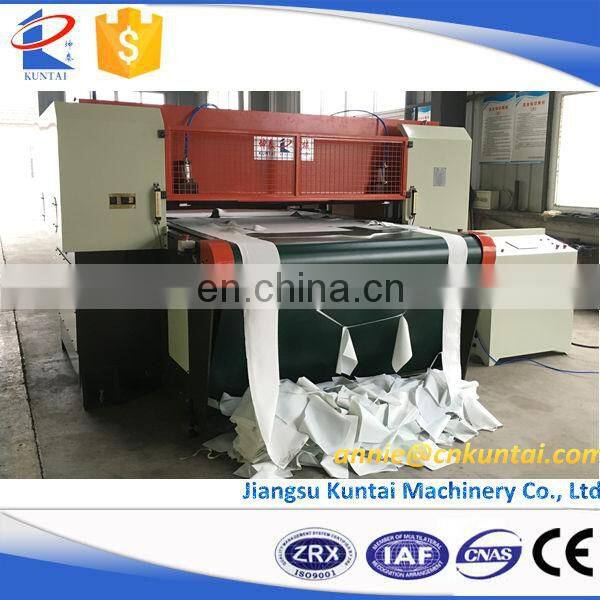

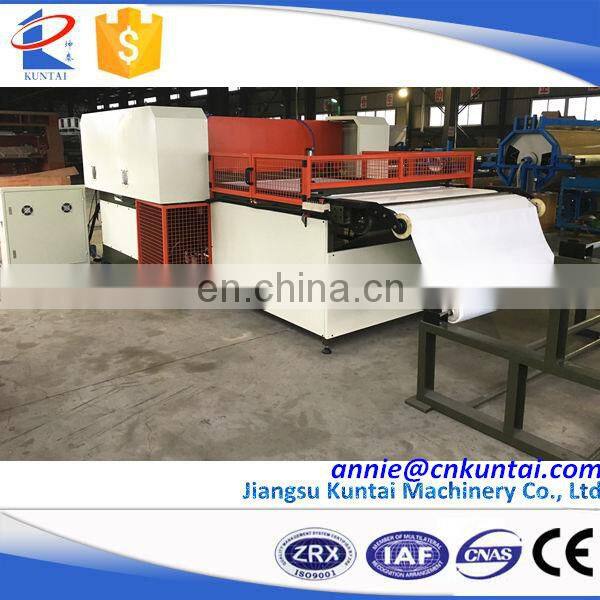

Camouflage fabric cutting machine

Camouflage fabric cutting machineCamouflage fabric cutting machineCamouflage fabric cutting machine



Technical Spec:

Maximum Cutting Force 40T 60T 250T
Cutting Area (mm) 1250*800 1250*1200/1600*1200 1800*1200/Customizable
Tension Distance (mm) 25-135 25-135 25-175/Customizable
Motor Power (kw) 4 5.5 22kw
Estimated G.W (kg) 5000 7500 15900

Automatic Hydraulic Conveyor Belt Four-Column Die Cutting Press Machine Application:

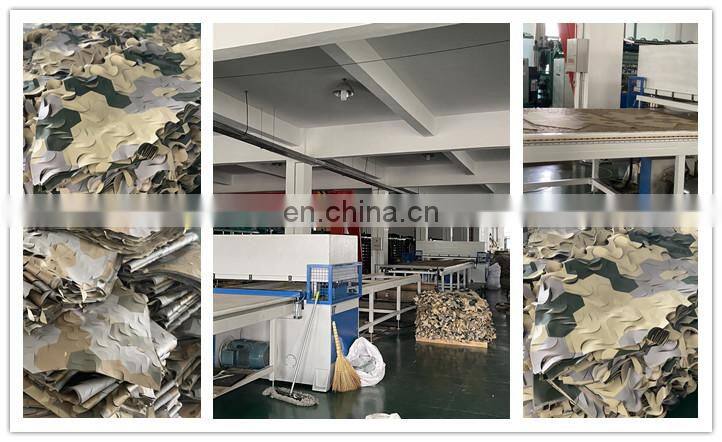

Camouflage fabric cutting machine
Camouflage fabric cutting machine
Camouflage fabric cutting machine
Packaging & Shipping

Automatic Hydraulic Conveyor Belt Four-Column Die Cutting Press Machine

Inner Package: Protective Film, etc

Outside Package: Plywood Case

  • Machines well packed with protective film and loaded in plywood case or export container;
  • English version operation manual and technical data;
  • One-Year-Period wear parts;
  • Tool kit

Camouflage fabric cutting machine



Our Services

 Automatic Hydraulic Conveyor Belt Four-Column Die Cutting Press Machine

Camouflage fabric cutting machine





Company Information

Since 1985, we have been manufacturing various cutting machines for different industries, such as packaging industry, footwear industry, garment industry, etc. Strong engineering power and satisfactory aftersale service consolidates our leading place in both domestic market and overseas market.

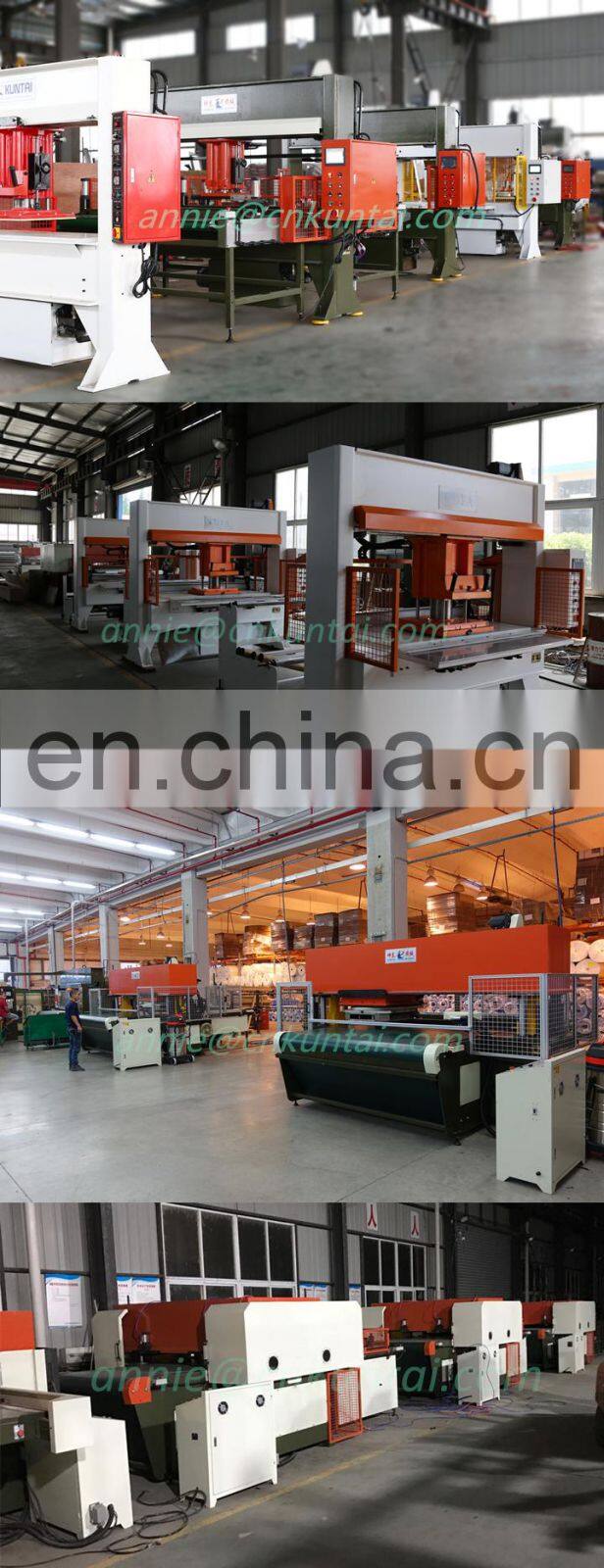

Camouflage fabric cutting machineCamouflage fabric cutting machine

Other types of Automatic Hydraulic Conveyor Belt Four-Column Die Cutting Press Machine

Camouflage fabric cutting machine

Camouflage fabric cutting machine
