Application
This kind of Shoe Cutting Machine is mainly suitable for die cutting single or multiple layers of nonmetal materials by die cutter. It is widly used in many industries, such as:
- Automotive interior
- Sheet material industry supplies
- Floor mats
- Abrasives, abrasive paper/sand paper...
- Leather and leathergoods – shoe uppers, wallets, purses, belts
- Lampshades – fabric or plastic, with or without cut outs
- Garment – components for hats, ties, collars, shoulder pads
- Cork gaskets and mats
- Filters for machinery, breathing apparatus and the medical industry
- Foam and sponge – gaskets, packaging, consumer products
- Footwear components – shoes, insoles, insole socks, uppers, straps
- Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets
- Rubber – gaskets, seals, washers
- Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties
- Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.
Features of Shoe Cutting Machine
1. This type of shoe cutting machines are widely used for cutting applications of nonmetal materials, especially hard materials. Such products as insoles, football, volleyball or tennis panels, car interior decoration materials and medical supplies are made by this machine.
2. Servo motor makes accurate feeding possible and controls horizontal movement of the cutting head. Multilayers of materials can be clamped by the cylinder for step feeding. Other feeding methods such as conveyor belt type are also available on request.
3. The feeding length can be easily set by the human-computer interface or PLC control panel (Optional).
4. Special hydraulic system makes low noise possible and saves oil.
5. High quality and imported oil pump and other parts are available on request.
6. Because the machine is well controlled by PLC control panel, only one worker is required for the whole operation. Therefore, the production efficiency of this kind of die cutting machine is 3 to 5 times that of a normal cutting machine and the power can be saved by about 2/3.
7. Maximum cutting force of the die cutting machine caters to customer’s specific application requirements.
Option of Shoe Cutting Machine
- Rotating head
- Machine Color
-
Servo Motor
-
Imported oil pump
-
Roll Unwinding Frame
-
Bed Size
-
Feeding Method
- Parts Brands
Technical Information(Customizable)--Shoe Cutting Machine
| KT-C250 | KT-C250B | KT-C250C | KT-C500 | KT-C500 B | KT-C500C | |
|---|---|---|---|---|---|---|
| Cutting Force | 25 tons | 25 tons | 50 tons | 50 tons |
50 tons
|
50 tons |
| Working Table(mm) | 1600*500 | 1800*500 | 2000*500 | 1600*500 | 1800*500 | 2000*500 |
| Stroke(mm) | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm |
| Travel Head Size(mm) |
500*500 |
500*500 | 500*500 | 500*500 | 500*500 | 500*500 |
| Motor Power | 2.2kw | 2.2kw | 2.2kw | 4.0kw | 4.0kw | 4.0kw |
| Approx. Overall Dimensions (WxDxH) | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 |
| G.W | 1800 kg | 2100 kg | 3000 kg | 3000 kg | 3800 kg | 5000 kg |
Rotating Head Cutting Machine/Travelling Head Cutting Press for Leather/PVC Desk Pad/Shoes Insoles/Ball Panels

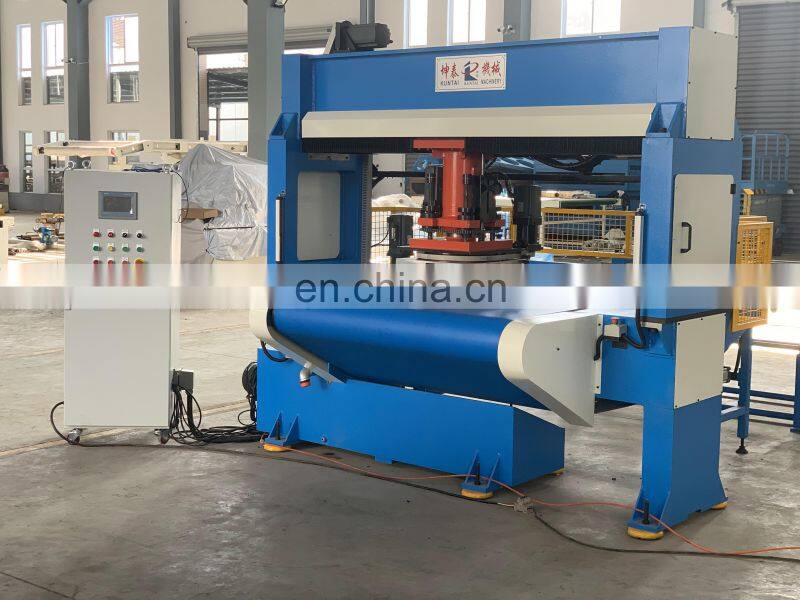

Shoe Cutting Machine with Conveyor Belt Type Auto Feeding Method

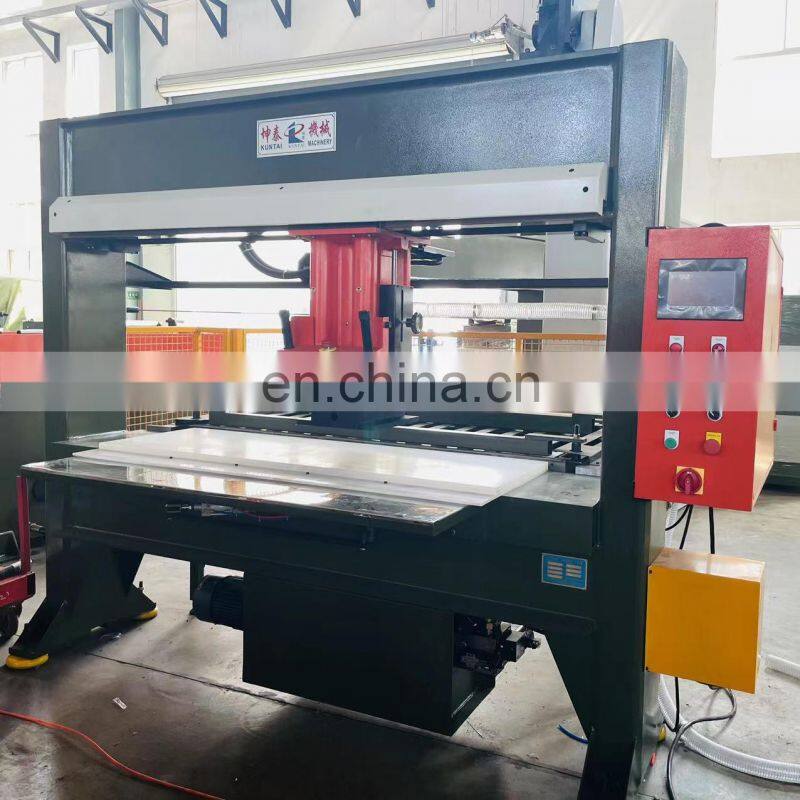

Top Quality Hydraulic Travel Head Leather Die Cutting Machine
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Cutting machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Top Quality Hydraulic Travel Head Leather Die Cutting Machine
Since 1985, we have been manufacturing various die cutting machines and laminating machines for different industries, such as packaging industry, footwear industry, garment industry, upholstery industry and so on. Strong engineering power and satisfactory aftersales service consolidate our leading place in both domestic market and overseas market.
Shoe Cutting Machine
