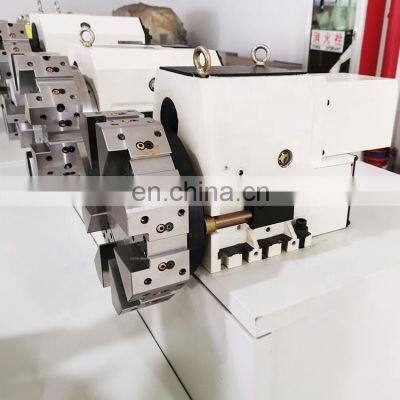

New XWD120-6 electric turret ,cnc lathe slant lathe live tool turret 6 position hydraulic cnc turret

Name: New XWD120-6 electric turret ,cnc lathe slant lathe live tool turret 6 position hydraulic cnc turret
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Item	Unit	Parameter
Center height	mm	63/80/100
Allowed number of tools	N	6;8
Time for 45°ratation and clamping	sec.	1.8/1.8/2.1
Time for 180°ratation and clamping	sec.	2.9/2.9/3.2
Max tangential torque	KNm	0.7/1.5/3.0
Max axial torque	KNm	0.8/1.6/3.5
The max bias torque	Nm	10/12/25
Repeatability accuracy	mm	≤0.005
Indexing accuracy		±7"
Motor power	W	90/140/140
Motor speed	r/min	900/1400/1400
Net weight (Without tool disc)	Kg	35/50/80

Model	Dimension
	H	A	B	C	D	E	F	G	I
BWD63-8	63	20	8-φ11	26	145	55	323	205	140
BWD80-8	80	25	6-φ11	26	149	65	314	238	160
BWD100-8	100	32	8-φ13	32	172	80	350	280	205
	J	K	L	M	N	O	P	Q	R
BWD63-8	272	20	17	20	20	190	/	175	24
BWD80-8	376	25	22	25	32	270	11	215	32
BWD100-8	456	25	22	30	40	330	/	252	34
	S	T	U	V	W	X
BWD63-8	30	30	134	165	185	G1/4"
BWD80-8	32	32	149	190	210	G3/8"
BWD100-8	40	30	188	220	250	G3/8"

Company Profile

Wuxi Fagor Technology Co.,Ltd.is specialized in CNC machine tools accessories .The main products of our company are 4 axis rotary table,5 axis rotary table,water pump, chuck, coupling, end mill grinder,chipping machine,cutter barrel,three-color lamp,knife tower and other accessories With high precision and full varieties are deeply trusted and appreciated by customers.At the same time we have a strong sales team and experienced core service team.we are ready to provide CNC machine tool accessories one-stop solution for you,looking forward to cooperating with you and going to a win-win situation

FAQ

Q: How long is the quality guarantee?
A: One year guarantee.

Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.

Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.

Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.

Q: What kind of packing do you send?
A: We use high quality cartons, internal environmental protection buffer material.

Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.
