Home > Products > Rotary Table > 170mm 250mm 320mm CNC Milling Machine Use Vertical Indexing Table 4 Axis Powerful Brake Rotary Table

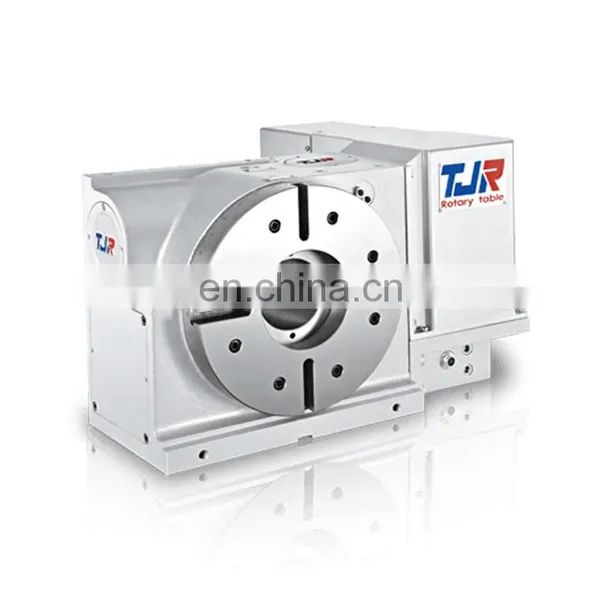

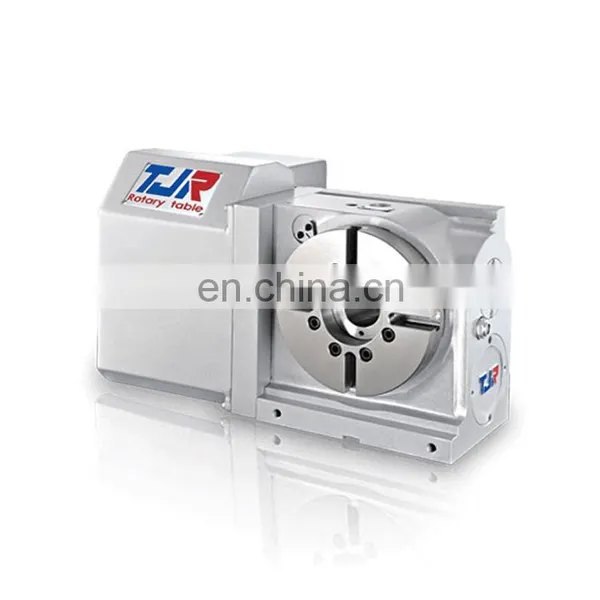

170mm 250mm 320mm CNC Milling Machine Use Vertical Indexing Table 4 Axis Powerful Brake Rotary Table
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
4th Axis Rotary Table Turntable Hydraulic Brake High Accuracy VMC Index Table
-
Pneumatic Brake High Rigidity 250mm 4th Axis TJR Rotary Table Index Table VMC Table
-
High Quality 4th Axis Rotary Table Manual Tailstock for TJR Rotary Table VMC Worktable Tailstock Taiwan Made
-
Pneumatic Brake 5th Axis Rotary Table CNC Machine TJR Tilting Index Rotary Table
-
FAR-170 5th Axis CNC Tilting Rotary Table Dual Arm CNC Machine 3+2 Axis Powerful Pneumatic Brake
-
TJR Rotary Table 320mm 4 Axis Index Table Japan Made Warm and Warm Gear High Value
Product Description
Product Description
Specification
item | value |
Place of Origin | China |
Condition | New |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, Construction works , Energy & Mining, CNC machine tools center |
After Warranty Service | Online support |
Local Service Location | none |
Showroom Location | none |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Brand Name | TJR |
Model Number | AR/HR |
Warranty | 1 Year |
Core Components | PLC, Bearing, Motor, Gear |
FAQ
Q: How long is the quality guarantee?
A: One year.
Q: Where is the place of origin?
A: We have two origin places, Taiwan factory and Kunshan of China factory.
Q: How long is the delivery time?
A: 4 to 6 weeks from Taiwan and 2 weeks from Kunshan.
Q: How much is the accuracy of the turntable?
A: AR series and HR series is 0.001°.Any Angle of one thousandth of a degree.
HI series( hirth coupling hydraulic brake) is 1°or 5°.
Dual-axis single-arm/dual-arm type AR series and HR series is 0.001°.
Q: How to choose the rotary table?
A: You can choose according to the material ,weight,shape and size of workpiece.
