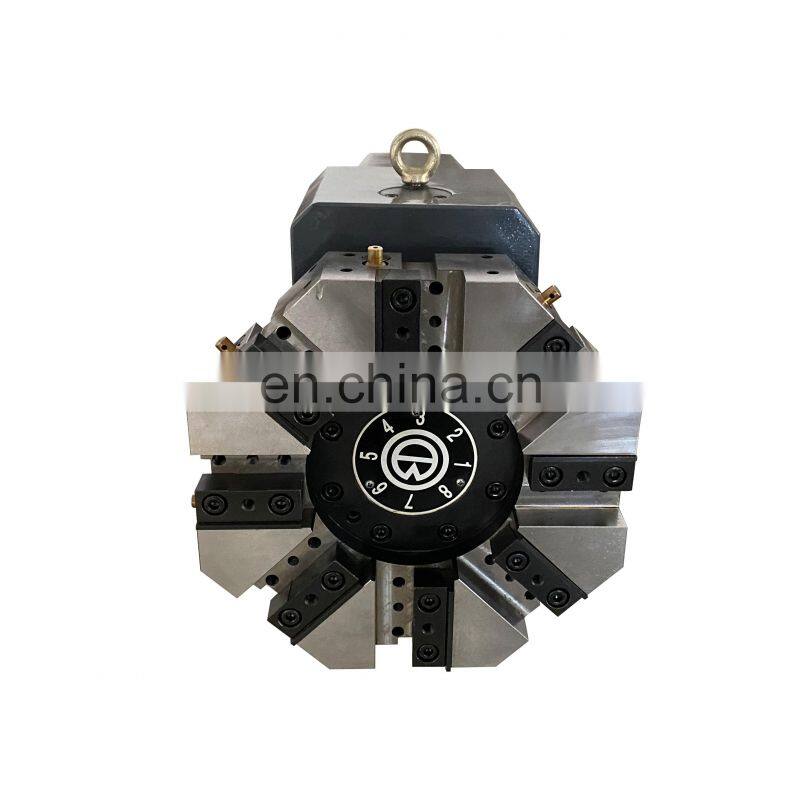

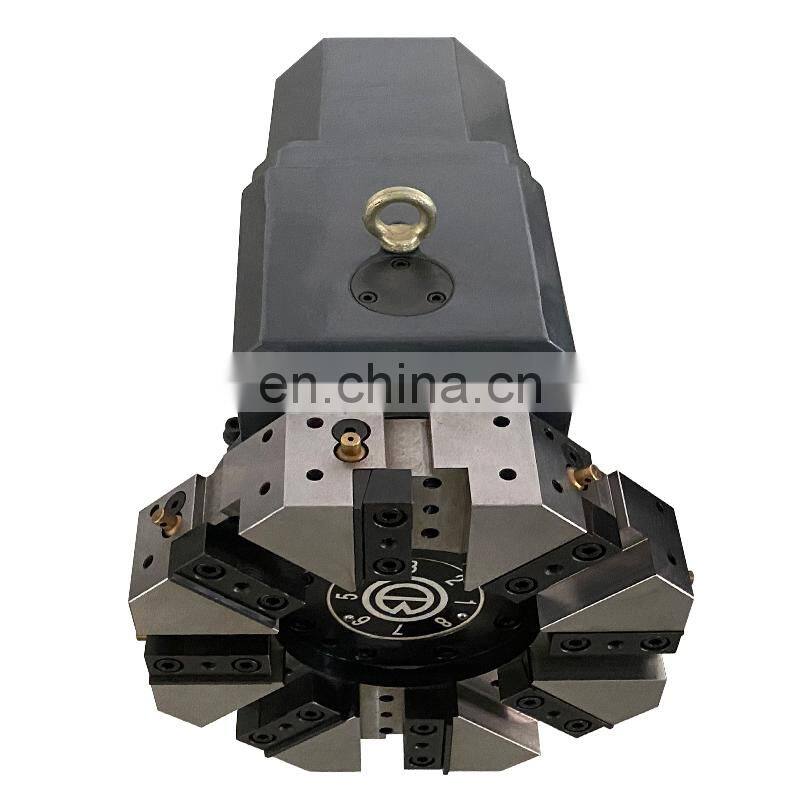

Cheaper BWD Series 6 Position Cnc Lathe Power Turret Quick Change Tool Holder Turret
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Precision R Series 12 Station Radial Servo Power Turret Slant Lathe Power Tooling Turret
-
D Series Axial Servo Power Tooling Turret for nc Lathe Slant Lathe 12 Position VDI Servo Turret
-
D Series VDI Servo Turret nc Lathe Servo Power Tooling Turret 12 Position
-
SLT Series Servo Cnc Turret Tool Turret for Cnc Lathe 8 12 Position Lathe Turret
-
Automatic Cnc Tool Holder for Lathe Turret,turret Tool Lathe,live Tooling Lathe Turret With Cnc Tool Holder for Lathe Turret
-
XWD Series Quick Change Turret Lathe Tool Post Cnc Lathe Turret Tool Holder With 6 Position Tool Turret for Cnc Lathe
Product Description
Product Description
Item | Unit | Parameter |
Center height | mm | 63/80/100 |
Allowed number of tools | N | 6;8 |
Time for 45°ratation and clamping | sec. | 1.8/1.8/2.1 |
Time for 180°ratation and clamping | sec. | 2.9/2.9/3.2 |
Max tangential torque | KNm | 0.7/1.5/3.0 |
Max axial torque | KNm | 0.8/1.6/3.5 |
The max bias torque | Nm | 10/12/25 |
Repeatability accuracy | mm | ≤0.005 |
Indexing accuracy | ±7" | |
Motor power | W | 90/140/140 |
Motor speed | r/min | 900/1400/1400 |
Net weight (Without tool disc) | Kg | 35/50/80 |
Model | Dimension | ||||||||||||||||
H | A | B | C | D | E | F | G | I | |||||||||
BWD63-8 | 63 | 20 | 8-φ11 | 26 | 145 | 55 | 323 | 205 | 140 | ||||||||
BWD80-8 | 80 | 25 | 6-φ11 | 26 | 149 | 65 | 314 | 238 | 160 | ||||||||
BWD100-8 | 100 | 32 | 8-φ13 | 32 | 172 | 80 | 350 | 280 | 205 | ||||||||
J | K | L | M | N | O | P | Q | R | |||||||||
BWD63-8 | 272 | 20 | 17 | 20 | 20 | 190 | / | 175 | 24 | ||||||||
BWD80-8 | 376 | 25 | 22 | 25 | 32 | 270 | 11 | 215 | 32 | ||||||||
BWD100-8 | 456 | 25 | 22 | 30 | 40 | 330 | / | 252 | 34 | ||||||||
S | T | U | V | W | X | ||||||||||||
BWD63-8 | 30 | 30 | 134 | 165 | 185 | G1/4" | |||||||||||
BWD80-8 | 32 | 32 | 149 | 190 | 210 | G3/8" | |||||||||||
BWD100-8 | 40 | 30 | 188 | 220 | 250 | G3/8" | |||||||||||
Company Profile
Wuxi Fagor Technology Co.,Ltd.is specialized in CNC machine tools accessories .The main products of our company are 4 axis rotary table,5 axis rotary table,water pump, chuck, coupling, end mill grinder,chipping machine,cutter barrel,three-color lamp,knife tower and other accessories With high precision and full varieties are deeply trusted and appreciated by customers.At the same time we have a strong sales team and experienced core service team.we are ready to provide CNC machine tool accessories one-stop solution for you,looking forward to cooperating with you and going to a win-win situation
FAQ
Q: How long is the quality guarantee?
A: One year guarantee.
Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.
Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.
Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q: What kind of packing do you send?
A: We use high quality cartons, internal environmental protection buffer material.
Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.
