Product Description

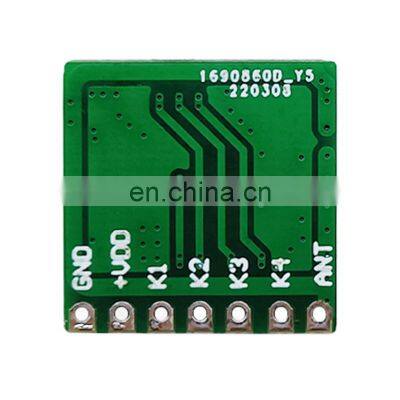

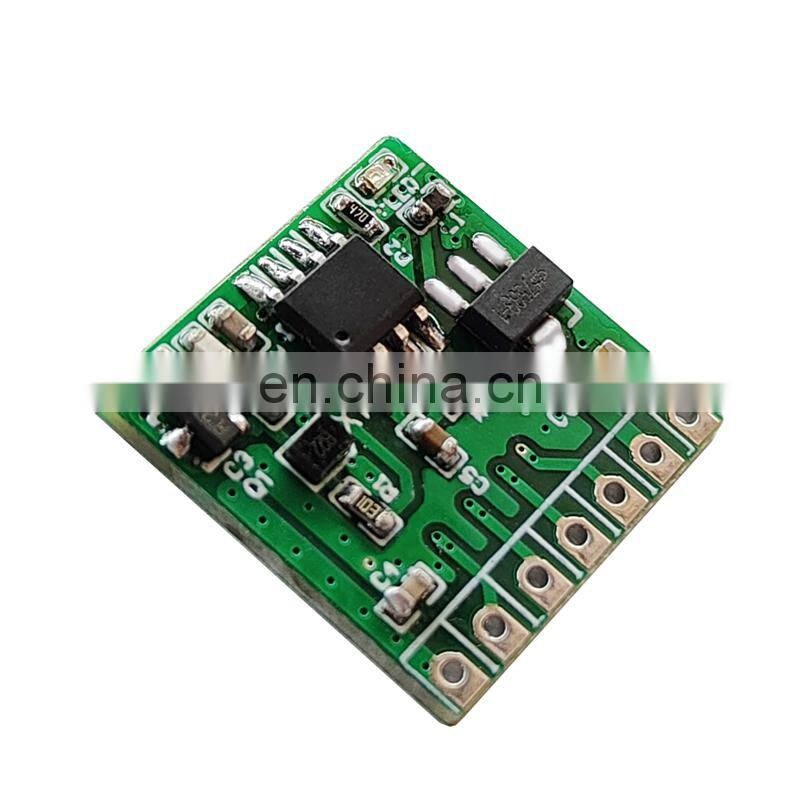

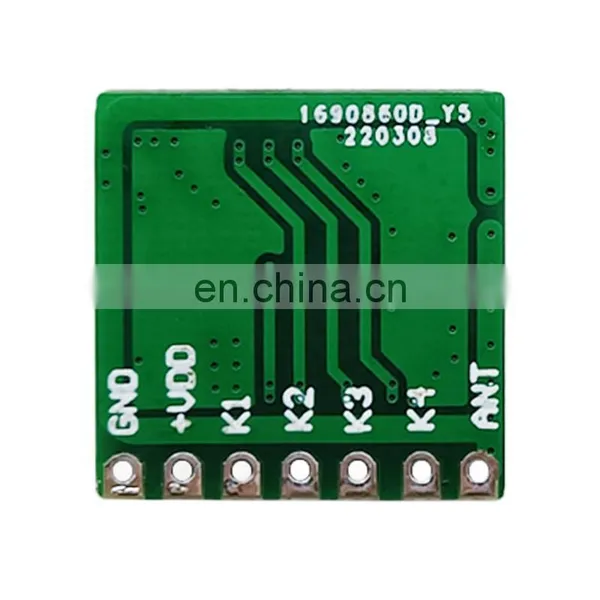

Wireless RF transmitter module parameters:
Transmit power: 6 grids (-5~-3dbm) Distance: 50~100M Working current: 4~5MA Standby current: less than 3UA Pulse width: 1450US (can be customized according to customer requirements) Working voltage: DC 3V-14V Code: EV1527 learning code, each module has a unique ID address code Customizable special code: MCU type (MOQ: 2000pcs) Data: K1, K2, K3, K4 replace the 4 buttons of the remote control, and can also be combined into 15 groups, which can be directly connected to the microcontroller for perfect control.

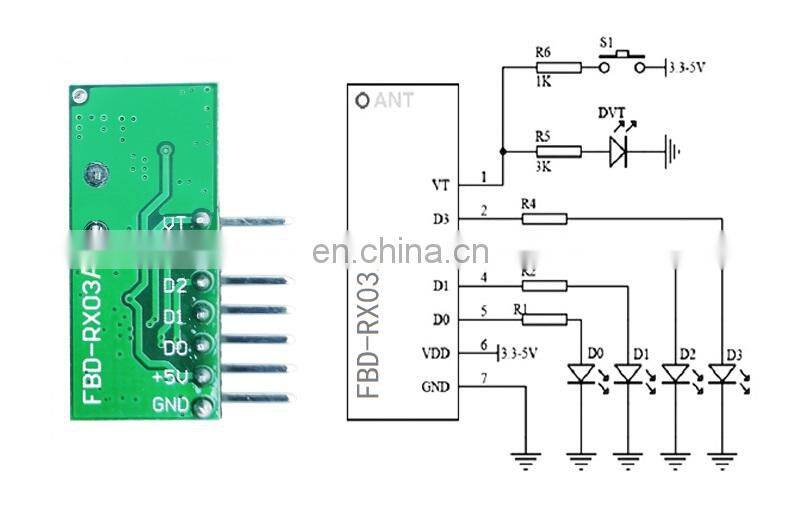

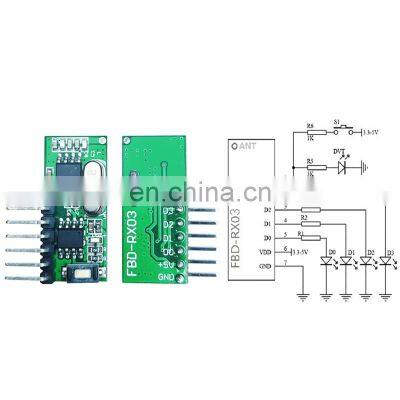

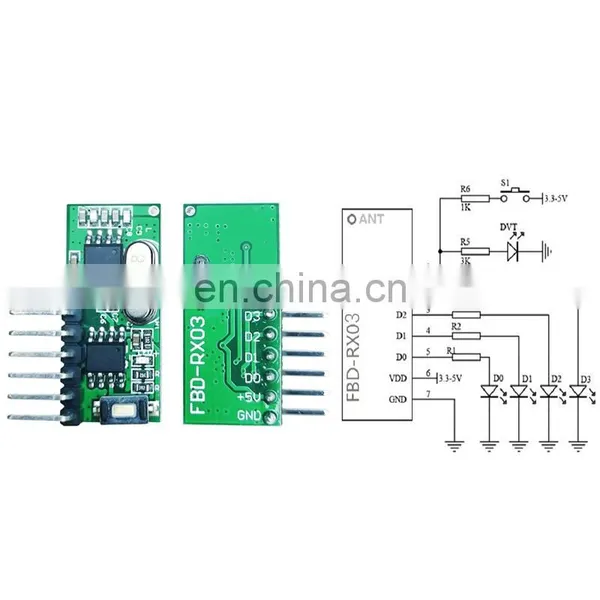

FBD-RX03A receiver module parameters
1. Working voltage: DC2.5V-5V 2. Working current: 3.7mA 3. Sensitivity: -108DBM 5. Working mode: jog, self-locking, interlocking (free conversion) 6. Support coding chip models: EV1527, PT2262, 2264, 2260, etc. When the receiver module receives the remote signal, D0, D1, D2, D3 output a high level, corresponding to the 4 buttons of the remote control "ABCD", and it is a low level when not pressed.
Specification
item
value
Model Number
FBD-TX04E  +  FBD-RX03A
Type
RF Module
Place of Origin
China
Brand Name
FBD
Chipset
1527
Packing & Delivery

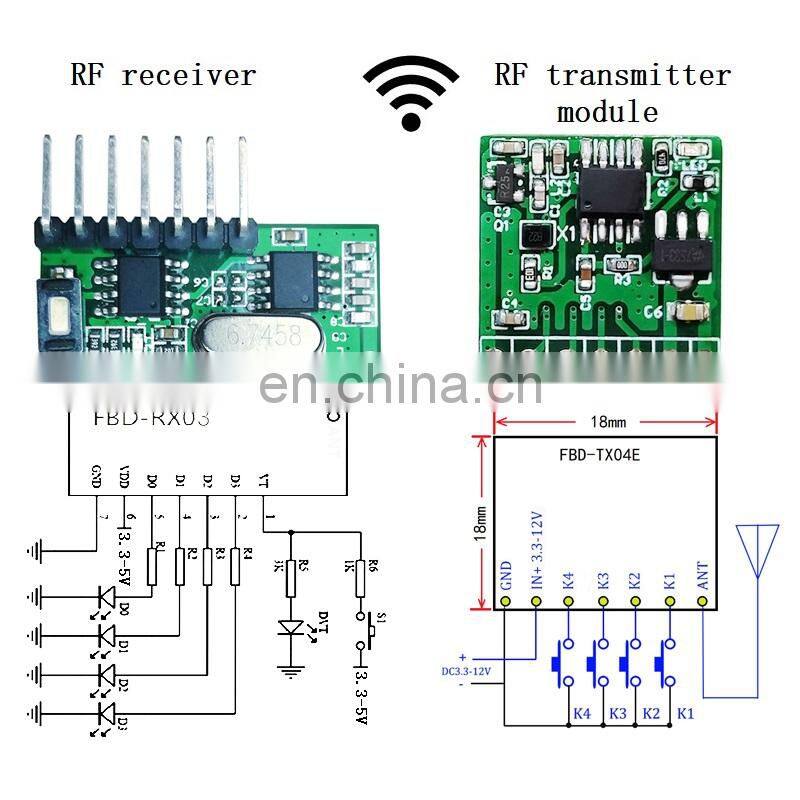

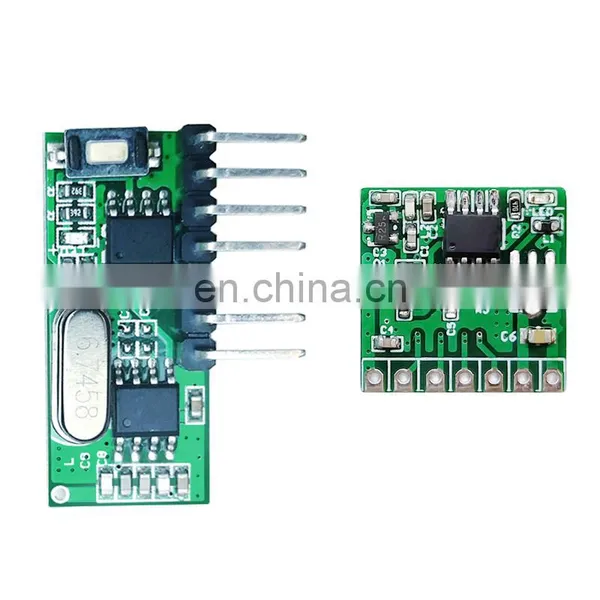

Wireless RF Transmitter Module Wireless RF Receiver Module
