Home > Products > Fixed code remote > 433 Mhz rf 4 channel remote control module Av modulator rf Rf amplifier module
433 Mhz rf 4 channel remote control module Av modulator rf Rf amplifier module
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Door remote control3 button 433 92MHZ high power remote 1000m remote control
-
433 Mhz Rf Module Wireless Data Transmitter and Receiver 500m Max Power Time Dimensions Output Input Hours Origin Transfer Rate
-
433 Mhz Rf Module Wireless Data Transmitter and Receiver 500m Max Power Time Dimensions Output Input Hours Origin Transfer Rate
-
433mhz rf module 3 button 433 92MHZ high power remote 1000m remote control
-
Remote Control Toys White Shell Learning Code/Fixed Code 15 Buttons 433 92MHZ DC12V Wireless RF Remote Control
-
Remote Control Toys 4 Metal Shell Rolling Code 4 Buttons 433 92MHZ DC12V Black LED Light Auto Anti Frame Timer Shock Color
Product Description
Product Description

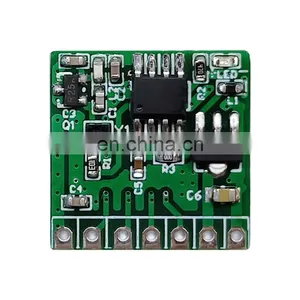

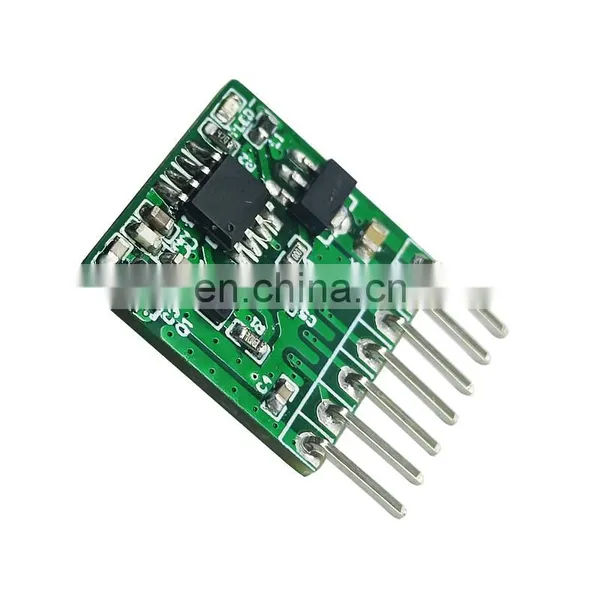

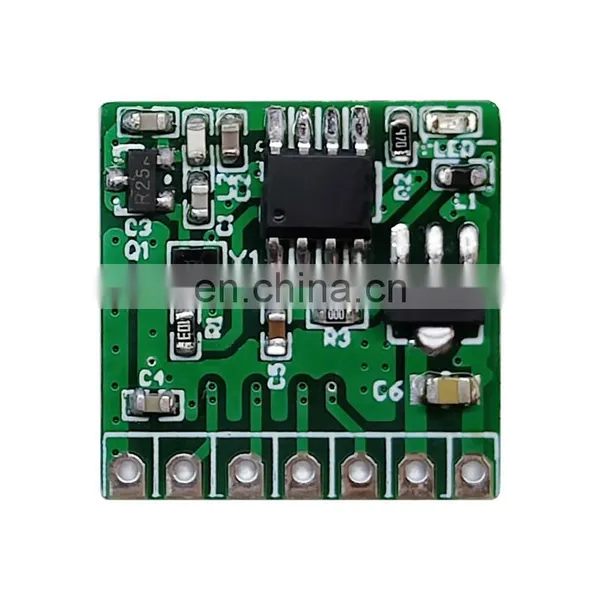

Wireless RF transmitter module parameters:
Model: FBD-TX04E
Transmit power: 6 grids (-5~-3dbm)
Distance: 50~100M
Working current: 4~5MA
Standby current: less than 3UA
Emission deviation: +/- 7. 5KHZ/narrowband emission
Pulse width: 1450US (can be customized according to customer requirements)
Working voltage: DC 3V-14V
Code: EV1527 learning code, each module has a unique ID address code
Customizable special code: MCU type (MOQ: 2000pcs)
Data: K1, K2, K3, K4 replace the 4 buttons of the remote control, and can also be combined into 15 groups, which can be directly connected to the microcontroller for perfect control.
Specification
item | value |
Model Number | FBD-TX04EMJ |
Type | RF Module |
Place of Origin | China |
Guangdong | |
Brand Name | FBD |
Chipset | 1527 |
Supplier Type | |
Packing & Delivery
Title goes here.

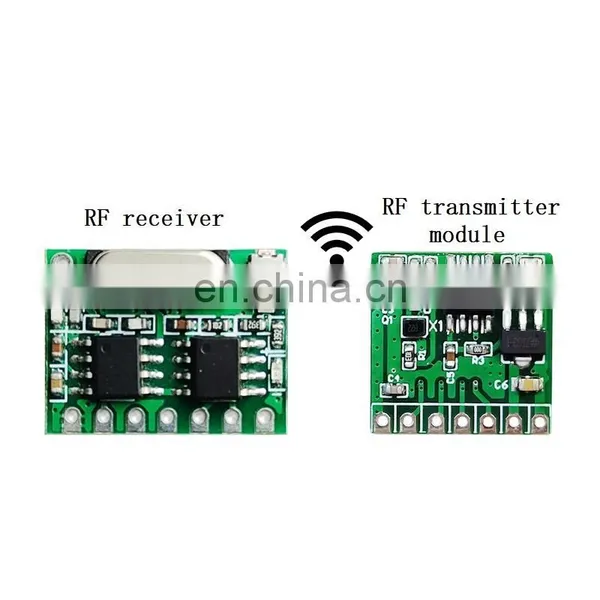

Receive module parameters:
Working voltage: DC3.3~5V
Working frequency: 433MHz (others can be customized)
Output: 4-channel CMOS level signal corresponding to remote control ABCD 4 button
Compatible with fixed code and learning code coding chips: such as PT2262, PT2260, SC2260, EV1527, PT2240, SC1527, HS1527, RT1527 and other remote controls
Title goes here.
- : Negative supply
+: Positive power supply, DC 3-24V
K1: External input key, short-circuit to ground to start data transmission 1, which is equivalent to the A key of the remote control.
K2: External input key, short-circuit to ground to start data transmission 2, which is equivalent to the B key of the remote control.
K3: External input key, short-circuit to ground to start data transmission 3, which is equivalent to the C key of the remote control.
K4: External input key, short-circuit to ground to start data transmission 4, which is equivalent to the D key of the remote control.
ANT: Transmitting Antenna
