Product Description

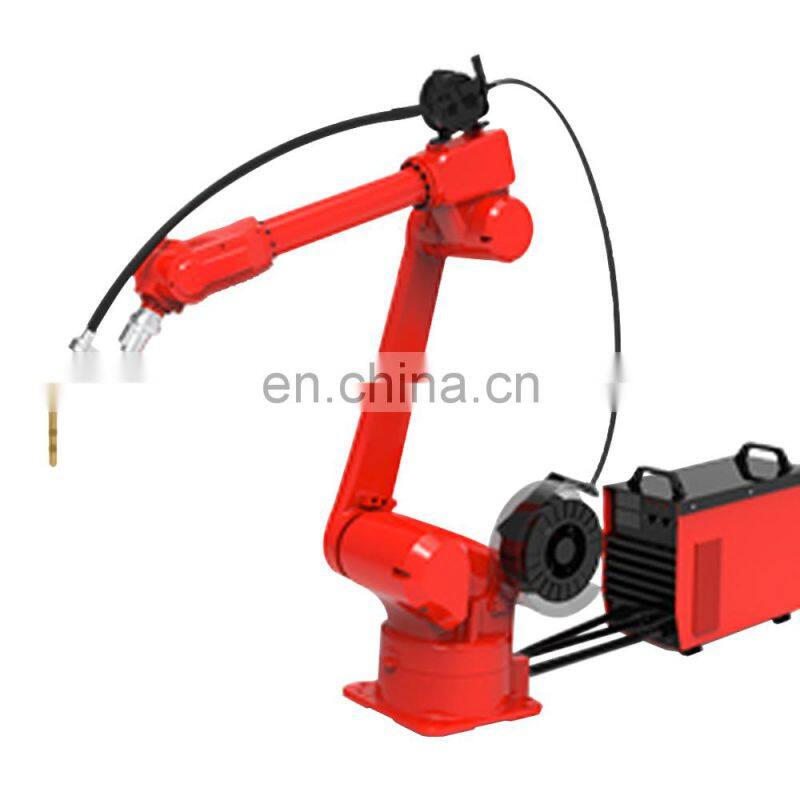

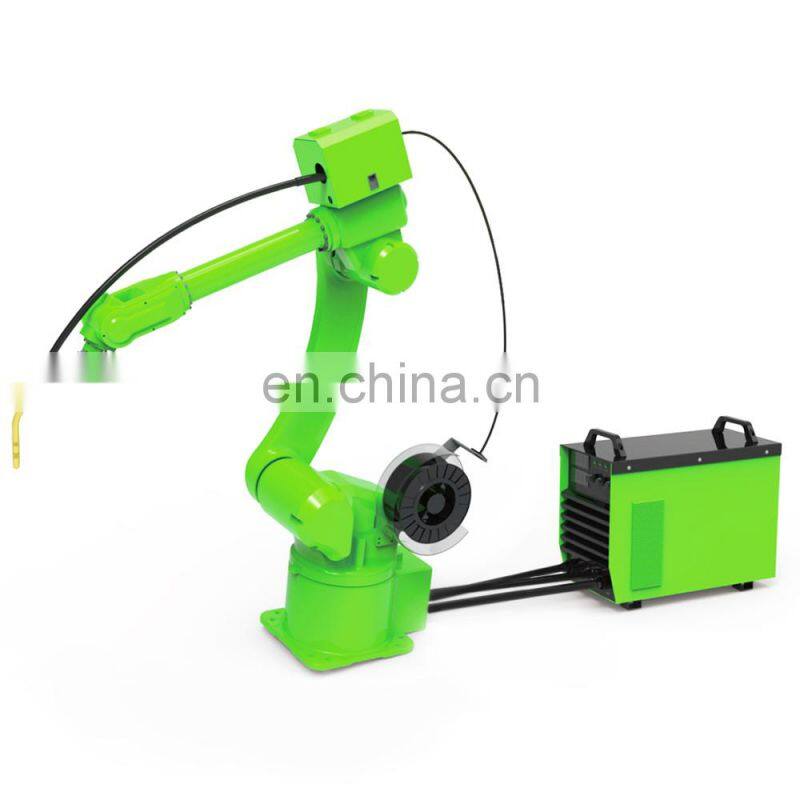

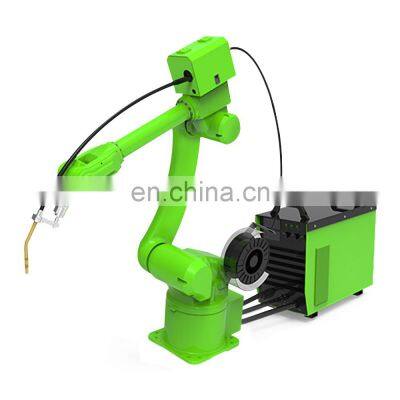

LH Welding Series Robots (dust-proof) LH1850-B-6
LH1850-B-6 robot is dedicated to welding, this product has a higher floor space and stabler construction; moreover, there is a fully enclosed axis to effectively prevent welding spatters from damaging cables of the robot.
[model] LH1850-B-6
[motion radius] 1850mm
[action type] Multi joint type
[weight] 170kg
[rated load] 6kg
[number of axles] 6 Axles
Specification
Payload
6KG
Reach
1850 mm
Structure
Articulated
Number of axes
6
Repeatability
±0.05mm




Max.motion range
Axis 1
±165°
Axis 2
+135°/-75°
Axis 3
+78°/-76.5°
Axis 4
±360°
Axis 5
+115°
Axis 6
±450°





Max.speed
Axis 1
148°/sec
Axis 2
148°/sec
Axis 3
150°/sec
Axis 4
222°/sec
Axis 5
222°/sec
Axis 6
360°/sec
Weight
≈170kg
Mounting type
Ground, Bracket, Ceiling
Ambient temperature
-20°C～80°C

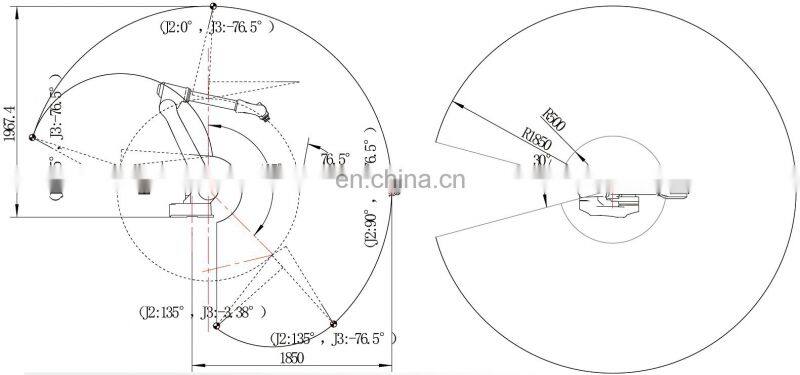

Diagram of Robot Motion Range

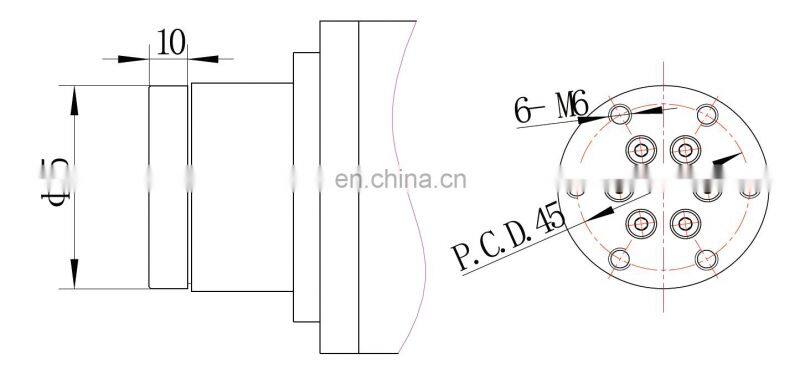

Robot Flange Connection Diagram

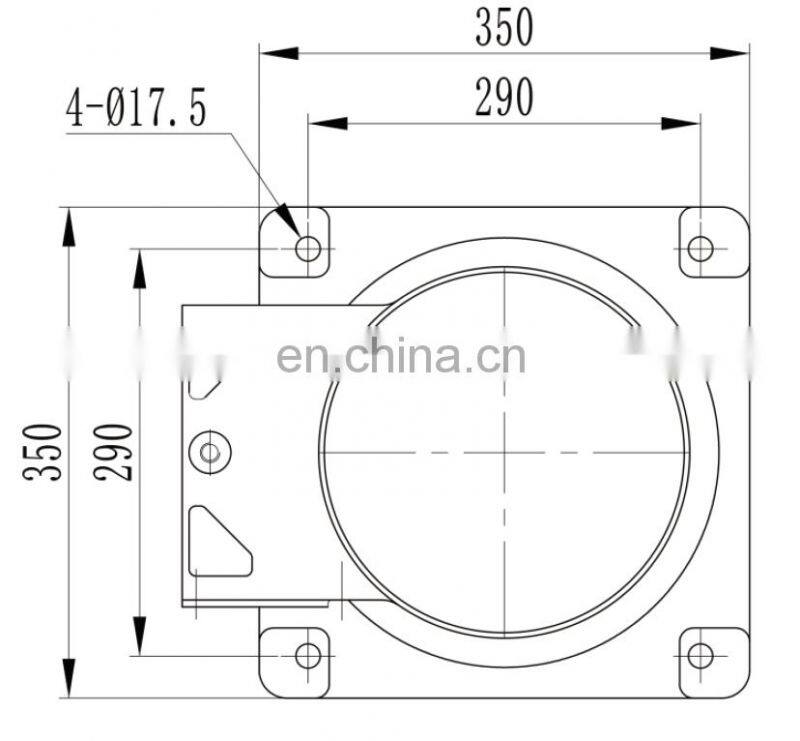

Robot Base Installation Diagram
Robot Control System
●Structural optimization algorithm suitable for the body control of various types of structure. ●Modular setting of functionssuitable for diverse applications. ●8-axis control realizes the control of external axes (traveling axes and positioner). ●Suitable for multiple increments; absolute servo. ●Open structure for synchronization of international technology and extension of functions. ●Software PLC functions facilitate logic control. ●Process functions make programming easy. ●Improved computer bus connection ensures reliability and practicability. ●Safety module ensures safe production of the robots. ●Industrial standards &reliable stability.
Product features




Improve efficiency
High precision, fast speed, can work continuously for 24 hours, the teaching pendant button is simple and easy to understand, and the operation is very convenient.


cost reduction
Fully automatic operation, solve the current situation of difficult recruitment and labor shortage, realize the phenomenon of fewer people in the factory, and greatly save labor costs




Safe and reliable
Equipped with photoelectric safety protection measures, when foreign objects enter the work area, the automatic robot can automatically alarm and pause to avoid accidental injury.


Easy to operate
The whole process of automatic equipment is simple and can be started quickly. If the operation is wrong, the machine will stop automatically to avoid the risk of equipment damage.


Energy saving and environmental protection
Automation equipment has simple and tidy circuit layout, small floor area, no noise, light and strong arms, low power consumption, energy conservation and environmental protection.

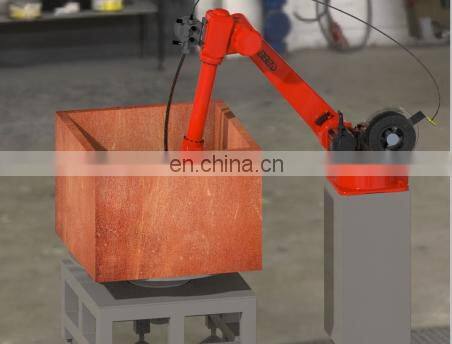

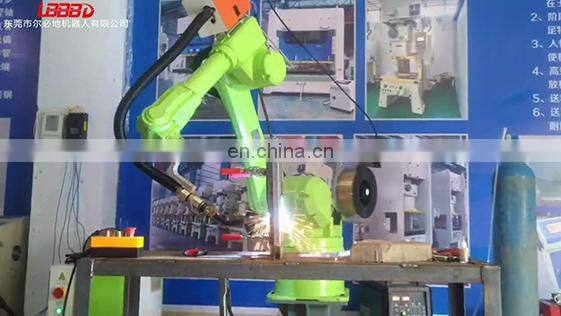

Application scenario

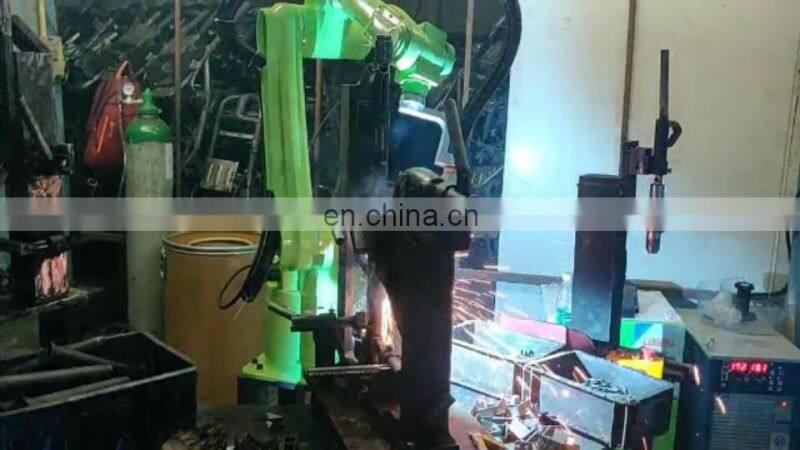

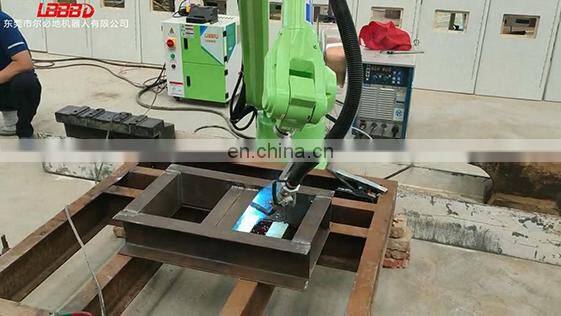

Argon arc welding、Laser welding
Company introduction
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
