Robot customized six axis manipulator universal motion radius 750mm rated load 6kg
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Fy-60A 100A 120A 130A 160A 200A 300A 250A 315A 400A 500A JX130 JX131 Plasma cutting machine accessories electrode nozzle
- Becs-528a embroidery machine electric control system original Dachau embroidery machine accessories
- BECS-A18 A58 original Dachau embroidery machine accessories embroidery machine electric control system
- BECS-A98 original Dachau embroidery machine accessories embroidery machine electric control system
- BECS-AX8 original Dachau embroidery machine accessories embroidery machine electric control system
- LCD touch screen control panel Sewing machine electronic control system Sewing machine accessories
Product Description
Product Description

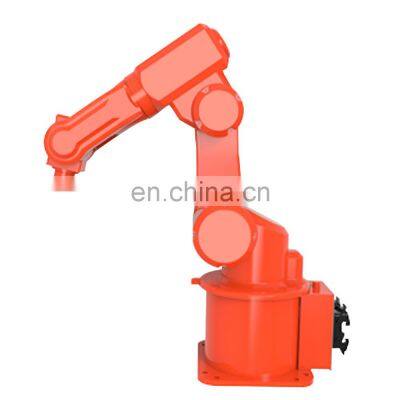

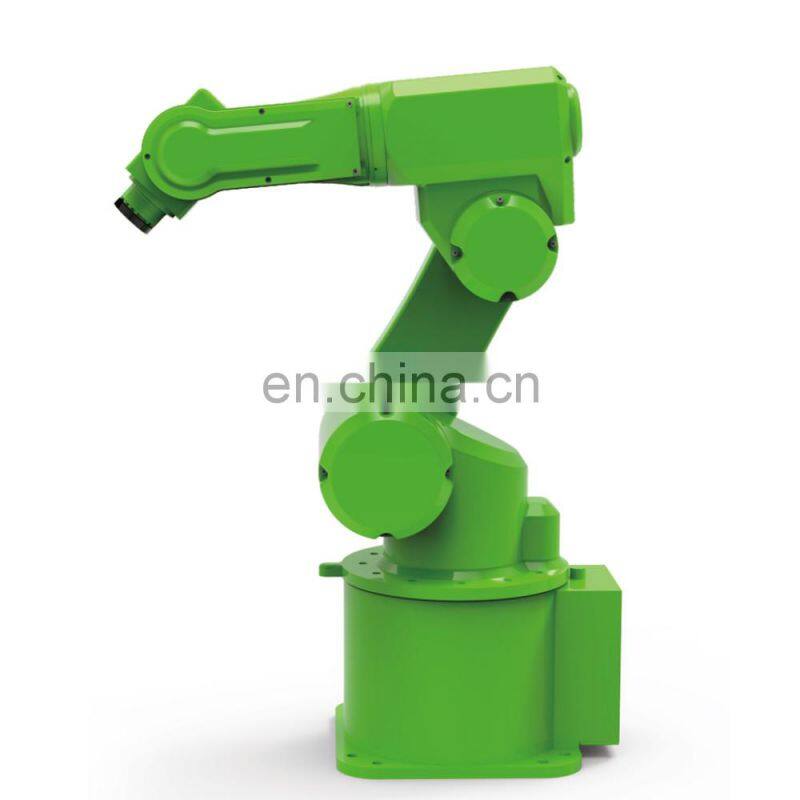

LT universal series six axis manipulator LT750-B-6

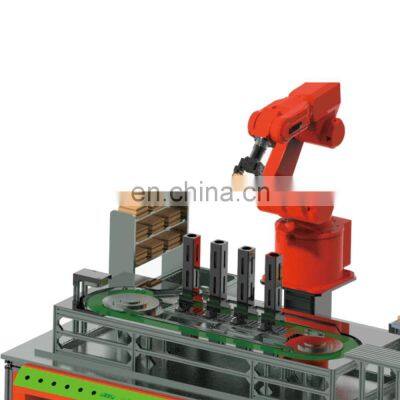

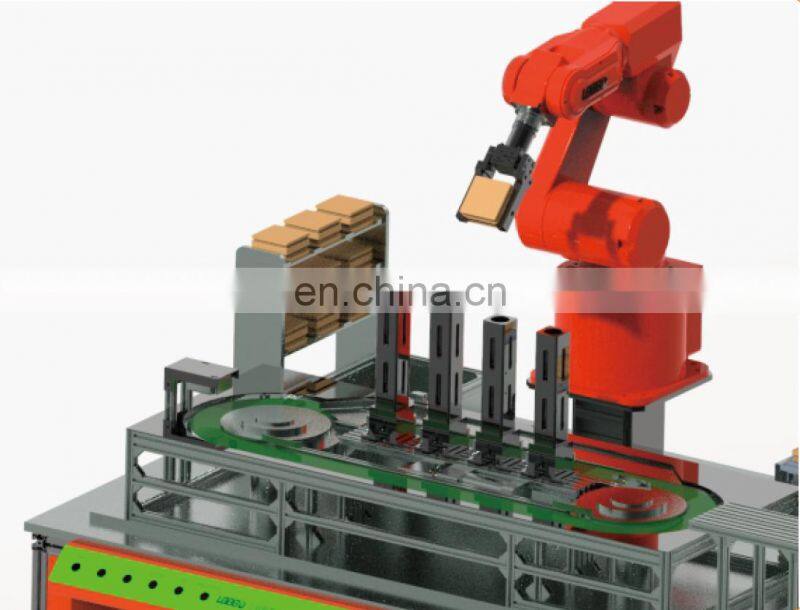

LT750-B-6 is a small desktop robot featuring short work cycle, reliable operation and high cost performance. It is widely used for various experimental teaching platforms and the students’ repair, disassembly and assembly courses.
[model] LT750-B-6 | [motion radius] 750mm | ||
[action type] multi joint type | [weight] 85kg | ||
[rated load] 6kg | [number of axles] 6 Axles |
Specification
Payload | 6KG | ||||||
Reach | 750mm | ||||||
Structure | Articulated | ||||||
Number of axes | 6 | ||||||
Repeatability | ±0.05mm | ||||||
Max.motion range | Axis 1 | ±165° | |||||
Axis 2 | +120°/-72° | ||||||
Axis 3 | +87.5°/-72° | ||||||
Axis 4 | ±360° | ||||||
Axis 5 | ±115° | ||||||
Axis 6 | ±450° | ||||||
Max.speed | Axis 1 | 148°/sec | |||||
Axis 2 | 148°/sec | ||||||
Axis 3 | 222°/sec | ||||||
Axis 4 | 222°/sec | ||||||
Axis 5 | 222°/sec | ||||||
Axis 6 | 360°/sec | ||||||
Weight | ≈85kg | ||||||
Mounting type | Ground, Bracket, Ceiling | ||||||
Ambient temperature | -20°C~80°C |

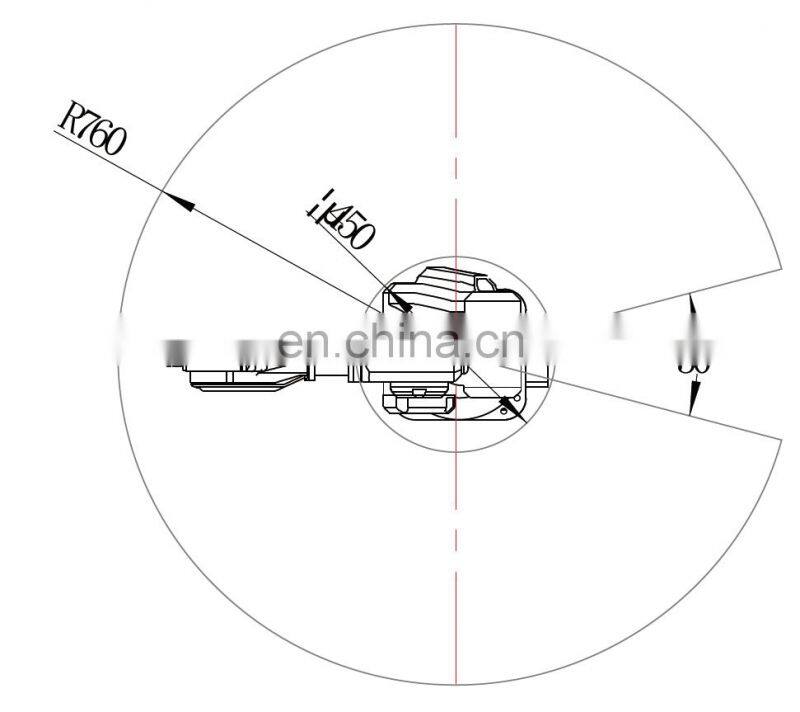

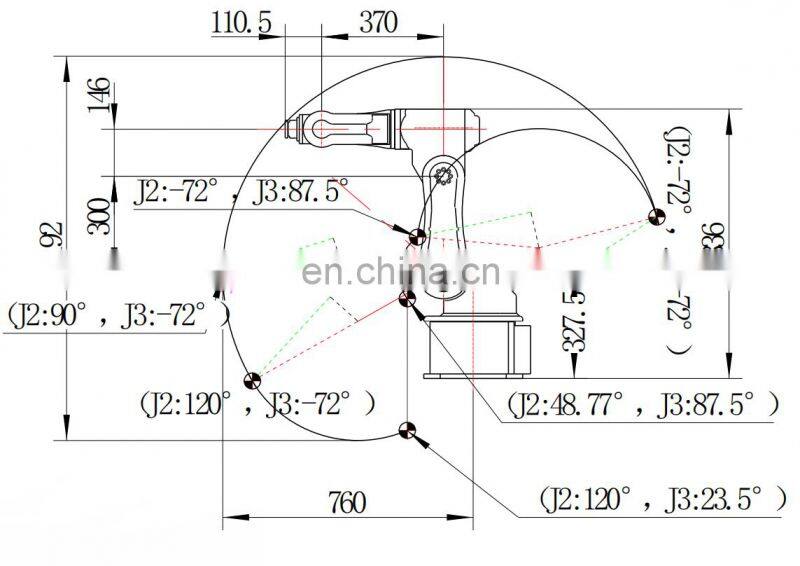

Diagram of Robot Motion Range

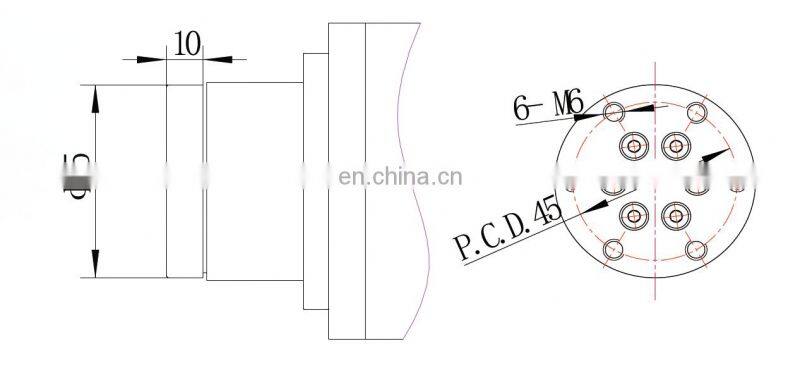

Robot Flange Connection Diagram

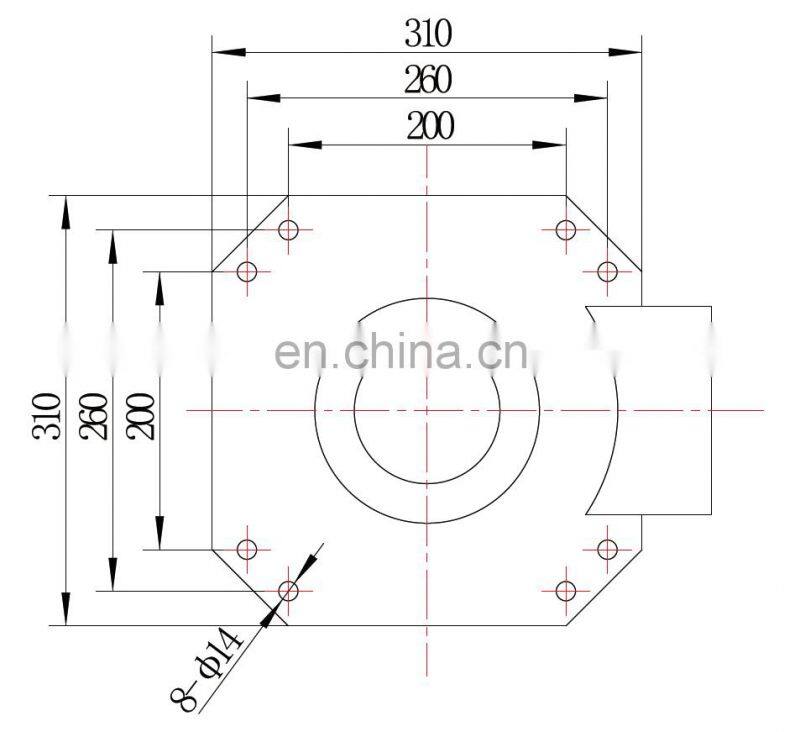

Robot Base Installation Diagram

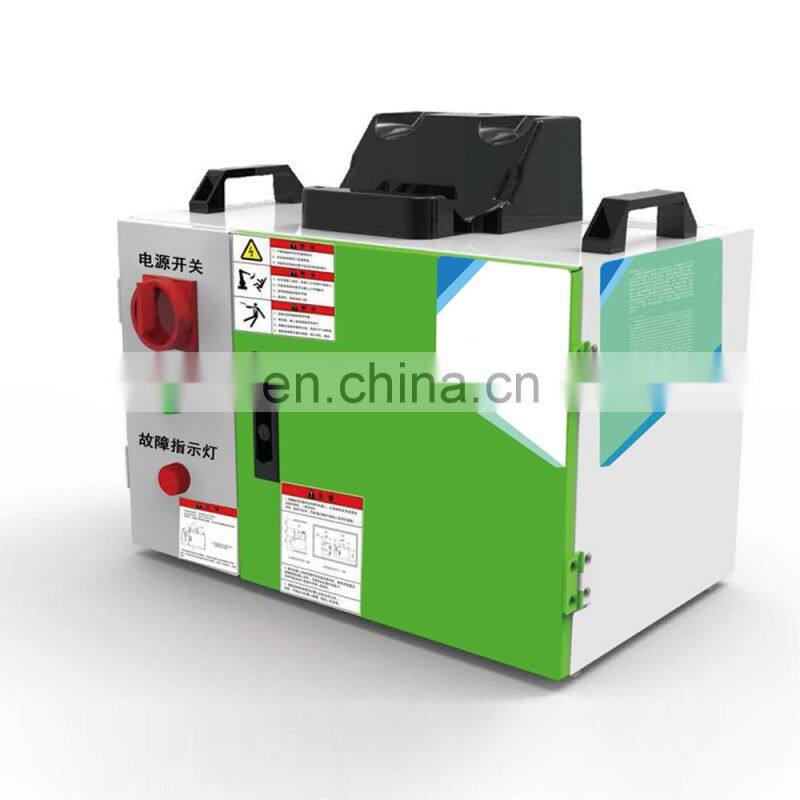

Robot Control System
●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functionssuitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy.
●Improved computer bus connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Industrial standards &reliable stability.
Product features
Improve efficiency

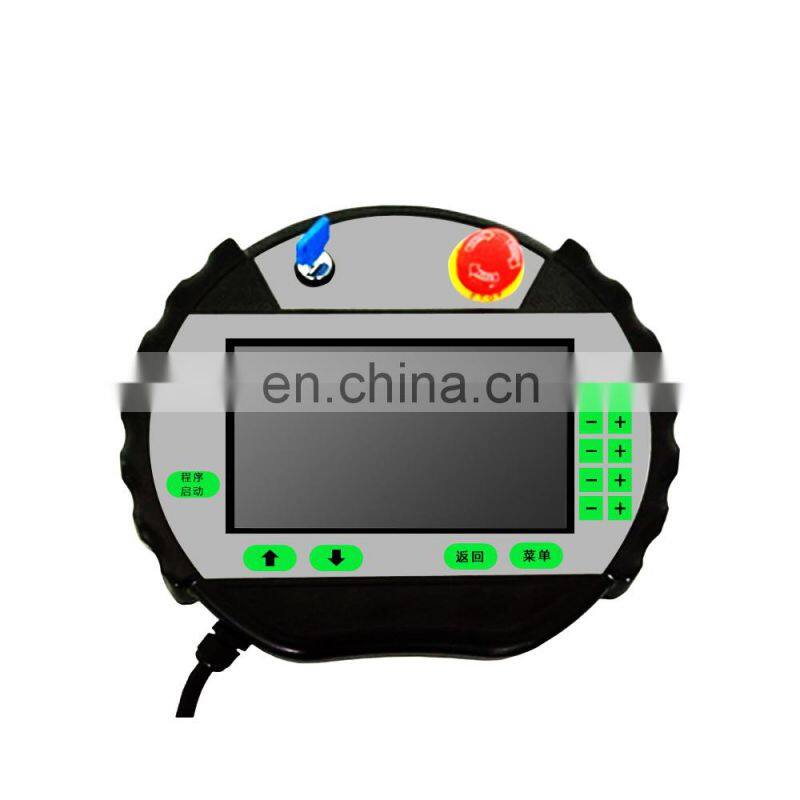

High precision, fast speed, can work continuously for 24 hours, the teaching pendant button is simple and easy to understand, and the operation is very convenient.
cost reduction
Fully automatic operation, solve the current situation of difficult recruitment and labor shortage, realize the phenomenon of fewer people in the factory, and greatly save labor costs
Safe and reliable
Equipped with photoelectric safety protection measures, when foreign objects enter the work area, the automatic robot can automatically alarm and pause to avoid accidental injury.
Easy to operate
The whole process of automatic equipment is simple and can be started quickly. If the operation is wrong, the machine will stop automatically to avoid the risk of equipment damage.
Energy saving and environmental protection
Automation equipment has simple and tidy circuit layout, small floor area, no noise, light and strong arms, low power consumption, energy conservation and environmental protection.
Application scenario

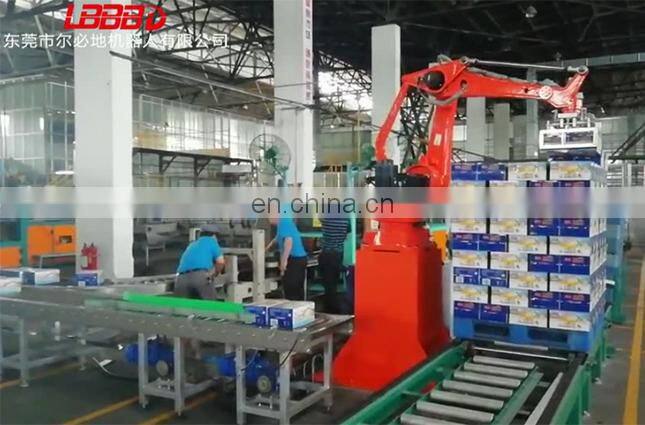

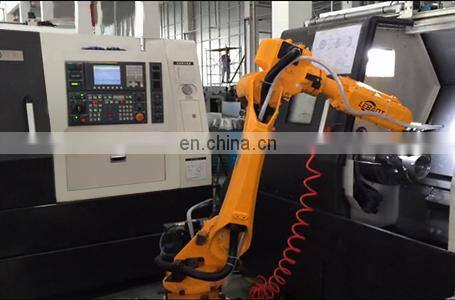

Material handling、 Parts transmission、 Stacking、 Deburring、 Cutting
Company introduction
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
