SA6/1400 Giant Industrial Arm KUKA Robot Robotic Arm 6 Axis Gantry Welding Robot
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Welding Manipulator Six Axis Robot, Motion Radius 1850 Mm, Rated Load 6 kgNegotiableMOQ: 1 -
Customized Universal Six Axis Robot With a Motion Radius of 1500 mm and a Rated Load of 10 kgNegotiableMOQ: 1
-
Ar Series Four Axis Robot High Speed, High Efficiency and Precision Liquid Four Axis Automatic Gluing Machine Dispensing MachineNegotiableMOQ: 1
-
Robot Customized Six Axis Manipulator Universal Motion Radius 750mm Rated Load 6kgNegotiableMOQ: 1
-
GSK RB165A1-2790 Handling Industry General Purpose Robot Arm Guangzhou CNC RobotNegotiableMOQ: 1

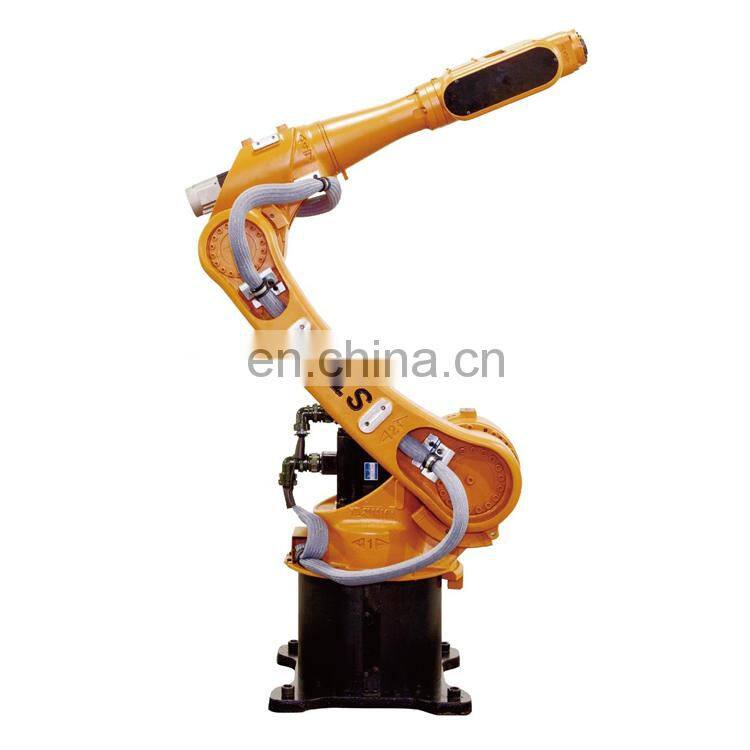

STEP/ADTECH High Running Speed SA6/1400 6 Axis Welding Robot
SA series welding robot is a special arc welding robot with compact shape, small volume and light weight. It can realize stable welding, obtain highly accurate welding path, shorten welding cycle and prolong the service life of pipe fittings and cables. At the same time, SA series welding machine can flexibly carry out welding operation in a narrow space, and the installation mode can be ground installation, hanging installation and upside down installation.
SA6/1400 features: the wrist load is 6kg and the maximum working radius is 1405mm.
●Features
▲Small size
▲Light weight
▲High running speed
▲High position repeat accuracy
▲Good welding reliability
●Application

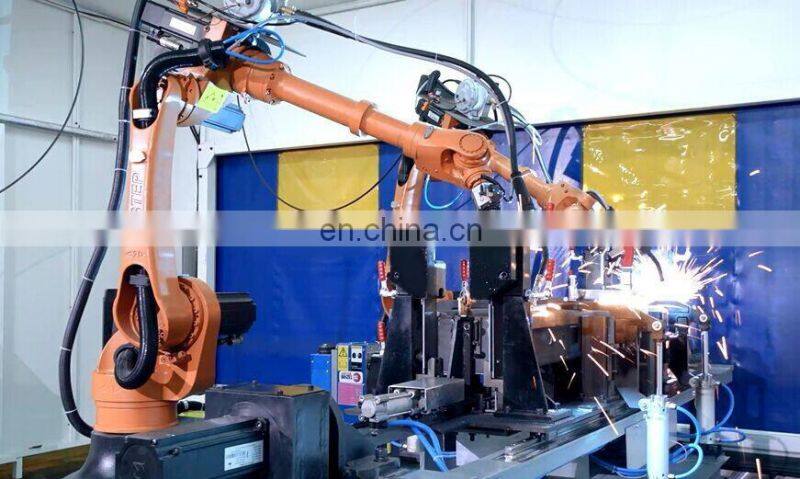

▲Arc welding,cutting
1. Stabilize and heighten the welding quality cover to ensure its uniformity;
2. Improve productivity and can produce continuously 24 hours a day;
3. Improve the working conditions and be able to work in harmful environment for a long time;
4. Reduce the requirements for workers' operation technology;
5. Shorten the cycle of product upgrading and reduce the corresponding investment in equipment;
6. It can realize the welding automation of batch products;
7. Save ground space

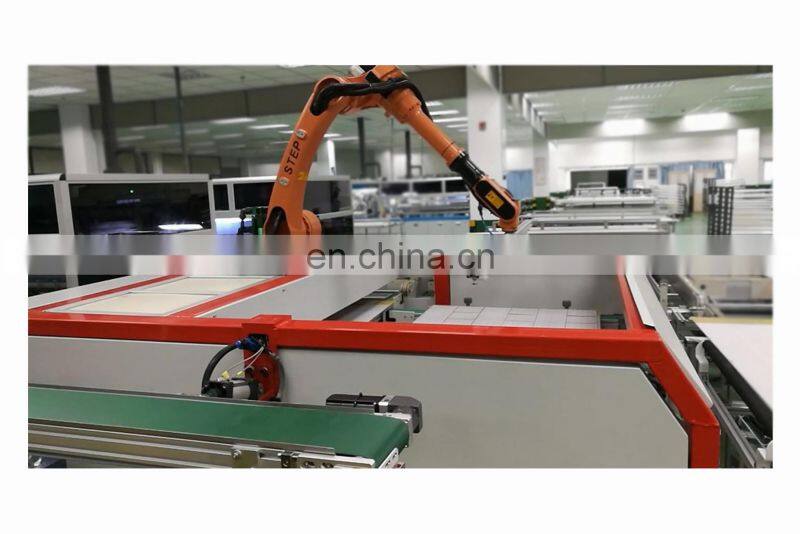

▲Materials handling, palletizing
1. Greater flexibility, more stable performance and lower energy consumption;
2 maximize throughput with high-speed performance:
3. Ultra long operation time;
4. Fixed automation;
Technical index | ||||
model | SA6/1400 | |||
Maximum working radius | 1405mm | |||
Repeat positioning accuracy | 0.05mm | |||
Carry weight | 6kg | |||
Degree of freedom | 6 | |||
Maximum speed of single axis(°/s) | J1 | 180 | ||
J2 | 180 | |||
J3 | 200 | |||
J4 | 460 | |||
J5 | 320 | |||
J6 | 450 | |||
Joint range(°) | J1 | ±165 | ||
J2 | 155~-90 | |||
J3 | 70~-200 | |||
J4 | ±170 | |||
J5 | ±120 | |||
J6 | ±360 | |||
Allowable static load torque of wrist | J4 | 11.8Nm | ||
J5 | 9.8Nm | |||
J6 | 5.9Nm | |||
Joint operating load inertia | J4 | 0.6kg.m2 | ||
J5 | 0.25kg.m2 | |||
J6 | 0.06kg.m2 | |||
Installation method | Ground, suspension, tilt | |||
Set conditions | Ambient temperature | 0-40℃ | ||
Environmental humidity | 45-75%RH | |||
Vibration value of mounting surface | Less than0.5G(4.9m/s2) | |||
Body weight | 143kg | |||

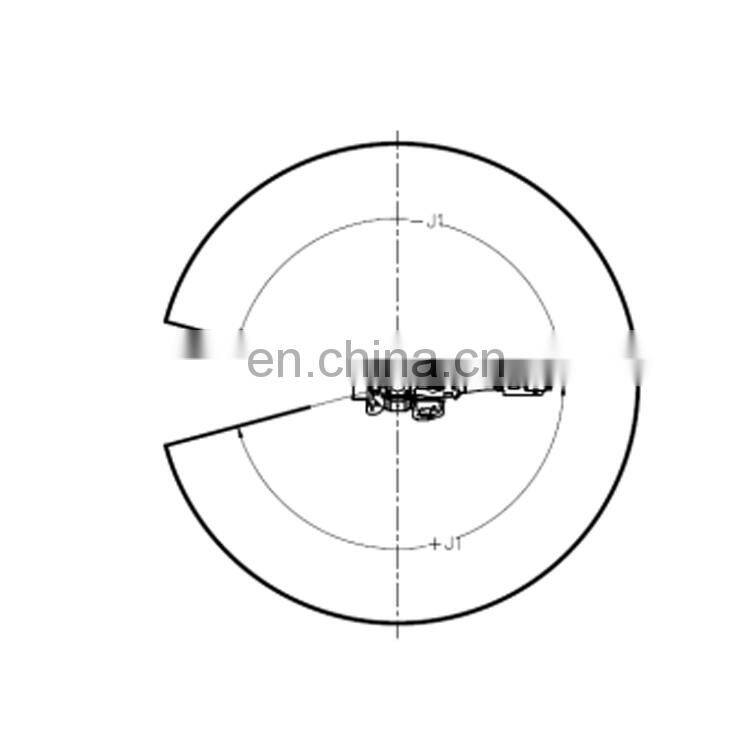

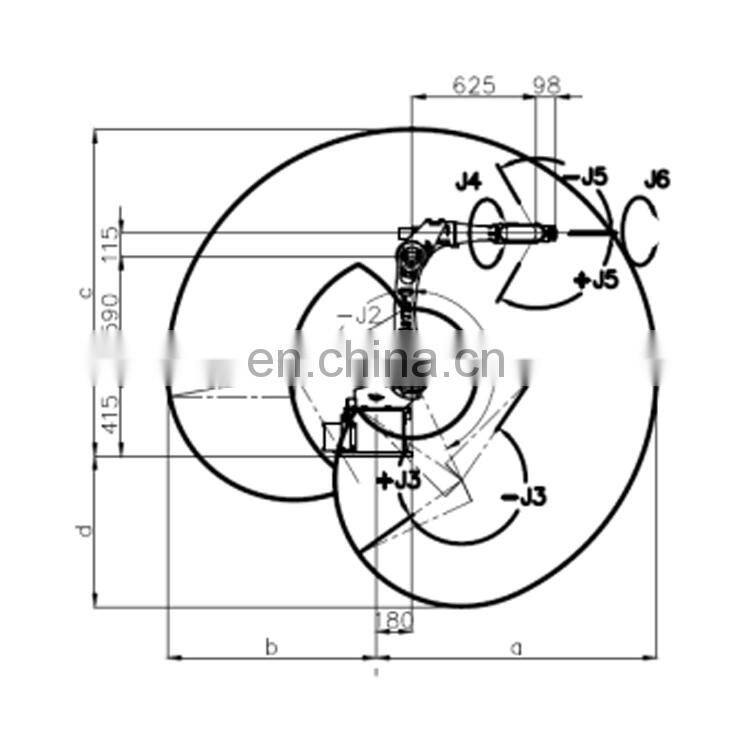

Working Space

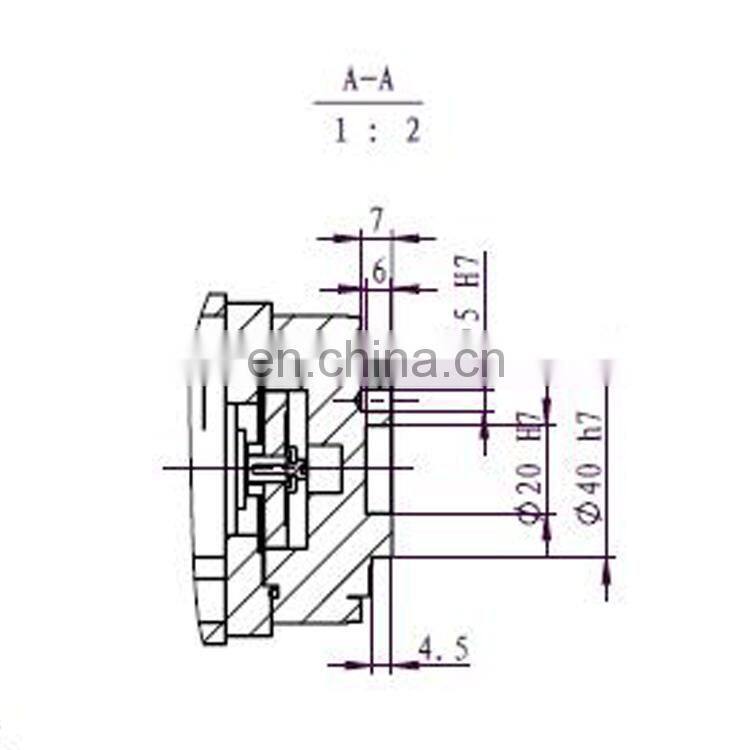

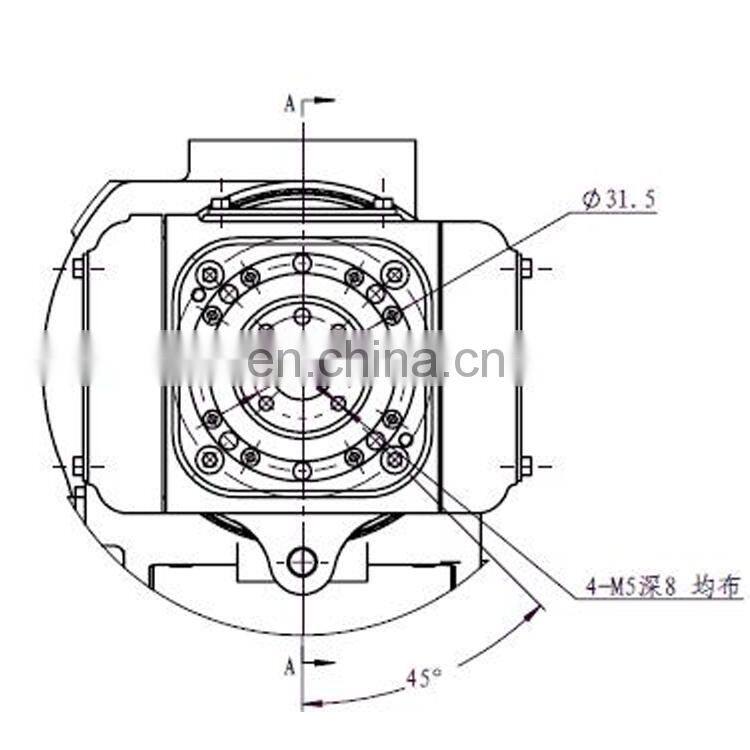

End Flange Interface Dimension
