Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2013
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Hunan Hastion Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us



ISO solid carbide rod

specification:



We are the only one manufactory which can provide the cemented carbide rods with one straight cooland hold in China right now.



The Cemented carbide rods can be used for making varioius drill bits, automobile special cutter, printed circuit board ,special cutters, engine special cutters, horologe,processing special cutters, integral vertical milling cutter, graver and etc.


the cemented carbide rods can also be used for making of cemented carbide stamping head, core bar and perforation tools.


Besides, The cemented carbide rods are used for cutting aluminum alloy , cast iron , stainless steel , refractory alloy steel ,nickel-based alloy , titanium alloy and non-ferrous metal , various carbide grades with stable properties have been widely recongnized by worldwide tool makers. We can produced the ungrounded and grounded cemented carbide rods.



Grades,composition and properties:

GRADE YG6X ZK10UF ZK20UF ZK20SF ZK30UF ZK31UF ZK30SF ZK40SF
Chemical composition 6%Co-WC 6%Co-WC 8%Co-WC 8%Co-WC 10%Co-WC 10%Co-WC 10%Co-WC 12%Co-WC
ISO GRADE K10 K05-K15 K20-K30 K20-K40 K20-K30 K20-K30 K20-K40 K40-K50
Density(g/cm3) 14.9 14.85 14.65 14.45 14.45 14.4 14.4 14.1
Hardness(HRA) 92.5 93 92.6 92.8 92 91.5 92.5 92.1
Strength(N/mm) 2500 2800 3200 3400 3500 4000 3600 3400
WC average grain size 1.0μm 0.6μm 0.6μm 0.4-0.5μm 0.6μm 0.7μm 0.4-0.5μm 0.4-0.5μm



SIZE:

Ø 1.0 h6 x 330+0.5 mm Ø 1.0 +0.3 x 330+0.5 mm Ø 1.3 +0.3 x 330+0.5 mm Ø 1.7 +0.3 x 330+0.5 mm
Ø 2.0 h6 x 330+0.5 mm Ø 2.0 +0.3 x 330+0.5 mm Ø 2.3 +0.3 x 330+0.5 mm Ø 2.7 +0.3 x 330+0.5 mm
Ø 3.0 h6 x 330+0.5 mm Ø 3.0 +0.3 x 330+0.5 mm Ø 3.3 +0.3 x 330+0.5 mm Ø 3.7 +0.3 x 330+0.5 mm
Ø 4.0 h6 x 330+0.5 mm Ø 4.0 +0.3 x 330+0.5 mm Ø 4.3 +0.3 x 330+0.5 mm Ø 4.7 +0.3 x 330+0.5 mm
Ø 5.0 h6 x 330+0.5 mm Ø 5.0 +0.3 x 330+0.5 mm Ø 5.3 +0.3 x 330+0.5 mm Ø 5.7 +0.3 x 330+0.5 mm
Ø 6.0 h6 x 330+0.5 mm Ø 6.0 +0.3 x 330+0.5 mm Ø 6.3 +0.3 x 330+0.5 mm Ø 6.7 +0.3 x 330+0.5 mm
Ø 7.0 h6 x 330+0.5 mm Ø 7.0 +0.3 x 330+0.5 mm Ø 7.3 +0.3 x 330+0.5 mm Ø 7.7 +0.3 x 330+0.5 mm
Ø 8.0 h6 x 330+0.5 mm Ø 8.0 +0.3 x 330+0.5 mm Ø 8.3 +0.3 x 330+0.5 mm Ø 8.7 +0.3 x 330+0.5 mm
Ø 9.0 h6 x 330+0.5 mm Ø 9.0 +0.3 x 330+0.5 mm Ø 9.3 +0.3 x 330+0.5 mm Ø 9.7 +0.3 x 330+0.5 mm
Ø 10.0 h6 x 330+0.5 mm Ø 10.0 +0.3 x 330+0.5 mm Ø 10.3 +0.3 x 330+0.5 mm Ø 10.7 +0.3 x 330+0.5 mm
Ø 11.0 h6 x 330+0.5 mm Ø 11.0 +0.3 x 330+0.5 mm Ø 11.3 +0.3 x 330+0.5 mm Ø 11.7 +0.3 x 330+0.5 mm
Ø 12.0 h6 x 330+0.5 mm Ø 12.0 +0.3 x 330+0.5 mm Ø 12.3 +0.3 x 330+0.5 mm Ø 12.7 +0.3 x 330+0.5 mm
Ø 13.0 h6 x 330+0.5 mm Ø 13.0 +0.3 x 330+0.5 mm Ø 13.3 +0.3 x 330+0.5 mm Ø 13.7 +0.3 x 330+0.5 mm
Ø 14.0 h6 x 330+0.5 mm Ø 14.0 +0.3 x 330+0.5 mm Ø 14.3 +0.3 x 330+0.5 mm Ø 14.7 +0.3 x 330+0.5 mm
Ø 15.0 h6 x 330+0.5 mm Ø 15.0 +0.3 x 330+0.5 mm Ø 15.3 +0.3 x 330+0.5 mm Ø 15.7 +0.3 x 330+0.5 mm
Ø 16.0 h6 x 330+0.5 mm Ø 16.0 +0.3 x 330+0.5 mm Ø 16.3 +0.3 x 330+0.5 mm Ø 16.7 +0.3 x 330+0.5 mm
Ø 17.0 h6 x 330+0.5 mm Ø 17.0 +0.3 x 330+0.5 mm Ø 17.3 +0.3 x 330+0.5 mm Ø 17.7 +0.3 x 330+0.5 mm
Ø 18.0 h6 x 330+0.5 mm Ø 18.0 +0.3 x 330+0.5 mm Ø 18.3 +0.3 x 330+0.5 mm Ø 18.7 +0.3 x 330+0.5 mm
Ø 19.0 h6 x 330+0.5 mm Ø 19.0 +0.3 x 330+0.5 mm Ø 19.3 +0.3 x 330+0.5 mm Ø 19.7 +0.3 x 330+0.5 mm
Ø 20.0 h6 x 330+0.5 mm Ø 20.0 +0.3 x 330+0.5 mm Ø 20.3 +0.3 x 330+0.5 mm Ø 20.7 +0.3 x 330+0.5 mm
Ø 21.0 h6 x 330+0.5 mm Ø 21.0 +0.3 x 330+0.5 mm Ø 21.3 +0.3 x 330+0.5 mm Ø 21.7 +0.3 x 330+0.5 mm
Ø 22.0 h6 x 330+0.5 mm Ø 22.0 +0.3 x 330+0.5 mm Ø 22.3 +0.3 x 330+0.5 mm Ø 22.7 +0.3 x 330+0.5 mm
Ø 23.0 h6 x 330+0.5 mm Ø 23.0 +0.3 x 330+0.5 mm Ø 23.3 +0.3 x 330+0.5 mm Ø 23.7 +0.3 x 330+0.5 mm
Ø 24.0 h6 x 330+0.5 mm Ø 24.0 +0.3 x 330+0.5 mm Ø 24.3 +0.3 x 330+0.5 mm Ø 24.7 +0.3 x 330+0.5 mm
Ø 25.0 h6 x 330+0.5 mm Ø 25.0 +0.3 x 330+0.5 mm Ø 25.3 +0.3 x 330+0.5 mm Ø 25.7 +0.3 x 330+0.5 mm

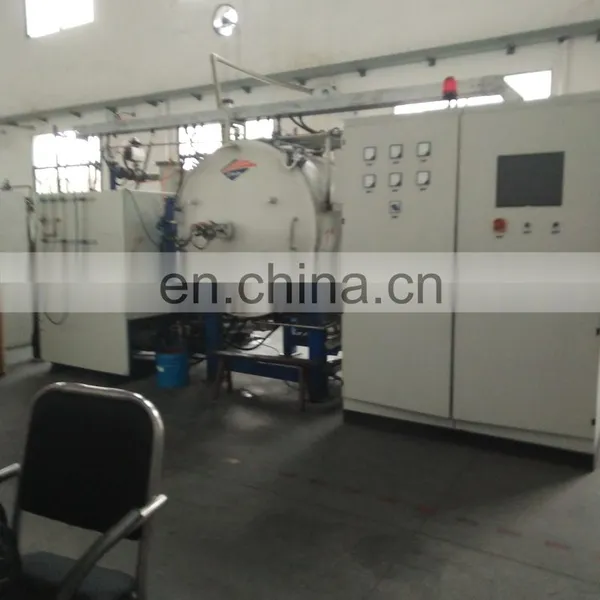

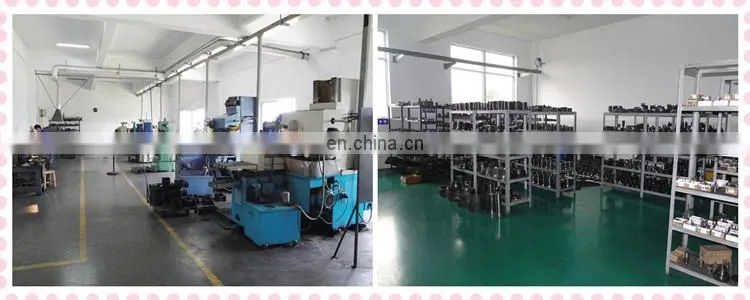

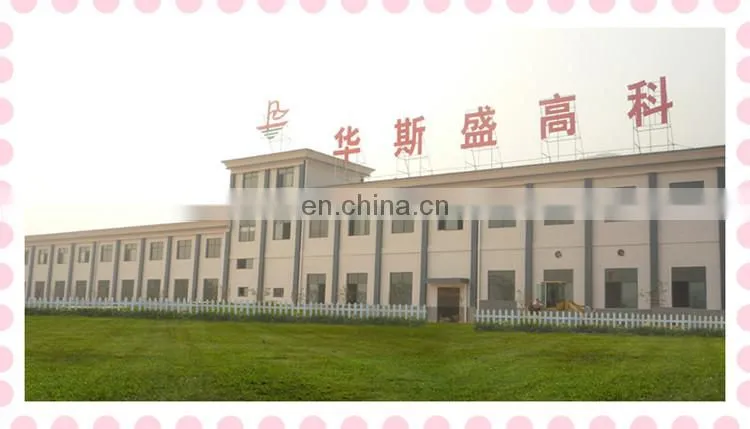

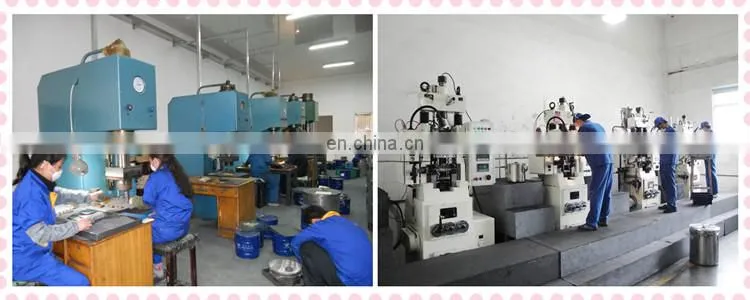

Factory photo:

tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert

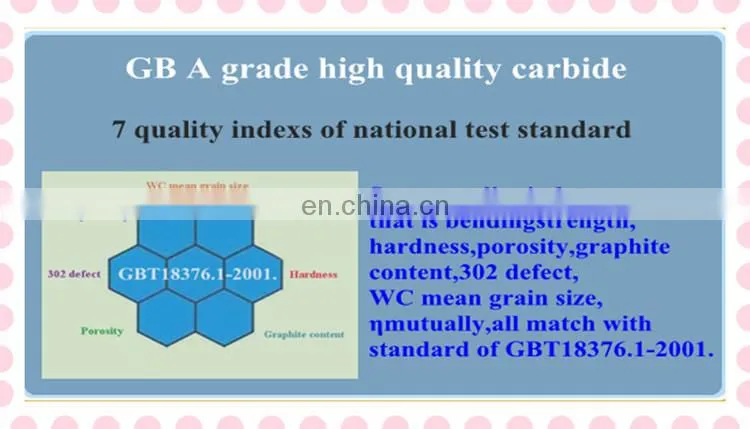

Qualiy Index of National Test Standard



tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert

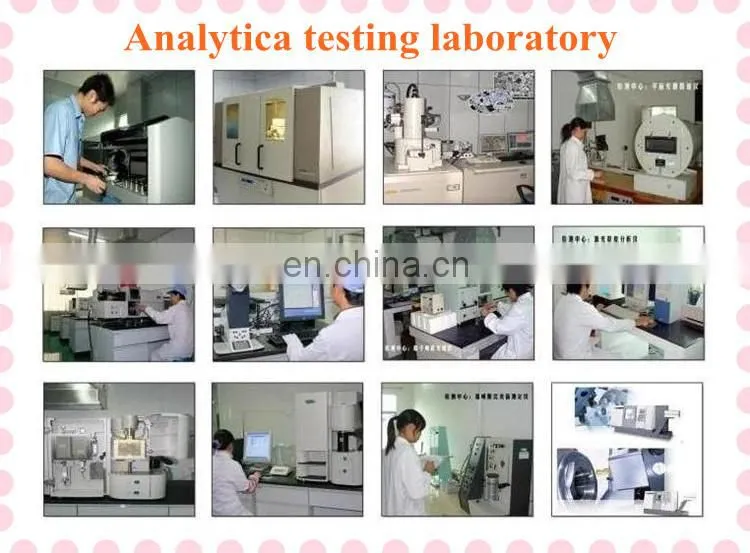

Analytica testig laboratory:

 tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert

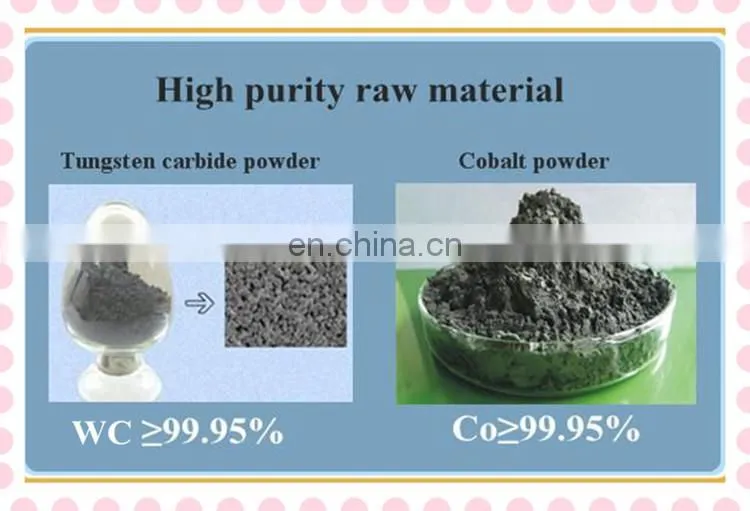

 High purity raw mteial:Tungsten cabide powder and Cobalt mterial



tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert

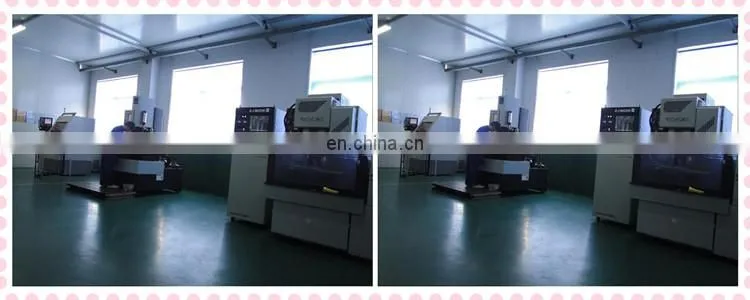

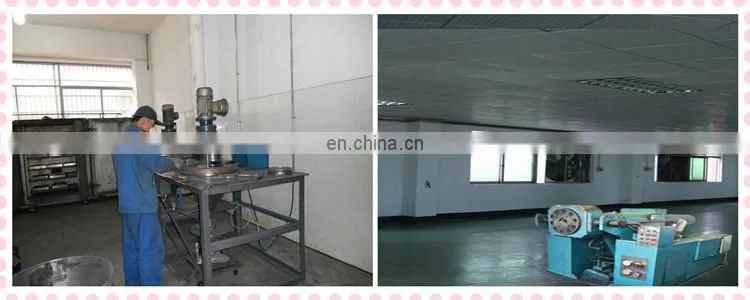

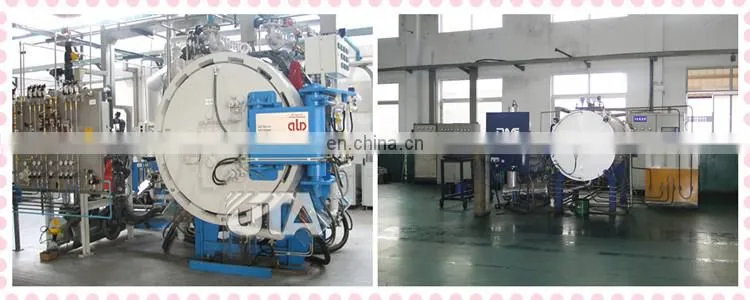

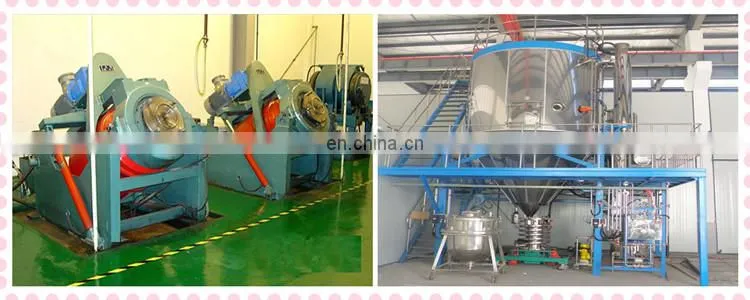

 High-precision technical equipment:1

 tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert





Photo 2

tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert





  Photo 3

tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert





  Photo 4

tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert







  Photo 5

tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert





  Photo 6

tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert

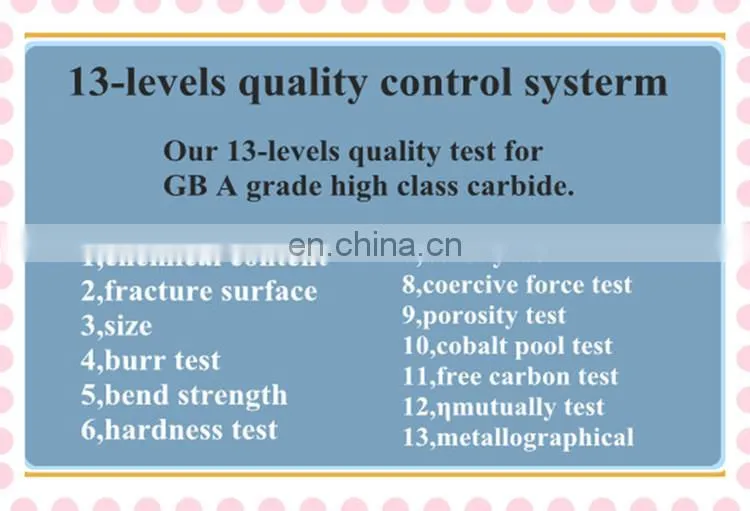

13-levels quality control systerm:

tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert

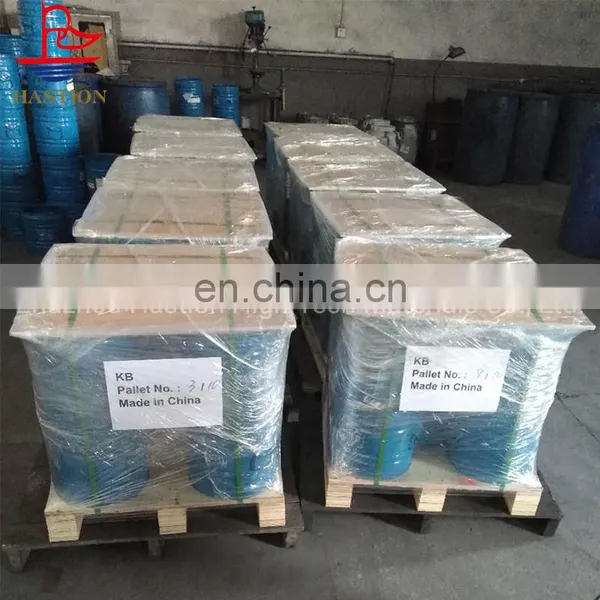

Packing and shipment:

tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert







The best describe is Comments from users:

 tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert



SAFETY SALE SERVICE:



tungsten carbide indexable turning insert tungsten carbide threading inserts carbide thread milling insert





Any questions about our products,please just email to me by lula at ,Mobile:+86-13677350915,  Mobile:+86-13647315326,  I would quote the most favorable price for you.
