Sheet Roller Machine for Water Heater Production

Shandong Zentek Energy and TechnologyCo., Ltd. , as a member of CSP Holding Group, is a professional manufacturer of production equipments and gears for both electric and solar water heaters. We have been devoting ourselves to customized design and engineering, manufacturing, machinery upgrading and production line improving for customers from all over the world.

The machineries we manufacture include fully and semi-automatic solar/electric water heater inner tank production line and outer tank production line, press machine, welding machine, foaming line and enameling line etc..

Our products have been exported to over 20 countries, such as India, Europe, Egypt, U.A.E., Mexico, Brazil etc.. Our customers include A.O. Smith and Havells in India, Artel in Uzbekistan and so on. Especially the line for Uzbekistan, it was the first complete line exported from China ever. We are looking forward to the cooperation with partners worldwide.

1. Workpiece material: Shell material CRC (yield strength < 245mpa), hot galvanized sheet, electrolytic galvanized sheet, Color painting steel pate, Coated steel.
2. Workpiece thickness: 0.4-0.6mm
3. Diameter range: Φ300mm~Φ500mm
4. Length range:300mm~1400mm

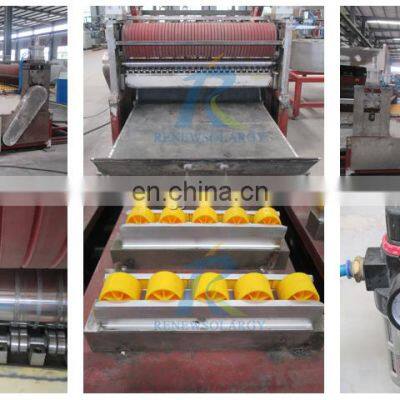

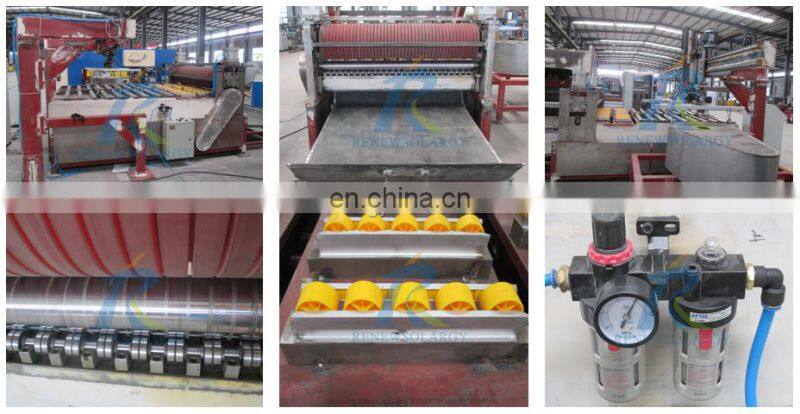

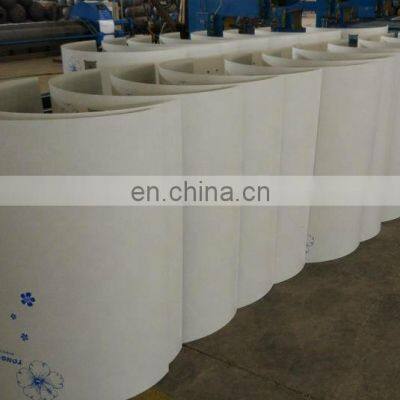

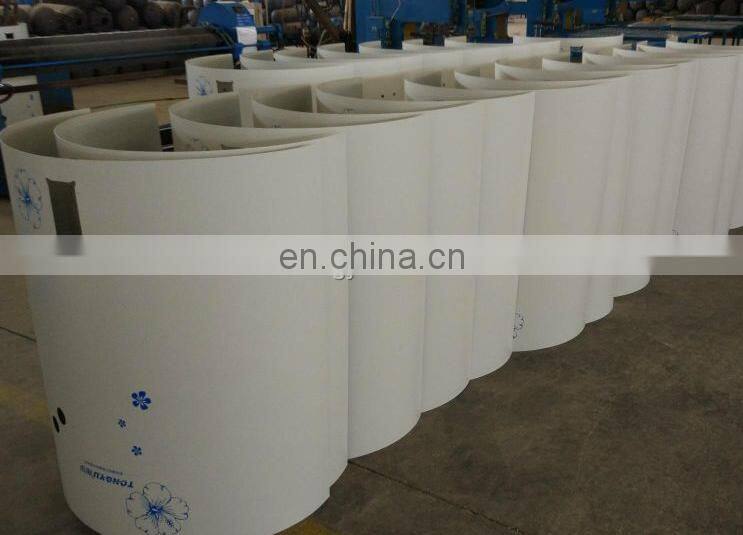

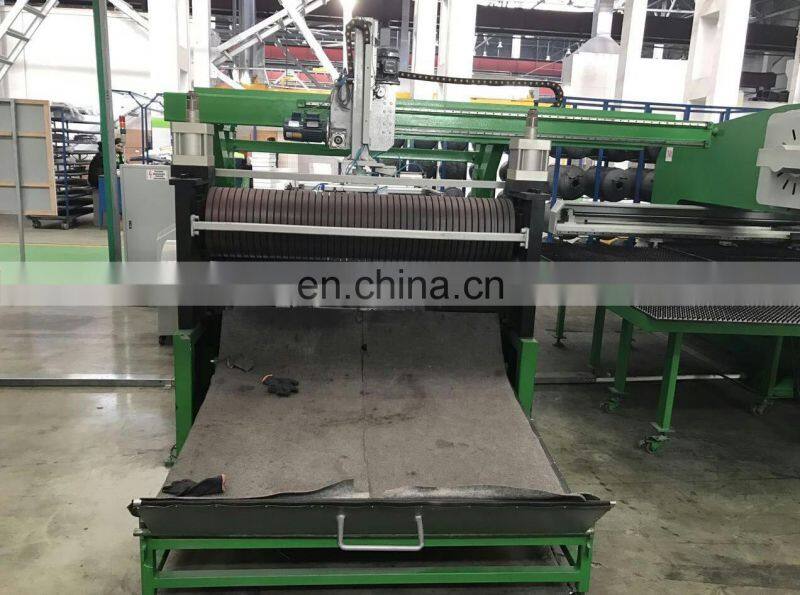

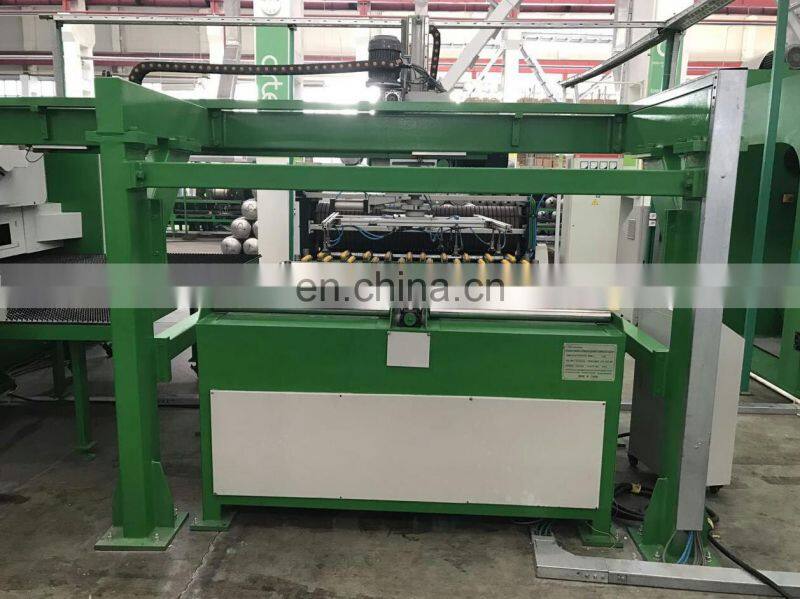

5. Stacking platform can stand one single stack 4000KG max., vacuum catcher fulfills automatic sheet feeding, 2-roller rolling machine can finish rolling process automatically, and the barrel collecting conveyer can collect the finish barrel which can ensure no damage on barrel surface. This machine doesn’t require any operator at the whole process.
6. Uses vacuum type robot arm, Cantilever structure. Moving speed is controlled by Delta servo motor. Speed range is 2-12m/min, adjustable. Catcher is SMC vacuum catcher.
7. Product speed: 3pcs/min

1. Q: What servicesare availabe?

    A:  Services we could offer: product design, machine production, installation&debugging, local production guidance, spare parts supply etc.

2. Q: What is your payment term?

     A: 30% prepaid, 60% paid before loading, 10% paid after installation and debugging at customer's plant.

3. Q: How long will machines be delivered?

     A: The time depends on how many sets of machines you require. 20 days to 5 months.

4. Q: How will the machines be packaged?

    A:  Normally machines will be covered with film and fastened in the container. But package could be customed, like steel frame, wooden boxes etc..

5. Q: How long will the machines be guaranteed?

    A:  One year.

6. Q: How long is the lifespan of machines?

    A:  15-20 years.

7. Q: Which companies have you supplied your machines to?

    A:  Sunrain, Linuo, Sangle, Himin, Haier, A.O. Smith, Havells in India, Supreme in India, Artel in Uzbekistan etc..
