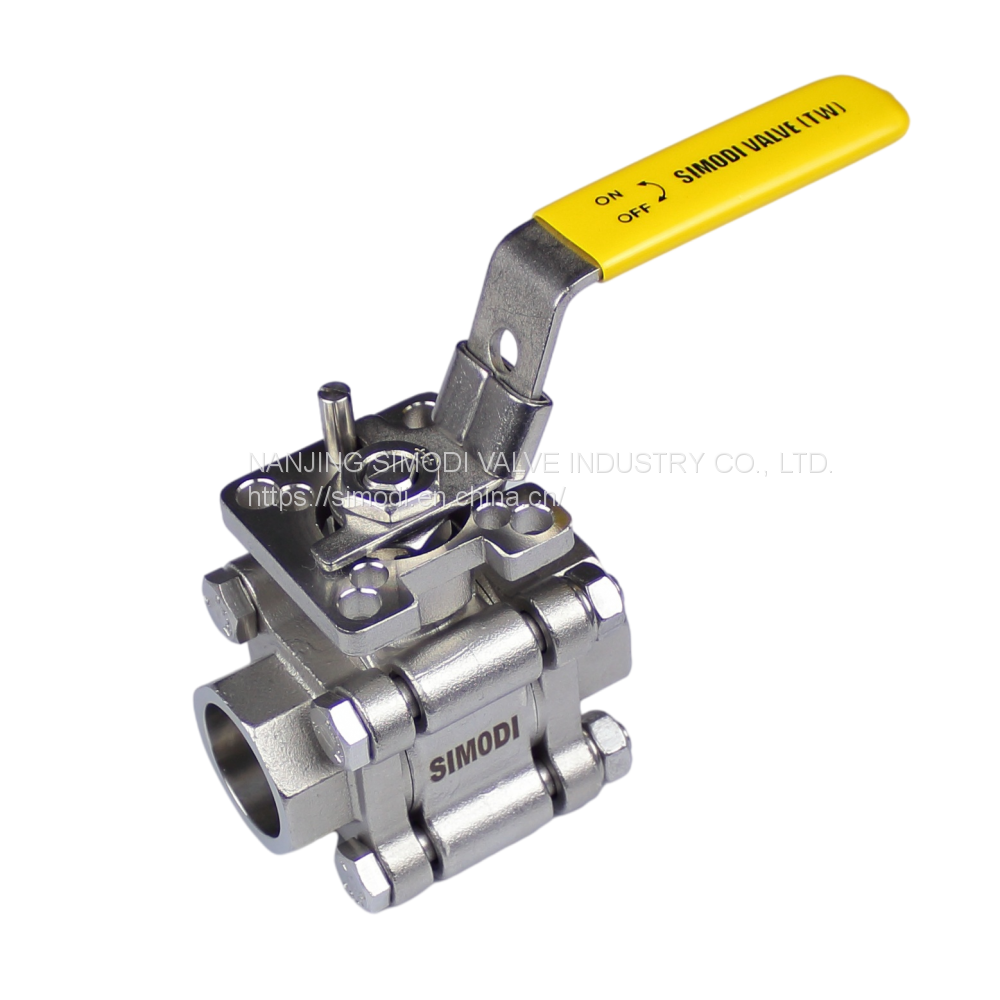

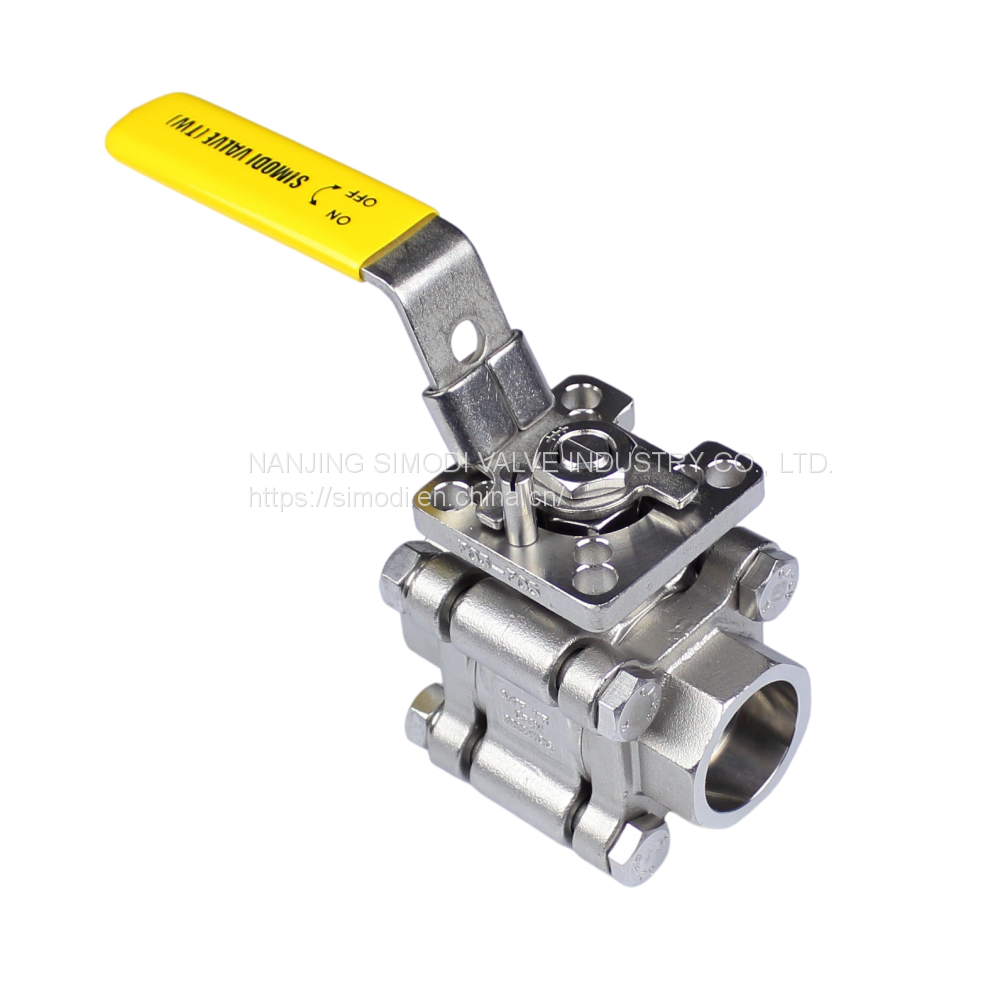

3-PC 2000PSI SOCKET WELD END ISO 5211 DIRECT MOUNTING PAD CF8M BALL VALVE
negotiation -
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- shanghai
- T/T L/C
- 60 days
You May Like
Product Details
Brand Name: | SIMODI | Place of Origin: | China | Model Number: | BVB-132DS-001 |
Material: | Stainless Steel | Application: | General | Structure: | Ball |
Standard or Nonstandard: | Standard | Pressure: | Low Pressure | Power: | Manual |
Port Size: | DN8-DN25 | Media: | Oil | Temperature of Media: | Medium Temperature |
Product Description
Product Name | Three piece threaded full bore iso 5211 direct mounting pad ball valve |
Model Number | 3PC Ball Valve |
Pressure | 2000 psi(CWP) for DN8~DN25 1500 psi (CWP) for DN32~DN50 1000 psi(CWP) for DN65~DN100 |
Size Range | DN8 to DN100 |
Type of Port | Full Port |
Wall Thickness | ASME B16.34 |
Material | CF8, CF8M, WCB |
Ball | CF8, CF8M |
Seat | PTFE, RPTFE, PTFE+50%SS, TFM1600, TFM4215 |
Temperature | According to seat material |
Media | Water / Oil / Gas |
Connection | Screw End / Socket Weld / Butt Weld |
Thread confirm to | ANSI B1.20.1, BS21, DIN 259 / 2999 |
Type of thread | NPT, BSPT, BSPP, BSP, PT, DIN2999, DIN259, ISO228 |
Handle sleeve | According to customer requirements |
Features | 1. INVESTMENT CASTING 2. FLOATING BALL 3. BLOW-OUT PROOF STEM 4. LOCKING LEVER HANDLE 5. ANTI-STATIC DEVICE IS AVAILABLE 6. OEM / ODM Product 7. ISO5211 Direct Mounting Pad 8. Thread End / Weld End available |
Quality Inspection | Mill Certificate 3.1 and/or other per your request |
Pressure Test | EN12266 |
Certification | ISO, CE |
Lead Time | Based on the quantity, sample order available |
Terms | EX-WORK, FOB, CIF, C&F |
Payment | T/T, LC Before shipment for first order. |
Place of Origin | China |
Option | API 607 fire safe design |
Details Images
