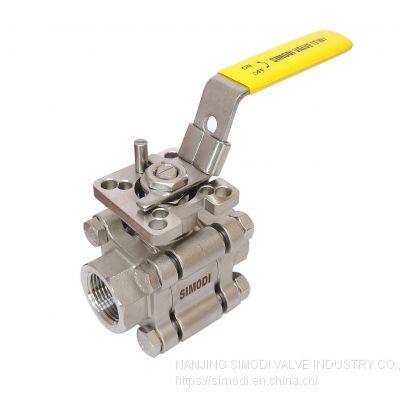

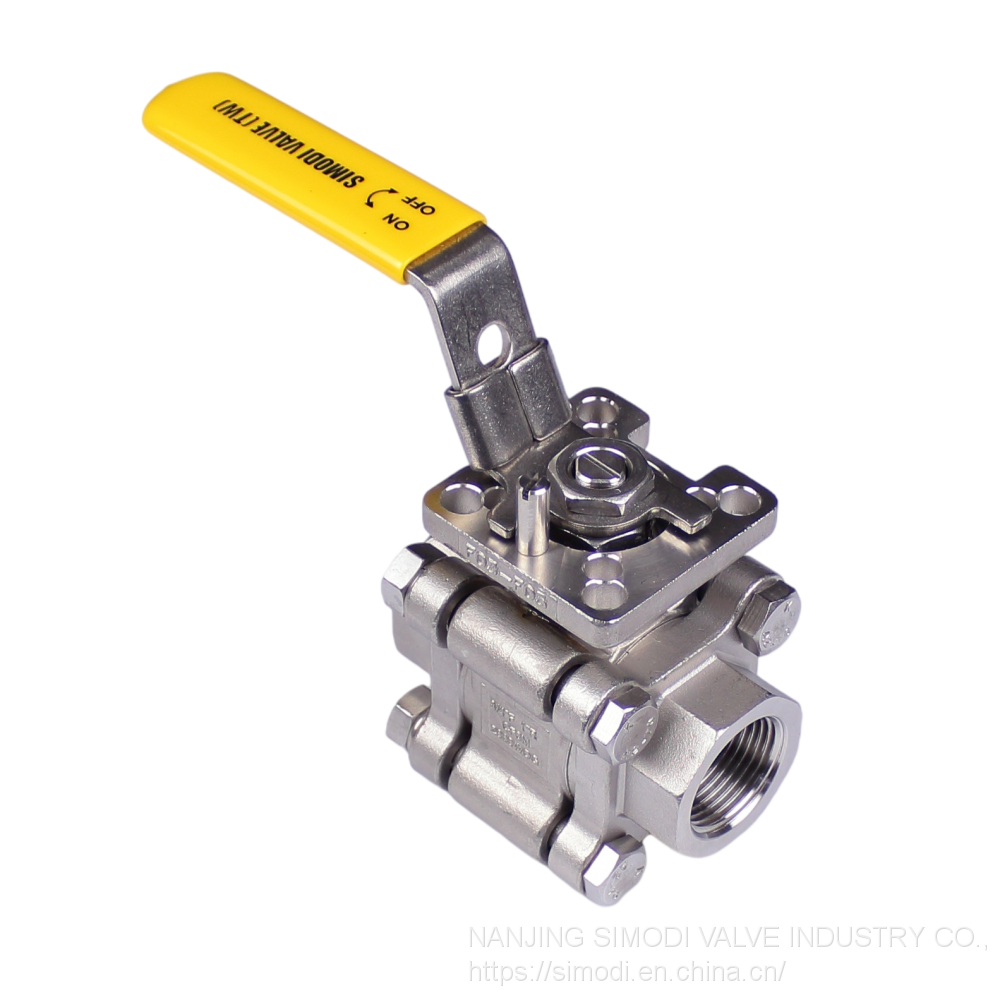

3-pc 2000psi NPT ISO 5211 DIRECT MOUNTING PAD CF8M BALL VALVE

Name: 3-pc 2000psi NPT ISO 5211 DIRECT MOUNTING PAD CF8M BALL VALVE
Brand: SIMODI
Availability: InStock

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product Name	Three piece threaded full bore iso 5211 direct mounting pad ball valve
Model Number	3PC Ball Valve
Pressure	2000 psi（CWP) for DN8~DN25 1500 psi (CWP) for DN32~DN50 1000 psi（CWP) for DN65~DN100
Size Range	DN8 to DN100
Type of Port	Full Port
Wall Thickness	ASME B16.34
Material	CF8, CF8M, WCB
Ball	CF8, CF8M

Seat	PTFE, RPTFE, PTFE+50%SS, TFM1600, TFM4215
Temperature	According to seat material
Media	Water / Oil / Gas
Connection	Screw End / Socket Weld / Butt Weld
Thread confirm to	ANSI B1.20.1, BS21, DIN 259 / 2999
Type of thread	NPT, BSPT, BSPP, BSP, PT, DIN2999, DIN259, ISO228
Handle sleeve	According to customer requirements
Features	1. INVESTMENT CASTING 2. FLOATING BALL 3. BLOW-OUT PROOF STEM 4. LOCKING LEVER HANDLE 5. ANTI-STATIC DEVICE IS AVAILABLE 6. OEM / ODM Product 7. ISO5211 Direct Mounting Pad 8. Thread End / Weld End available
Quality Inspection	Mill Certificate 3.1 and/or other per your request
Pressure Test	EN12266

Certification	ISO, CE
Lead Time	Based on the quantity, sample order available
Terms	EX-WORK, FOB, CIF, C&F
Payment	T/T, LC Before shipment for first order.
Place of Origin	China
Option	API 607 fire safe design

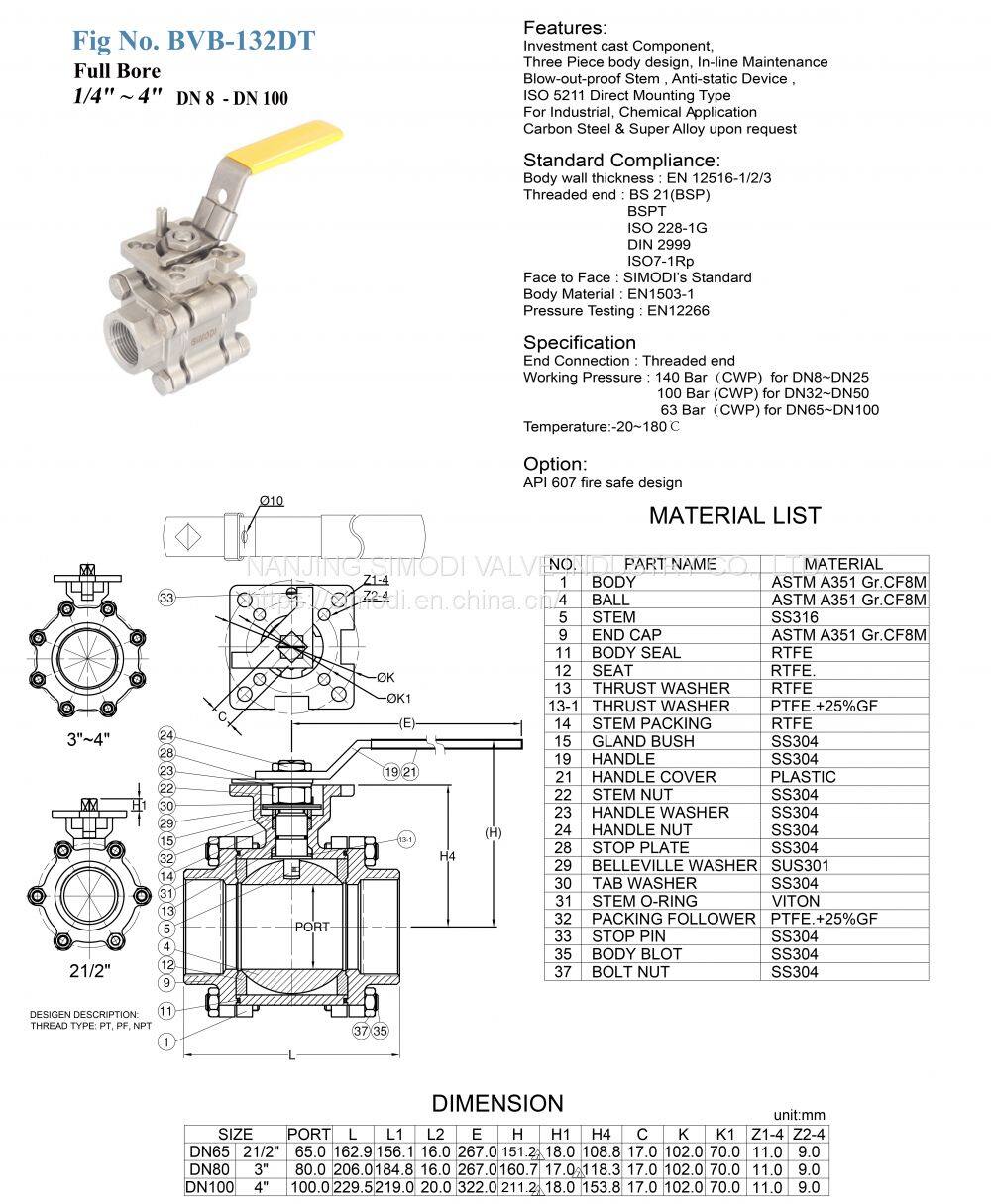

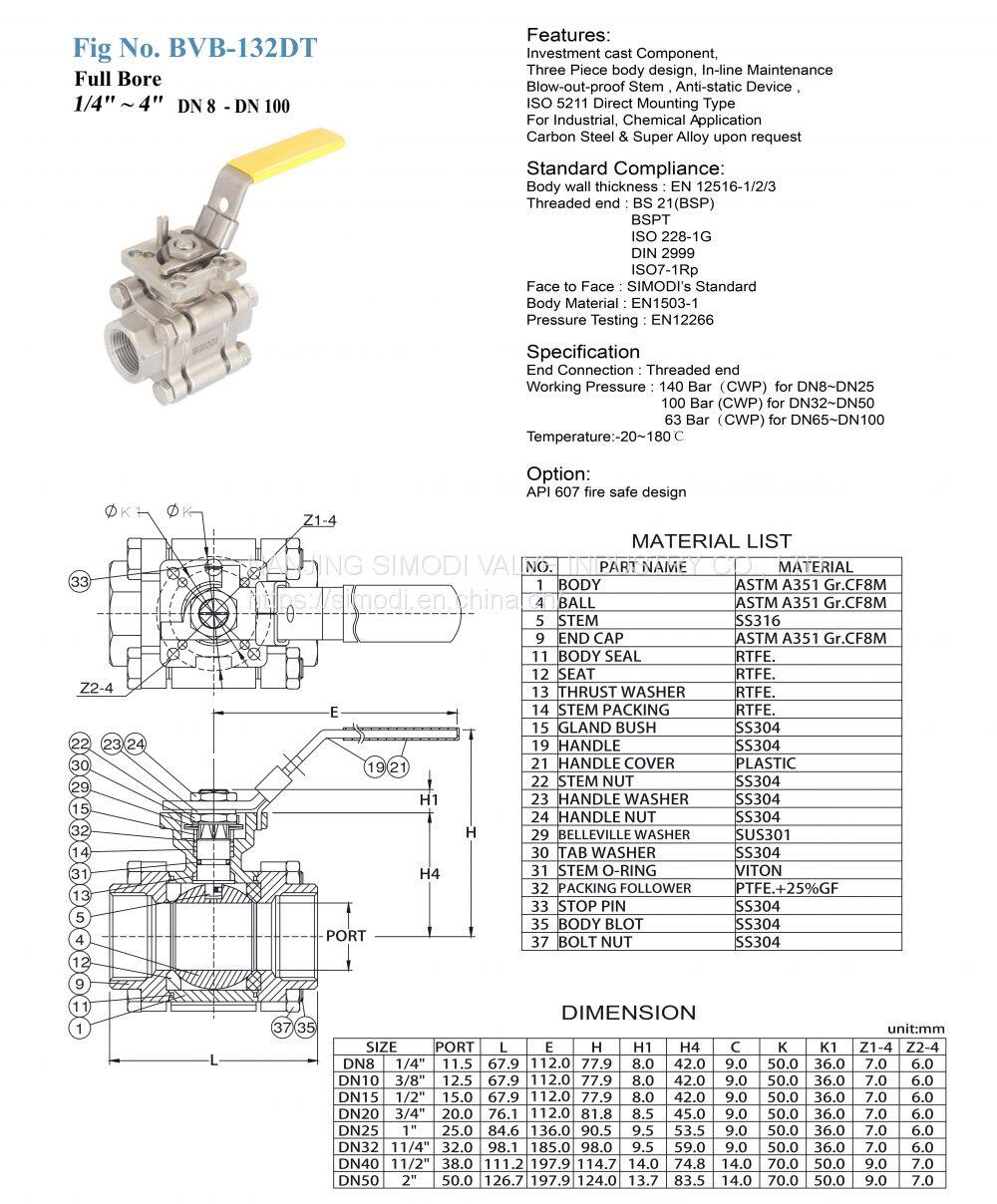

Details Images
