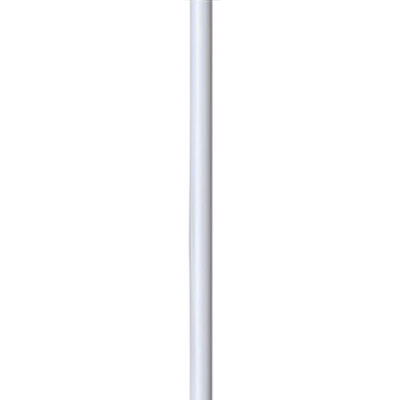

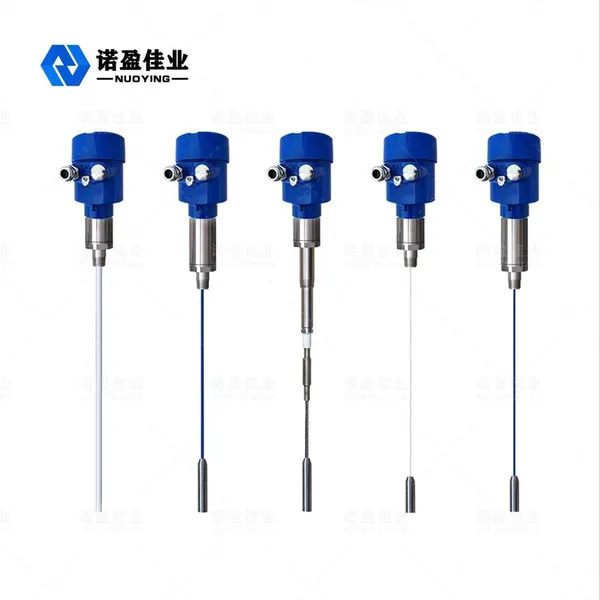

High Sensitivity RF Admittance Level Meter For Petrochemical Coal Metallurgy Water Industry
RF Admittance Level Meter Anit-Hanging Material interference Operating Principle
RF Admittance Level Meter is a continuously level measuring instrument based on the principle of radio frequency admittance. It provides the advantages of high stability and sensitivity. It is widely used in various complex applications. Comparing to traditional capacitive level meter, it adopts modulization design, and can be easily set up. After installation, it can keep working without maintenance.
Further more, by adding Driving-Shield and chopper circuit in RF Admittance tech, it can actualize separate measurement of impedance and capacitance. In this way, RF Admittance Level Meter can avoid being misguiding by hanging material affects during measurement process. That ensures the measuring accuracy.
RF Admittance Level Meter design feature
Anti Hanging Material: Special designed Driving- Shield and chopper circuit to improve the ability of anti-hanging material situation.
Power Supply: Working range 13~24V DC
Adaptability: Probe process temperature: -100℃~800℃
No dead zone in measuring. Maximum measurement range up to 100 meters, or further, even several hundred meters.Huge advantage in measuring sticky material level.
Stability: Reliable and Stable output, withstand the effects of dust, blanking, steam, crystallization and wax deposit.
Maintenance Free: No moving and wear parts, no need to be frequently cleaned, maintained or debugged.
| Typical Application | Liquid (Corrosive,Conductive, Electrodeionization Sticky, Deep Well, Ultra-long measurement range) Split installation |
| Product Model | NYSP-Z16 |
| Antenna Type | Insulative Hard Rod (PTFE optional) |
| Antenna Material | PTFE, 304, 316 |
| Measuring Range | 3m, 20m (customized) |
| Measuring Accuracy | 0.05% ~0.1%F.S |
| Process Temperature | -40 ~ +260°C |
| Process Presure | -0.1 ~ 4.0MPa |
| Process Connection | 3/4”BSPT Strew Thread, Flange (optional) |
| Electrical Interface | M20 x 1.5, 1/2" NPT |
| Supply Power | 24VDC |
| Signal Output | 4-20 mA /HART/RS485/Modbus |
| Protection Grade | IP67 |
| Explosion-proof Grade | Exia II CT6 (optional, details in certificate) |
Note: Products can be customized upon requirement.
