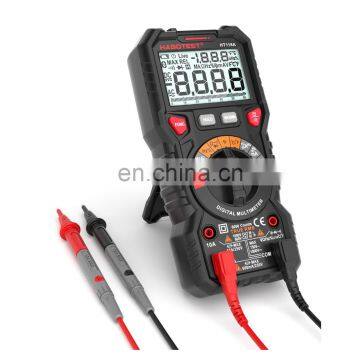

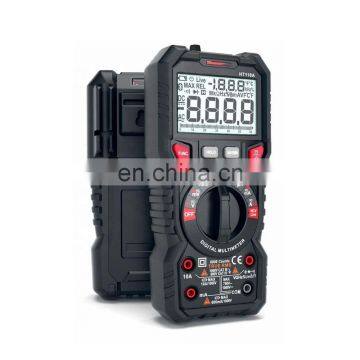

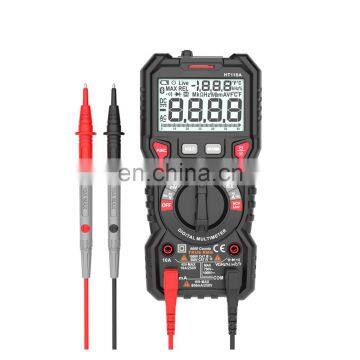

HT-118A 6000 Counts Digital Multimeter T-RMS/Autorange Multimeter Smart Chip Multimeter Digital
6000 Counts Digital Multimeter WIth T-RMS/Autorange
product feature
-fully automatic measurement
-large dual backlight diaplay with 6000 counts
-voltege measurement
-up to 10MHz frequency detection
-Auto power of
-low battery indication
-double color backlight
-the data hold
|
Specifications |
Range |
Accuracy |
|
|
|
HT118A |
|
DC Voltage |
600mV |
±(0.5%+3) |
|
|
6V/60V/600V/1000V |
±(0.5%+3) |
|
AC Voltage |
600mV |
±(1.0%+5) |
|
|
6V/60V/600V/750V |
±(1.0%+5) |
|
DC Current |
600uA/6000uA/60mA/600mA |
±(0.8%+3) |
|
|
6A/10A |
±(1.2%+3) |
|
AC Current |
600uA/6000uA/60mA/600mA |
±(1.0%+3) |
|
|
6A/10A |
±(1.5%+3) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+3) |
|
Capacitance |
10nF/100nF/1uF/10uF/100uF/1mF/10mF |
±(4.0%+3) |
|
|
100mF |
±(5.0%+5) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(1.0%+3) |
|
Duty |
1%~99% |
±(1.0%+2) |
|
Temperature(℃/℉) |
-40℃~1000℃ |
±(1.0%+3) |
|
|
-40℉~1832℉ |
±(1.0%+3) |
|
Counts |
6000 Counts |
|
|
Auto/Manual range |
Auto |
|
|
Display |
LCD dual display |
|

Packing & Delivery

-Do we support OEM or ODM?
-Will the original R&D manufacturing paint have a price advantage?
-Are you products high quality products?
-Do we have a good team?
-Does our product support global after-sales service ?
-Are our product certified?
every answer is "YES"
