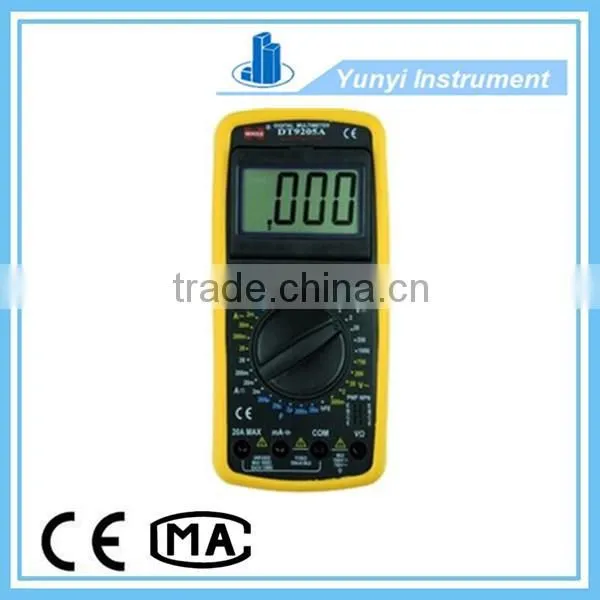

digital multimeter dt9205a

Name: digital multimeter dt9205a
Brand: Yunyi
Availability: InStock

FOB Price

USD $10.2 - $89.2 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	Yunyi
Model Number	dt9205a	Measuring Current Range	DC Current: 2m-20m-200m-20A± 1.8%
Measuring Voltage Range	DC voltage: 200m-2-20-200-1000V ± 0.5%	Measuring Resistance Range	200-2K-20K-200K-2M-20M-200MΩ ± 1.0%
Measuring Capacitance Range	20n-200n-2u-20uF-200uF ± 4.0%	Dimensions	190 90 33mm

Packaging Details

digital multimeter dt9205a Standard packing(or according to the customer request)

Product Description

Specifications

digital multimeter dt9205a
1 professional manufacturer
2 quick shipment
3 CE certification

Digital multimeter dt9205a

Features:

1 Screen angle can be adjusted, large screen display.
2 3 1/2 digit LCD screen, the maximum display value 1999
3 Capacitance measurement
4 Data hold function
5 Low-voltage symbol display
6 Overload
7 Diode test
8 Transistor test
9 Continuity measurement (beeper)
10 Automatic shutdown
11 Screen view angle can be adjusted

Technical data:

1 [Function] ------- [range] ------- [Accuracy]
DC voltage: 200m-2-20-200-1000V ± 0.5%
AC voltage: 200m-2-20-200-750V ± 1.0%
DC Current: 2m-20m-200m-20A ± 1.8%
AC current: 2m-20m-200m-20A ± 2.0%
2 Resistance: 200-2K-20K-200K-2M-20M-200MΩ ± 1.0%
3 Capacitance: 20n-200n-2u-20uF-200uF ± 4.0%
4 Power supply: 6F22 9V battery type
5 Maximum Display: 1999
6 Weight: 227g
7 Dimensions: 190 × 90 × 33mm

Standard configuration: bare table (with batteries), table pen, Chinese instructions, jacket, warranty card, box
