Product overview
*3266TC and 3266TD are 33 / 4 4000 count clamp gauges with exquisite appearance, stable and reliable performance, and a full range of automatic range(AUTORANGING),For situations where direct contact measurement is not possible, this product specially provides non-contact (NCV) detection function. This product is a green environmental protection product with intelligent automatic shutdown, and is equipped with portable strap, which is easy to use. 3266td is a cost-effective product with the functions of temperature, frequency and capacitance measurement. It is praised by the market as a comprehensive instrument integrating pincer meter, multimeter, thermometer, frequency meter, capacitance pen and non-contact electric measuring pen. It is a special soldier in the instrument. According to the statistics of online sales platforms such as Taobao, the sales volume of this table ranks the top three, and has begun to export a large number to the international market.
*It is widely used in families, schools, decoration, electricians, electronics, information, communication, petroleum, chemical industry, maintenance and other industries.
Technical indicators
| basic function | range | Maximum resolution | Basic accuracy |
| AC current(ACA) | 40A/600A | 10mA | ±(2.5%+5) |
| AC voltage(ACV) | 400mA/4V/40V/400V/600V | 0.1mV | ±(0.8%+5) |
| DC voltage(DCV) | 4V/40V/400V/600V | 0.1mV | ±(1.2%+5) |
| resistance(Ω) | 400/4K/40K/400K/4M/40M | 0.1Ω | ±(1.2%+5) |
Special functions
| Auto Range | √ | ||
| True effective value(TRUE RMS) | √ | ||
| Backlight / Lighting | √ | ||
| NCV | √ | ||
| diode | Open circuit voltage 1.9999v | √ | |
| On-off beep | √ | ||
| Low voltage display | √ | ||
| Data retention(HOLD) | √ | ||
| Maximum hold(MAX) | √ | ||
| Automatic shutdown | √ | ||
| overload protection | √ | ||
| Input impedance | ≥10MΩ | √ | |
| sampling frequency | 3 times / S | √ | |
| Maximum display | 3999 | √ | |
| Jaws open | 25mm | √ | |
General characteristics
| body color | Iron grey + Orange | |
| Net weight of fuselage | About 150g(Without battery) | |
| LCD size | 38.4*28.4mm | |
| Fuselage size | 183*47*25mm | |
| Color box size | 214*110*40mm | |
| Battery Specification | 2*1.5V 7# | |
| Standard packaging and accessories | Color box, handheld bag, manual, pen, battery | |
| Standard package quantity | 40 only | |
| Outer box size | 450*435*240mm | |
| Gross weight | About 14kg | |

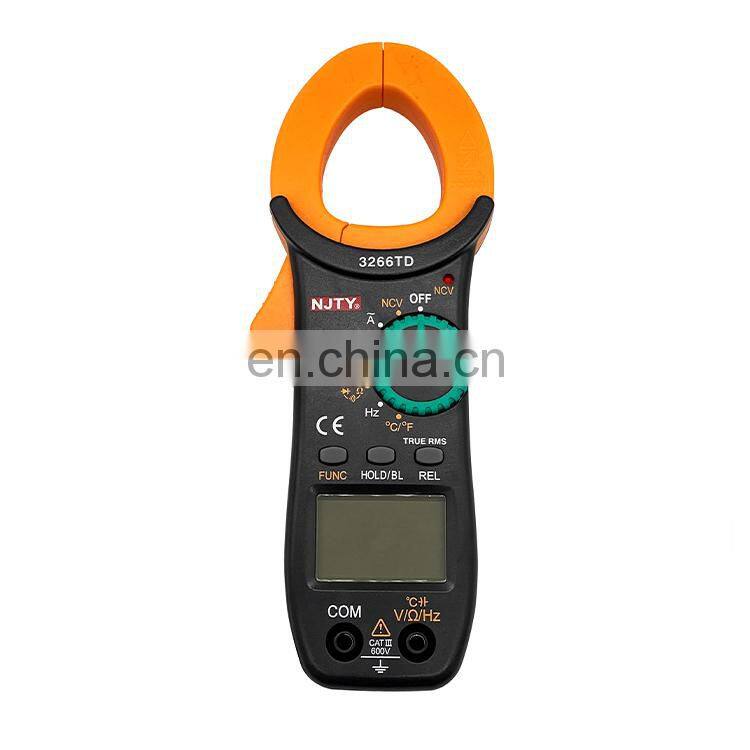

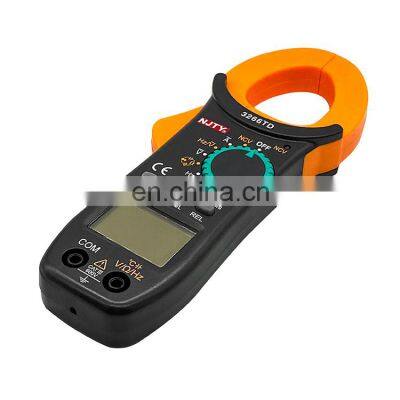

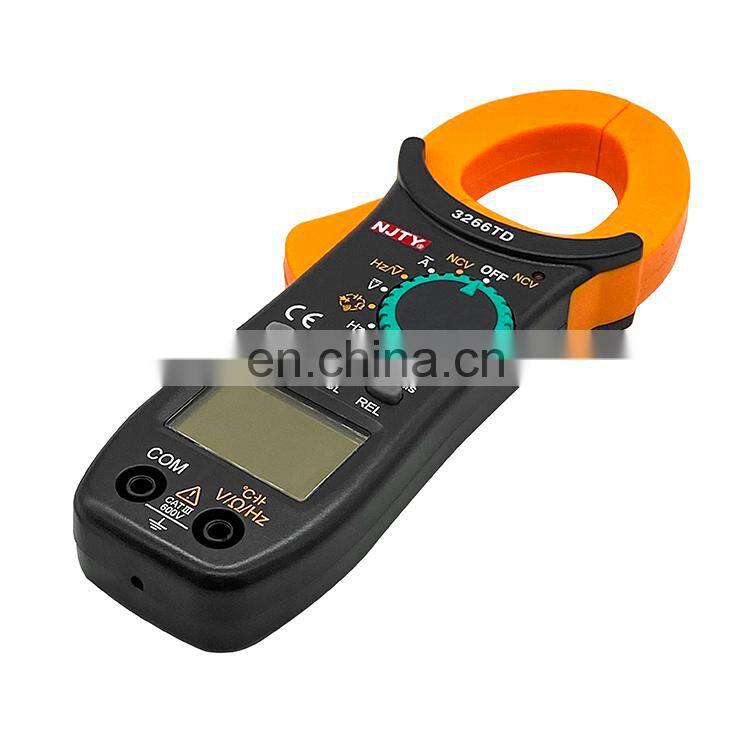

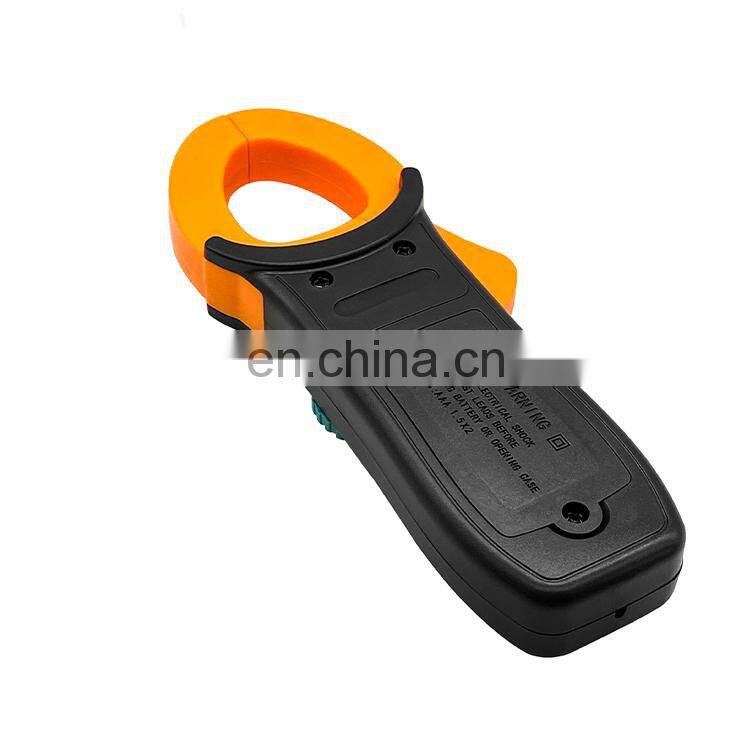

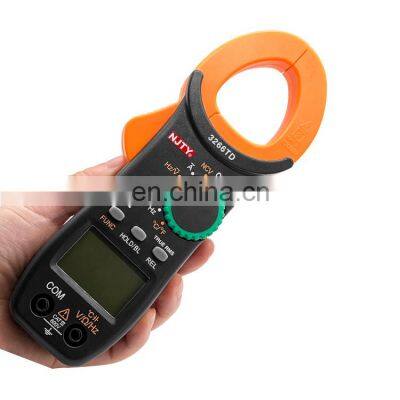

Product display diagram
