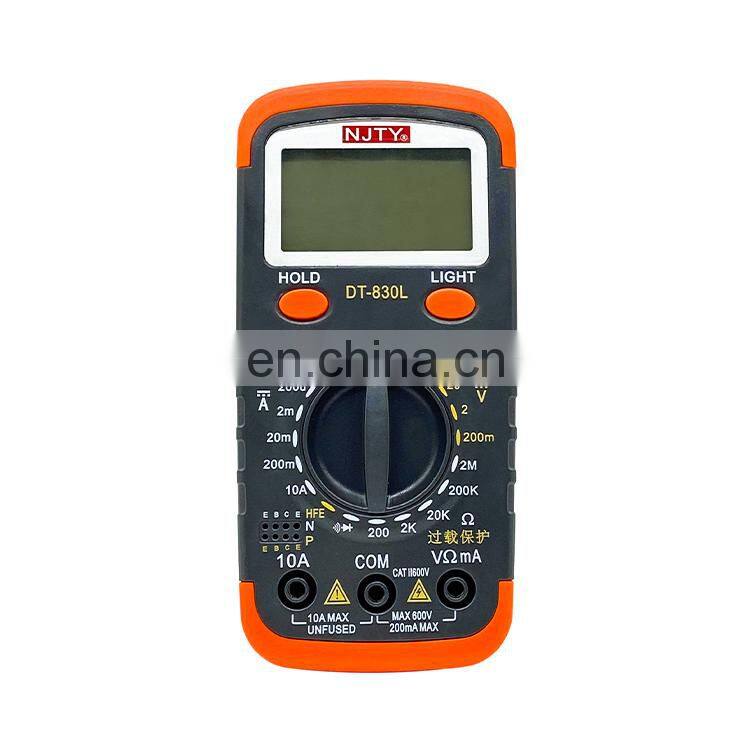

New Multimeter Factory Direct Outlet Digital Multimeter 600V AC Current Intelligent Multimeter
*830L,830C are 3 1 / 2 2000 count hand-held digital multimeter with small shape, stable and reliable performance, anti drop function and self recovery overload protection circuit. 830c has the function of temperature measurement. The whole series has backlight function, which is convenient for users to use in dark places.
*830z is a 3 / 4 4000 count handheld digital multimeter with small shape, stable and reliable performance and anti drop function. The meter is an automatic measuring range (AUTO RANGING), equipped with self recovery overload protection circuit, which makes it a tool instrument with superior performance. With backlight function, it is convenient for users to use in dark places.
*It is widely used in families, schools, decoration, electricians, electronics, information, communication, petroleum, chemical industry, maintenance and other industries.
Technical indicators
| basic function | range | Maximum resolution | Basic accuracy |
| Direct current(DCA) | 200 µ A | 100nA | ±(1.5%+2) |
| 2mA/20mA/200mA | 1 µ A | ±(1.5%+2) | |
| 10A | 10mA | ±(3%+2) | |
| 40mA/400mA | 10 µ A | - | |
| 10A | 10mA | - | |
| AC current(ACA) | 40mA/400mA | 10 µ A | - |
| 10A | 10mA | - | |
| AC voltage(ACV) | 200V/600V | 0.1mV | ±(1.2%+10) |
| 4V/40V/400V/600V | 1mV | - | |
| DC voltage(DCV) | 200mV/2V/20V/200V/600V | 0.1mV | ±(0.8%+5) |
| 400mV/4V/40V/400V/600V | - | ||
| DC resistance(Ω) | R*200/R*2K/ R*20K/R*200K/R*2M |
0.1Ω | ±(1%+3) |
| R*400/R*4K/R*40K/ R*400K/R*4M/R*40M |
- | ||
| temperature(℃) | -20℃ - +1000℃ | 1℃ | - |
| frequency(Hz) | 40/400/4K/40K/4M/20M | 0.01Hz | - |
| capacitance | 40nF/400nF/4 µ F /40 µ F/100 µ F |
0.01nF | - |
Special functions
| Diode detection | √ | ||
| Conduction test | √ | ||
| Triode test | √ | ||
| Low voltage display | √ | ||
| Data retention | √ | ||
| Negative polarity display | √ | ||
| Backlight | √ | ||
| sampling frequency | 3 times / S | √ | |
| Operation mode | manual range | √ | |
| Maximum display | 1999 | √ | |
| Input impedance | 1 MΩ | ||
| Self recovery protection | √ | ||
General characteristics
| body color | Iron grey+Orange red | |
| Net weight of fuselage | About 150g | |
| LCD size | 53*33mm | |
| Fuselage size | 147*70*35mm | |
| Color box size | 160*105*45mm | |
| Battery Specification | 1*9V | |
| Standard packaging and accessories | Color box, probe, temperature probe, battery, instruction manual | |
| Standard package quantity | 80only | |
| Outer box size | 480*350*450mm | |
| Gross weight | About 22kg | |
Product display diagram
