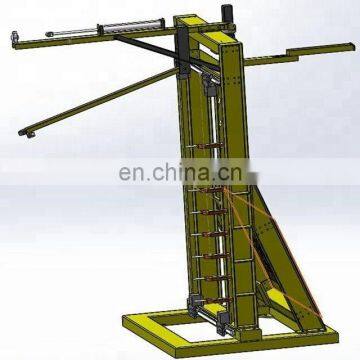

Robustness Terminations Testing Equipment/Solar Panel Damage Testing Machine / Testing Apparatus for PV Module

Measuring the the adhesion of terminals and the modules whether withstand normal force under installation and operation or not

Apparatus Comprise

Consist of Rack, handpiece, control box

1.Rack made of aluminum alloy assembled into a test platform ,and use the middle of the chute and right angle connectors from aluminium alloy extrusions ,fixed the modules on the platform conveniently ,also installed the headpiece and control box in the rack

 2.Headpiece :for installing motor, reducer, limit switch

 3.Control box :equipped control switch, digital delay meter, digital meter count

 4.Control system

Brief description

1.Complete the specified distortion times automatically

 2. Digital display the times of distortion

 3.set Pause time at 0°,90°,180°arbitrary

Technical Parameters

 1.Torsion test :one end of the conduit designed for manual knob,so as junction box and conduit installations revolution around the central axis within 1 minute according to the standard

 2.Rack dimension :2100mm*1600mm*760mm

 3.Speed of head :10S per semi-cycle

4.Installation about Module : chuck fastening ,be capable of a maximum area 2000mm*1500mm

 5.Wire tension ;reached 0.5-4kg through hanging heavy mound

 6.Gross weight:50kg
7.Power supply: Single phase AC220V±5% 0.5A
