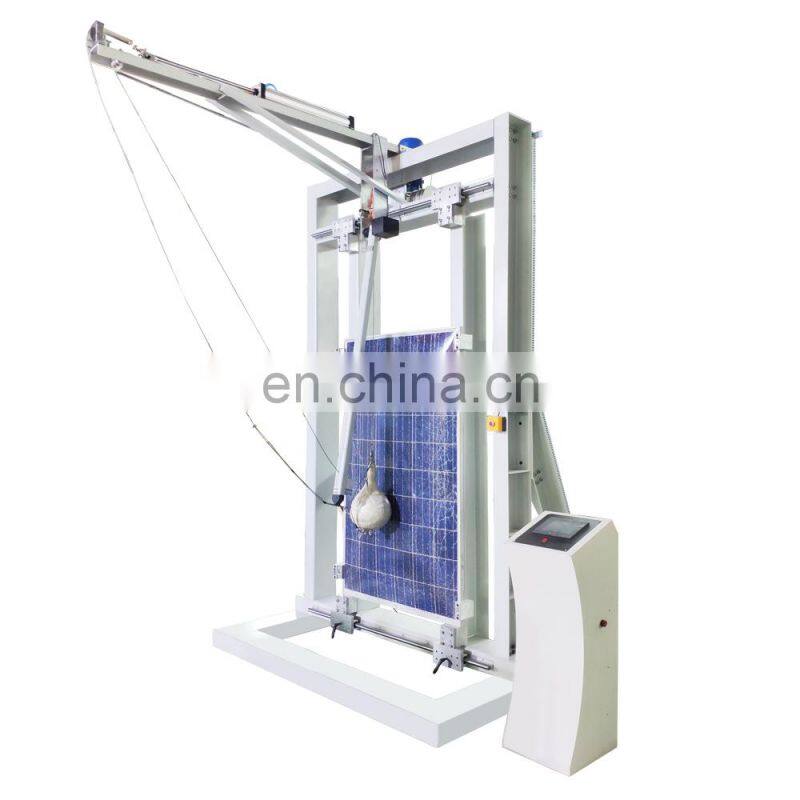

Module Breakage Testing Machine/Tempering glass testing machine /Solar panel testing machine for IEC61730 testing standard
Standard
According to IEC61730-2004, JJG 128-1999
Purpose
This test is provide confidence that cutting or piercing injuries can be minimized if the module is broken
The Main Technical
| Product Name | Module breakage testing machine/tempering glass testing machine/solar panel testing machine for IEC61730 testing standard |
| Testing standard | IEC61730-2:2016 |
| Testing sample | PV Module , Tempering glass |
| Impact height | 300mm~1220mm |
| Impact sample size | 2000mm×1000mm (customized) |
| The inner dimension of test sample | According to customer's pv module size requirement |
| Sample frame material | Chnnel wideth≥100mm, thickness 3mm |
| The mass of impactor | 45.5±0.5kg |
| Inner filling diameter pellets | 2.5-3.0mm |
| Protection device | Protection frame |
| Electricity | 220V 50HZ |
