Product Description

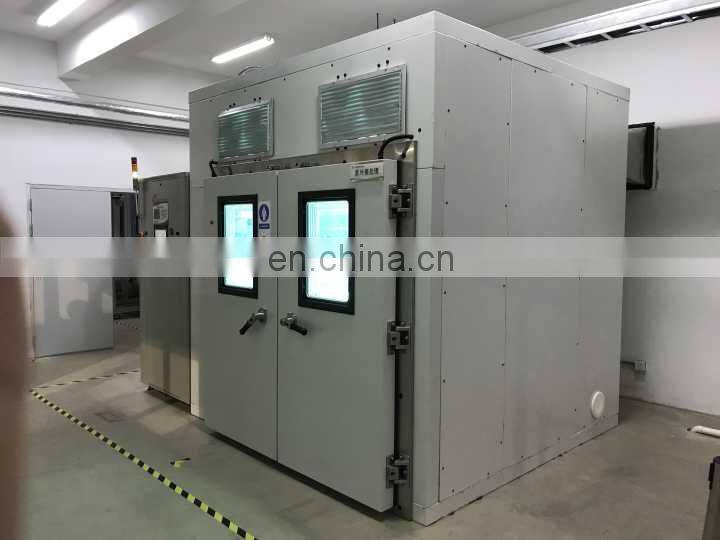

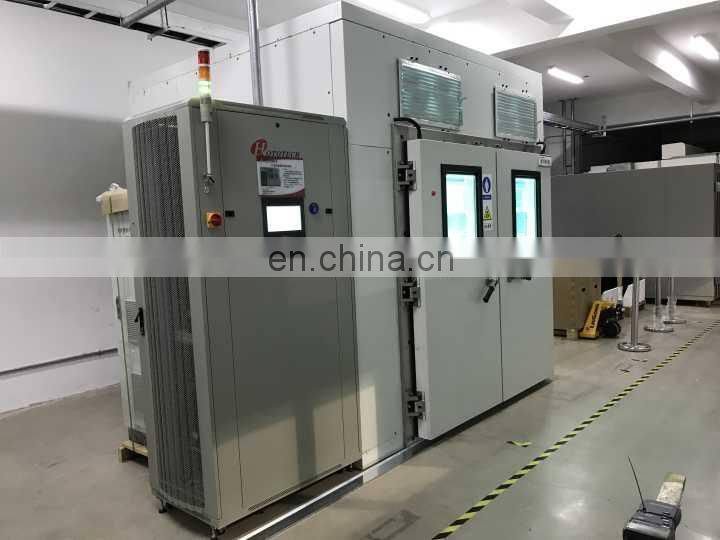

UV aging Climatic Chamber/ UV age environment testing chamber/Solar panel testing machine with IEC61215 testing
Testing standard
It's conform IEC61215-2:2016 & IEC61730-2:2016 testing standard requirement
Purpose
to precondition the module with ultra-violet (UV) radiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible to UV degradation
The Main Technical Specifications
|
The Chamber material |
completely obstruct ultraviolet rays,tightness,good thermal insulation’s high quality materials |
| Machine UV total irradiation area | 2000mm×2000mm (2 pcs ) , can customized |
| Light source life | Approx 2000 hours |
| Lamp brand | Honle(Germany import) |
| Single lamp UVA and UVA relative energy rate | UVB approx occupy total energy 3%~10% |
| Irradiance uniformity | be better than ±15% |
| Monitor data | Real-time monitor and show UVA and UVB strength |
| UVA wavelength | 320nm~400nm |
| UVB wavelength | 280~320nm |
| Module surface temperature | 60℃±5℃ |
|
Temperature resolution |
0.1℃ |
|
Ozone |
almost no ozone is produced |
|
Light ways |
upper light, module test plane vertical light source |
| Control ways | Touch screen control |
| Electricity | 3 phase 380V 60HZ |
Customer Site requirement
|
NO |
Item |
Requirement |
|
1 |
Placed dimension |
Approx 3000mm×4000mm×2000mm (D×W×H) |
|
2 |
Weight |
Approx 1.5 ton |
|
3 |
Compressor air requirement |
without |
|
4 |
Power requirement |
3 phase 380V 60HZ |
|
5 |
Gruond requirement |
Ground line connect to the ground |
|
6 |
Area requirement |
Flat |
|
7 |
Envirnoment requirement |
20℃±2%,humidity 50%~70%, no noise , Shockproof, non-magnetic interference |
|
8 |
Power |
35KW |
Testing procedrue
1,Using the calibrated radiameter measure the irradiance at the proposed module test plane and ensure that at wavelength between 280nm and 400nm it does not exceed 250W/M2 (i.e. about five times the natural sunlight level) and that it has a uniformity of ±15% over the test plane
2,Short-circuit or attach the resistive load to the module and mount it in the test plane at the location selected , normal to the UV irradiance beam. Make sure that the module temperature sensors read 65±5℃
3,Subject the modules front side to a total UV irradiation of at least 15 KW/m2 in the wavelength range between 280nm and 400nm with at least 3%, but not more than 10% in the wavelength band between 280nm and 320nm , while maintaining the module temperature within the prescribed range
